120D BURNISHER/GRINDER/SANDER/POLISHER
4
Operations
Note
THOROUGHLY READ THROUGH THE ENTIRE MANUAL BEFORE OPERATING THIS MACHINE!
PURPOSE
Ø The purpose of the 120D is to sand, grind, burnish and polish a variety of surfaces from wood to steel.
Ø This machine uses a round barrel type sanding head, which allows for use on flat and round surfaces. This
increases the sanding surface area making for a faster more uniform surface treatment.
Ø The main round machine shaft rotates in a forward direction (when holding the machine by the main
handle). The motor connects to the main barrel.

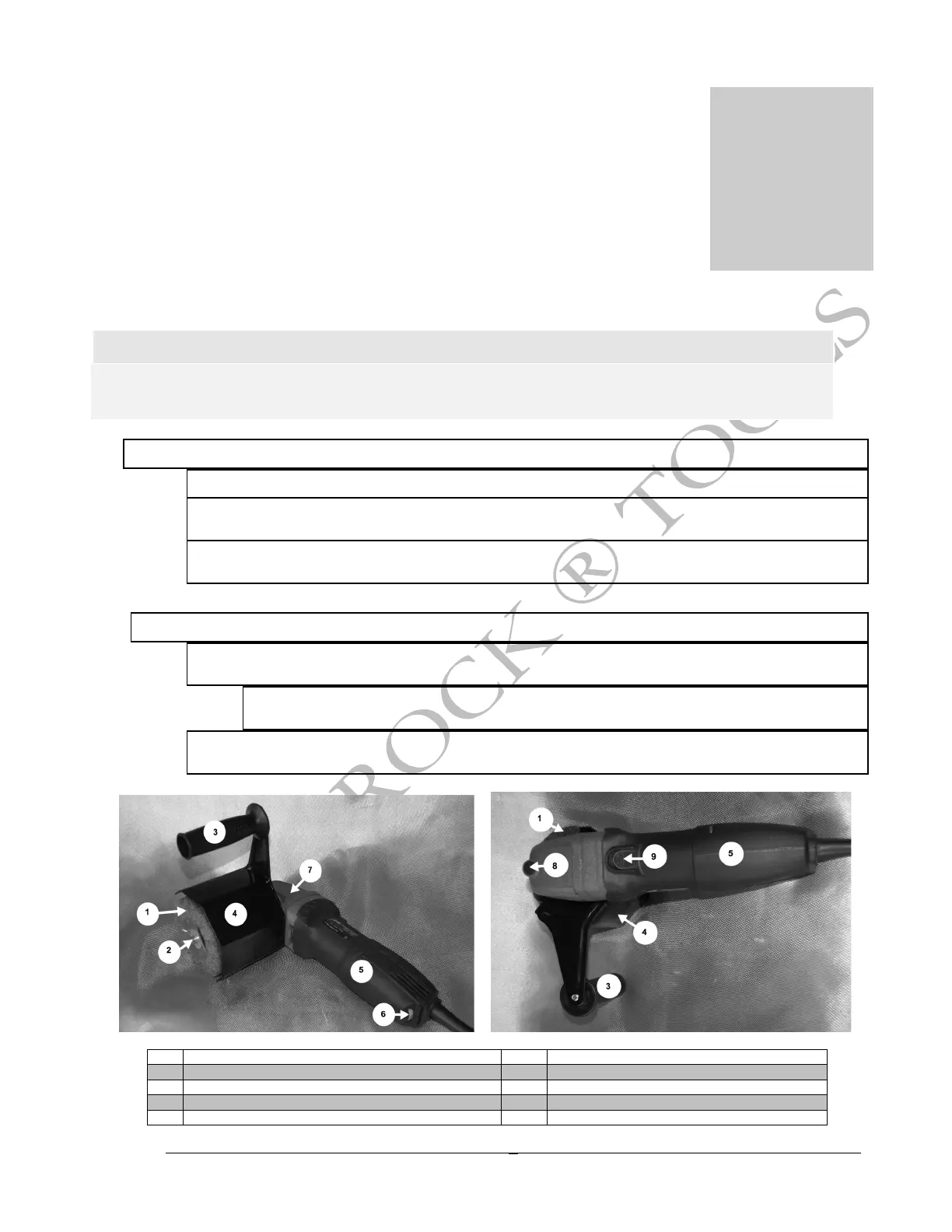

MACHINE COMPONENTS
Ø The main components of the 120D are the barrel, gearbox, motor, housing and main handle and secondary
handle. The barrel is driven by the gearbox and the motor.
o These components must be not be removed except by a qualified technician. Power must be
disconnected prior to any service.
Ø The machine has a variable speed switch located on the main handle by the power cord base. This switch
has numbers signifying low (1) to high (6) speeds.
1)
Sanding Barrel
6)
Variable Speed Switch
2)
Barrel Bolt
7)
Gearbox
3)
Secondary Handle
8)
Lock for Barrel Bolt
4)
Metal Guard
9)
On/Off Switch
5)
Main Handle
