Bluerock Tools 808 series - Page 8

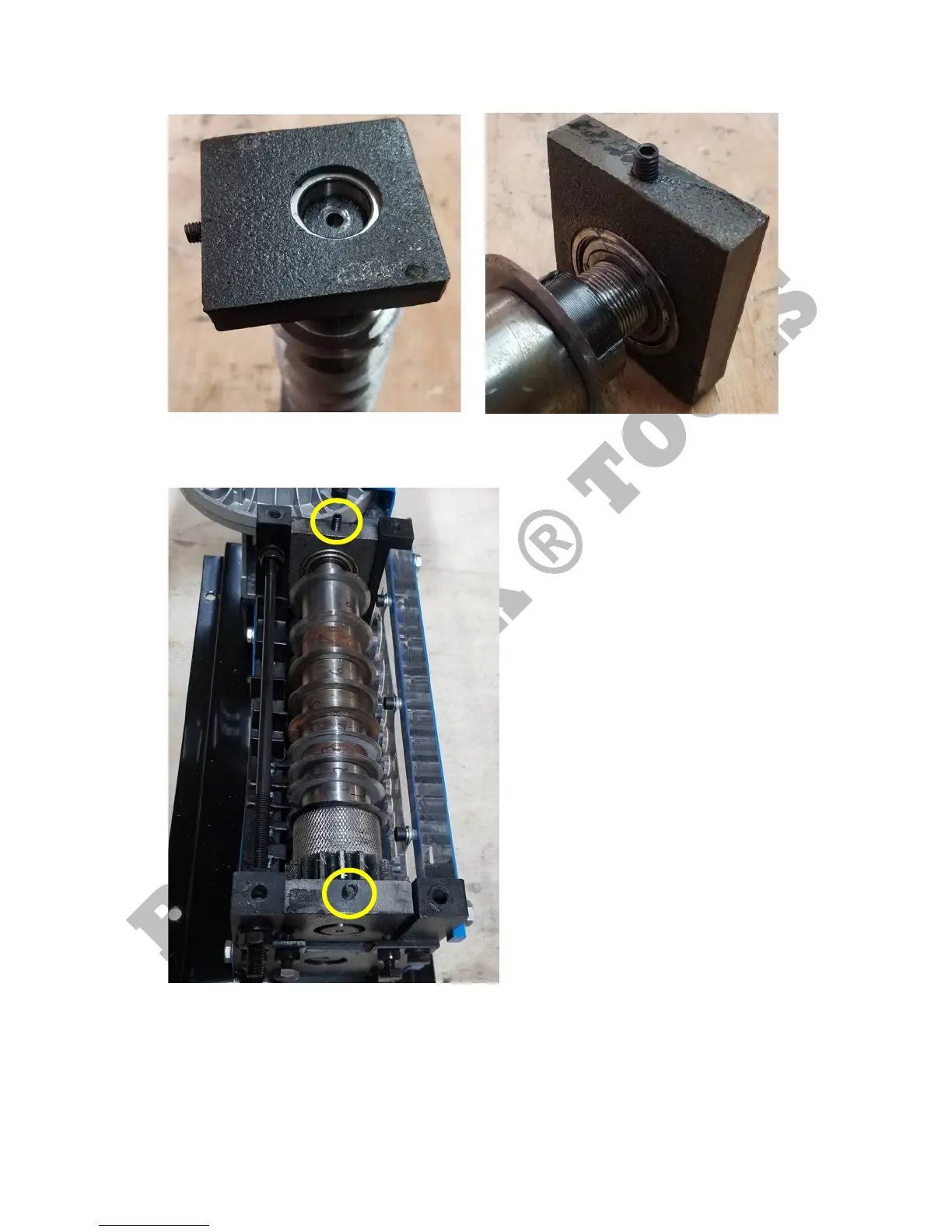

17. Very carefully set the upper blade roller into the machine. Important: Be sure the set
screws are facing up as shown.
18. Set the top cover in place with 2 flat brackets 4 spacer tubes aligned under it. Insert 4
bolts through the holes in the top cover as shown and use a 17mm wrench to tighten.
