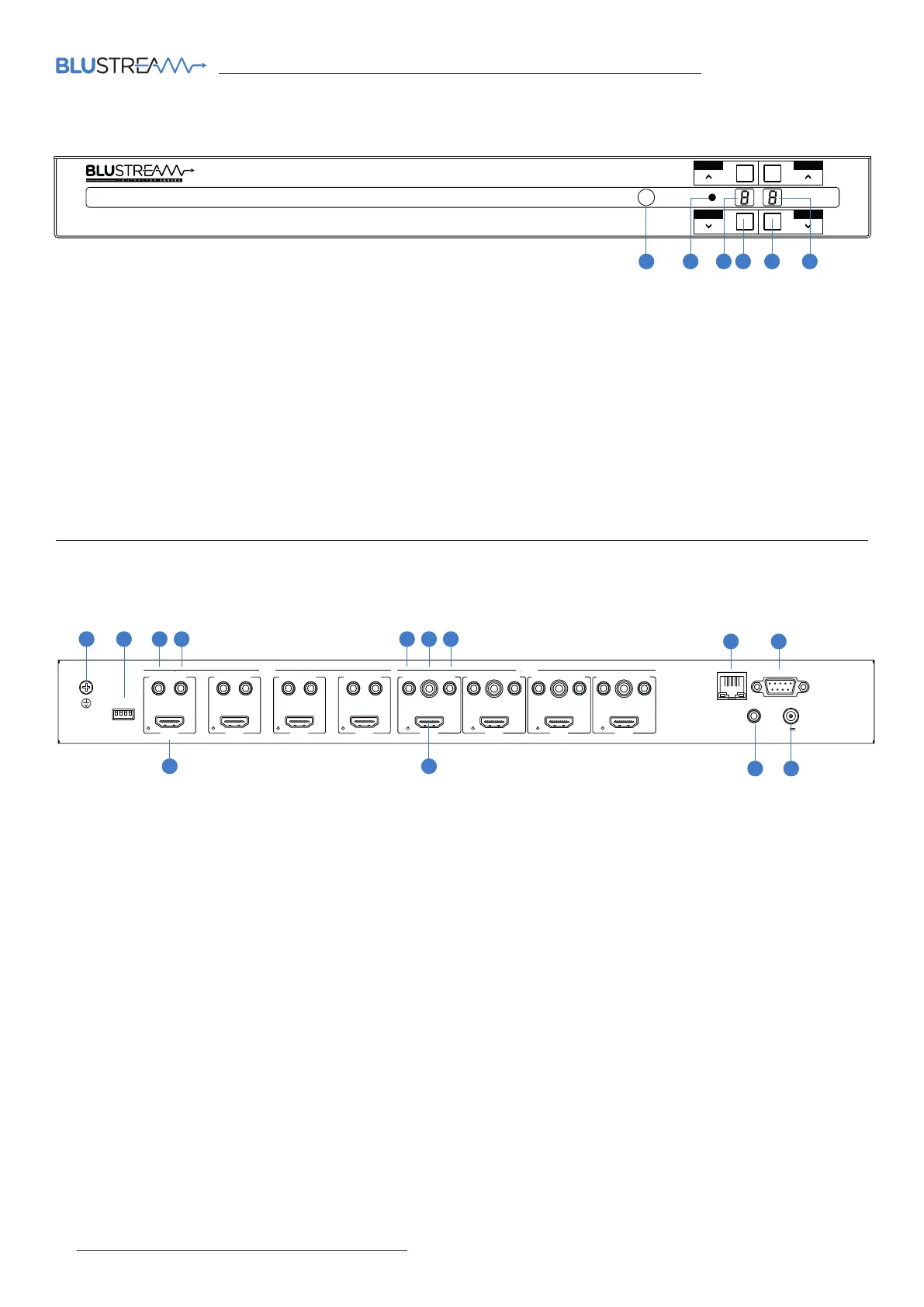

Front Panel Description
1 IR Receiver - Built in IR sensor for IR control
2 Status LED - Illimunates blue when matrix is in standby mode and flashes when IR command is received
3 Output LCD - Shows the currently selected output
4 Output Up / Down Button - Press to adjust the selected output up or down
Press and hold Output Up button for PTP mode (In 1 to Out 1, In 2 to Out 2, In 3 to Out 4, In 4 to Out 4)
5 Input Up / Down Button - Press to adjust the selected input up or down
Press and hold Input Up button for 3 seconds to power the matrix o
6 Input LCD - Shows the currently selected input
1 Ground Screw - Chassis ground connection
2 EDID DIP switch – Used for global EDID settings
3 IR Emitter Output - 3.5mm mono connector to connect to Blustream IR emitter. Used for local source control
4 Analogue L/R Audio Input - 3.5mm stereo connector allows audio to be embedded over HDMI input signal
5 IR Receiver Input - 3.5mm stereo connector to connect to Blustream IR receiver or 3rd party control processor
6 Coaxial Digital Audio Output - RCA (S/PDIF)
7 Analogue L/R Audio Output - 3.5mm stereo connector with fixed line level output. Supports 2 channel PCM audio
formats only
8 TCP/IP - RJ45 connector for TCP/IP and web-GUI control of the matrix
9 RS-232 - DB9 connector for RS-232 control of the matrix
q HDMI Inputs - Connect to source devices
w HDMI Outputs - Connect to display devices
e IR Control Input - 3.5mm stereo connector to connect to Blustream IR receiver for IR control of the matrix
r Power Port - Use included 12V/2A DC power adaptor
