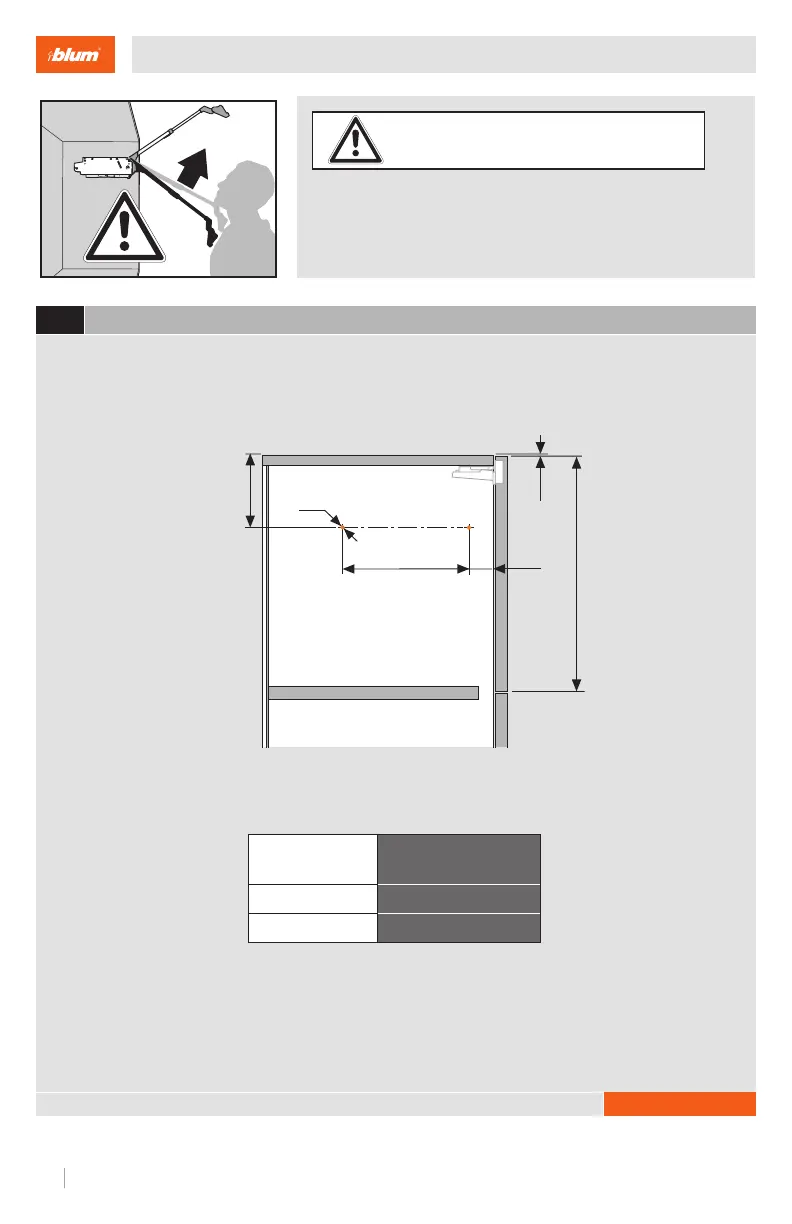

Subject to technical modifications without notice. © 2021
2
Part no. 
65.1051.02
192
Y
37
Top door height
TR
Ø5
TR = Top reveal
TDH = Top door ht.
 Top door hei ght  
 (TDH)
Y
231 to 271
TDH
x
.6
-
28
+
TR
272 to 531
TDH
x
.6
-
57
+
TR
  Universal individu al templ ate is available for pre-boring holes for locating pins.
1
Locating pin locations
Assembly
WARNING
Risk of injury fro m spring-loaded arm
 ▀ Do n ot push arm assembly down or leave in th e down position.
 ▀ Remove mechanism before installing or removing cabinet.
