BLUM AVENTOS HF Assembly Instructions

3
Dimensions in millimeters (inch equivalents as noted) © 2021
WARNING: Risk of injury from spring loaded arm.
Attach telescopic arms by clipping them
on in the fully upright position.
2

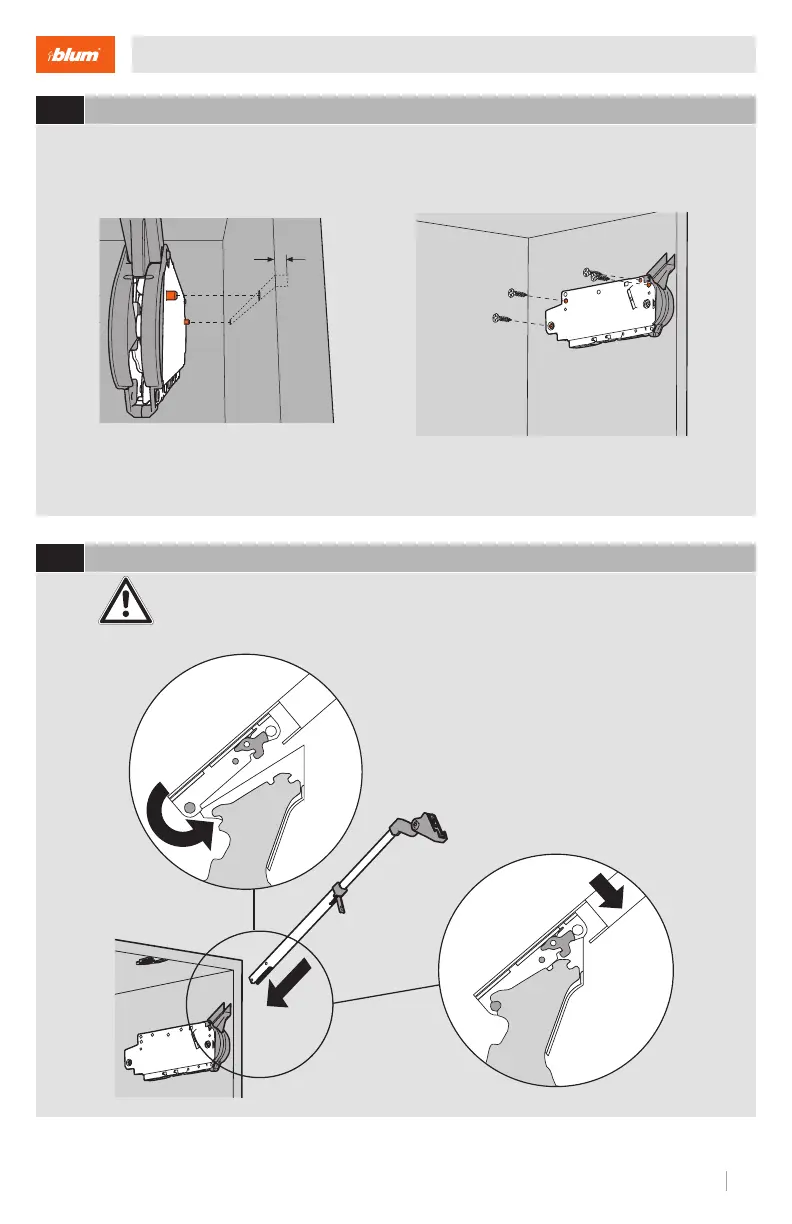

Attach the lift mechanism
3
Attach the telescopic arms
Align the two locating pins on the l ift mechanism with the two Ø5 x 5 holes bored in the side of
cabinet, and attach the mech anism with the five wood screws pr o vided.
#7 x 35 mm (1-3/8") wood screws (qty 4)
5 min.
Ø5
Assembly

BLUM AVENTOS HF Specifications

General

Type	Bi-fold lift system
Cabinet Width	Up to 1800 mm
Soft Close	Yes
Adjustment	3-dimensional front adjustment
Application	Wall cabinet
Motion Technology	BLUMOTION, TIP-ON, SERVO-DRIVE
Material	Steel
Assembly	Tool-free assembly
Cabinet Height	480 mm to 1040 mm
Opening Angle	90°
