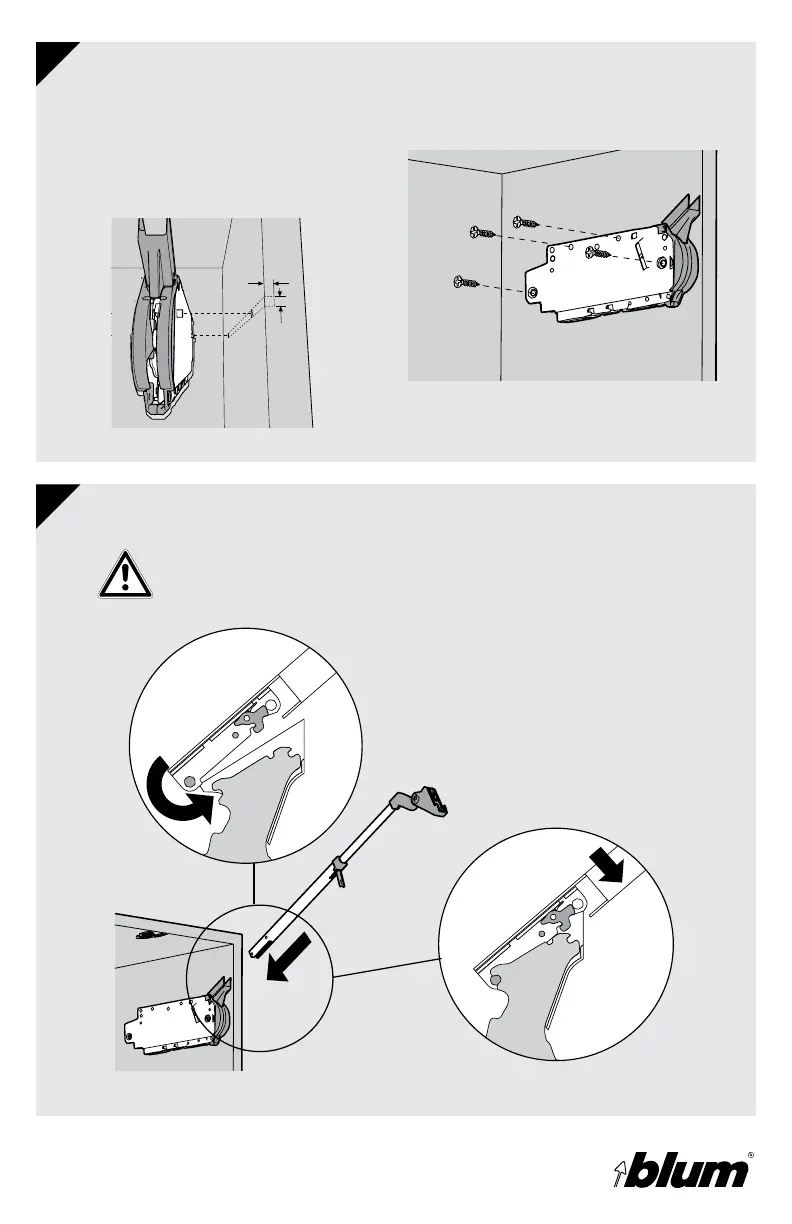

Attaching the lift mechanism
Align the lift mechanism in the cabinet
using the 5mm locator pins and attach
the mechanism with the four mounting
screws provided.
4 x wood screws #7 x 35mm (1-3/8“)
3
Attach the telescopic arms
WARNING: Risk of injury from spring loaded arm.
1
2
Attach telescopic arms by clipping
them on in the fully upright position.
NJO
