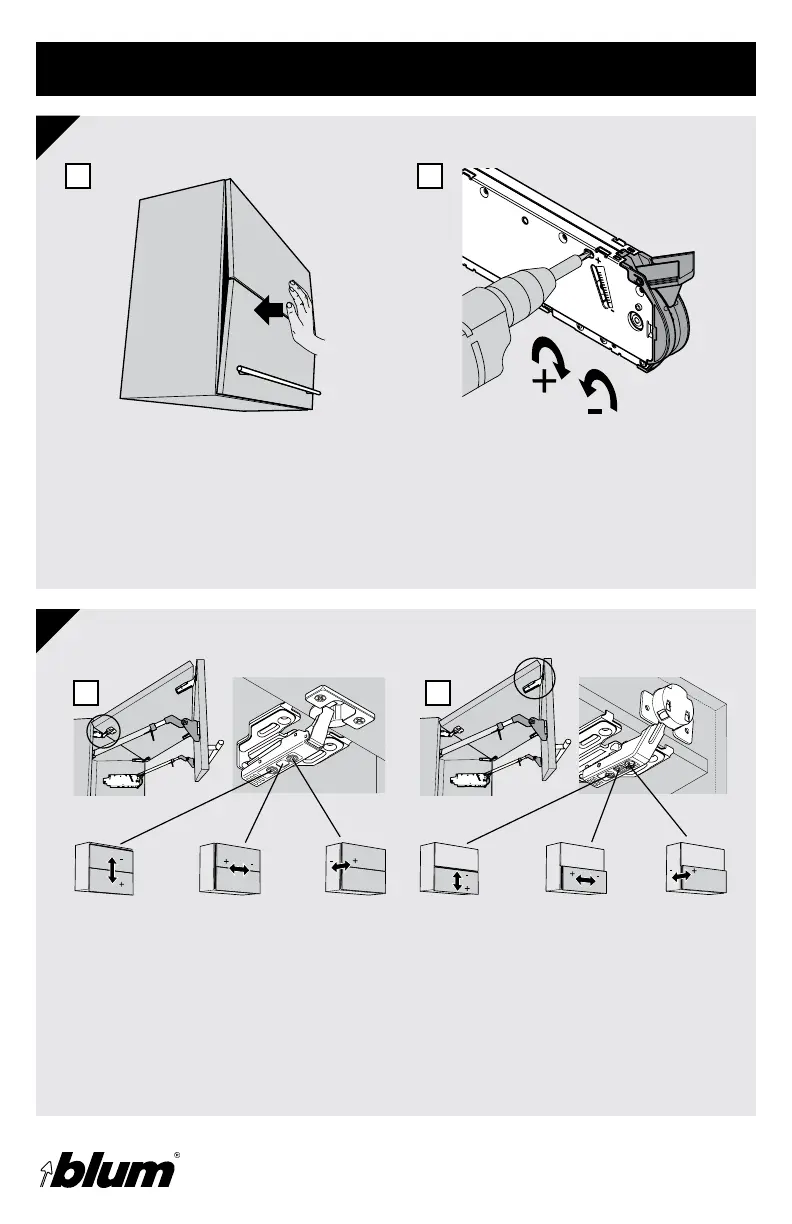

Assembly

Finalizing the door adjustments
1. Adjust each top door hinge and
mounting plate to properly align the
top door to the cabinet.
2. Adjust each bottom door hinge and
mounting plate to properly align doors
to the cabinet and to the top door.
± 2 mm± 2.5 mm ± 2 mm± 2 mm± 3 mm + 3/- 2 mm
 
Adjust tension of the mechanism

Close and ush doors to cabinet. Open and close door to test closing force.
Use a screw gun and the supplied #2x2 POZI driver bit to adjust the lift
mechanism to the desired tension. Test door again and repeat until desired
function is achieved.
Tension adjustment should be the same on both lift mechanisms.

Although not illustrated here, telescopic arm mounting plates can also be adjusted
horizontally ± 2 mm if needed.

BLUM AVENTOS HF Specifications

General

Type	Bi-fold lift system
Cabinet Width	Up to 1800 mm
Soft Close	Yes
Adjustment	3-dimensional front adjustment
Application	Wall cabinet
Motion Technology	BLUMOTION, TIP-ON, SERVO-DRIVE
Material	Steel
Assembly	Tool-free assembly
Cabinet Height	480 mm to 1040 mm
Opening Angle	90°
