BLUM AVENTOS HF Quick Guide

Lift & Flap Systems
DRAWERS, HINGES & ASSEMBLY DEVICES
C.42
Drawers, Hinges & Assembly Devices
C
Dimension data and specifications may change without notification.
AVENTOS HF, HS, HL, HK

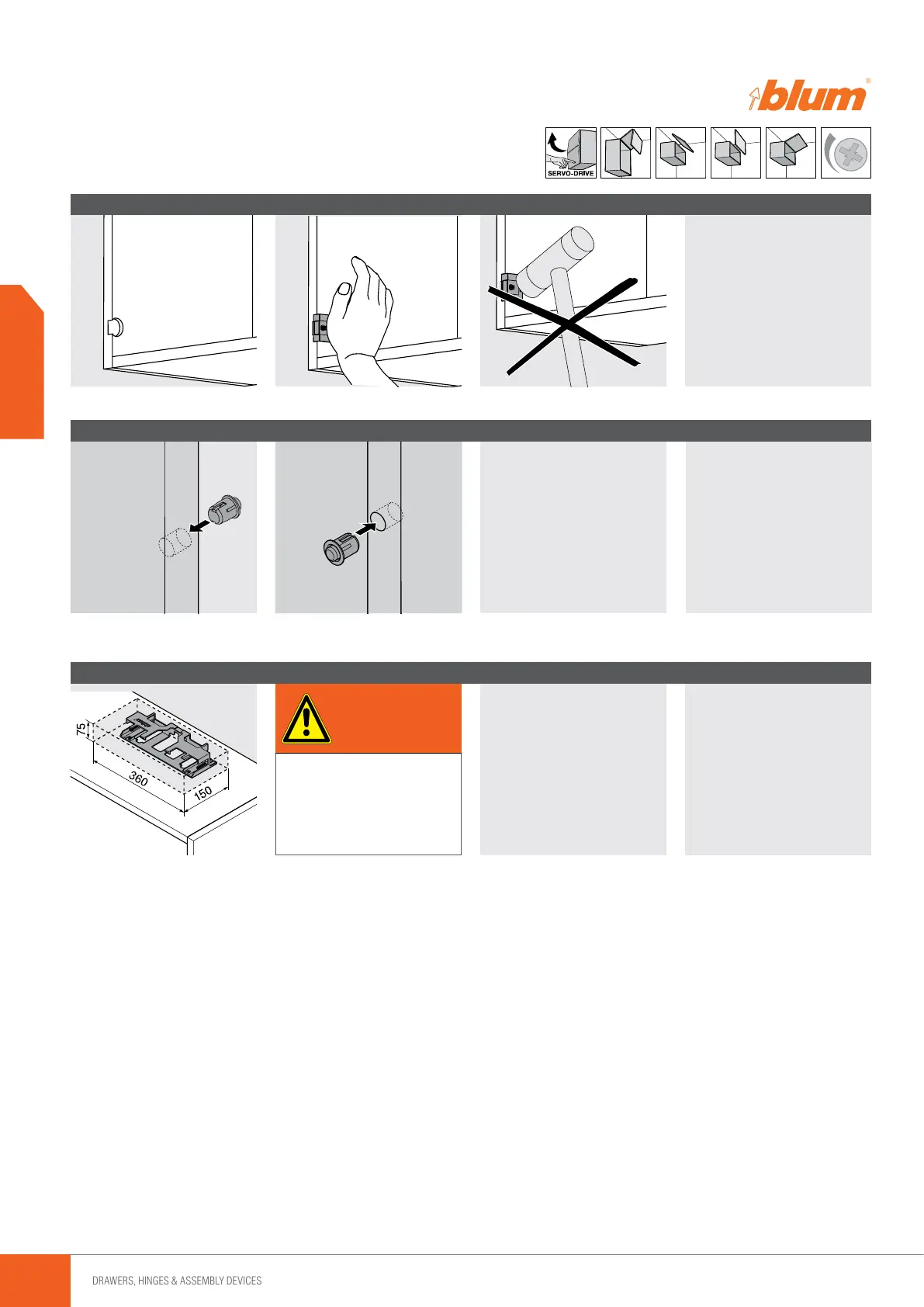

Assembly, removal and adjustment – SERVO-DRIVE
SERVO-DRIVE switch
Assembly
Blum distance bumper
Installation in the front Aluminium frame: installation in the
cabinet side
Insert Blum distance bumper (do
not glue)
The Blum distance bumper may not
touch the SERVO-DRIVE-switch
Space requirement and safety distance
WARNING
A safety distance of 30 mm must
be maintained for air circulation
(see graphic); otherwise, there is
a risk that the Blum transformer
could overheat

BLUM AVENTOS HF Specifications

General

Type	Bi-fold lift system
Cabinet Width	Up to 1800 mm
Soft Close	Yes
Adjustment	3-dimensional front adjustment
Application	Wall cabinet
Motion Technology	BLUMOTION, TIP-ON, SERVO-DRIVE
Material	Steel
Assembly	Tool-free assembly
Cabinet Height	480 mm to 1040 mm
Opening Angle	90°
