BLUM AVENTOS HF

Subject to technical modifications without notice. © 2018
4
4

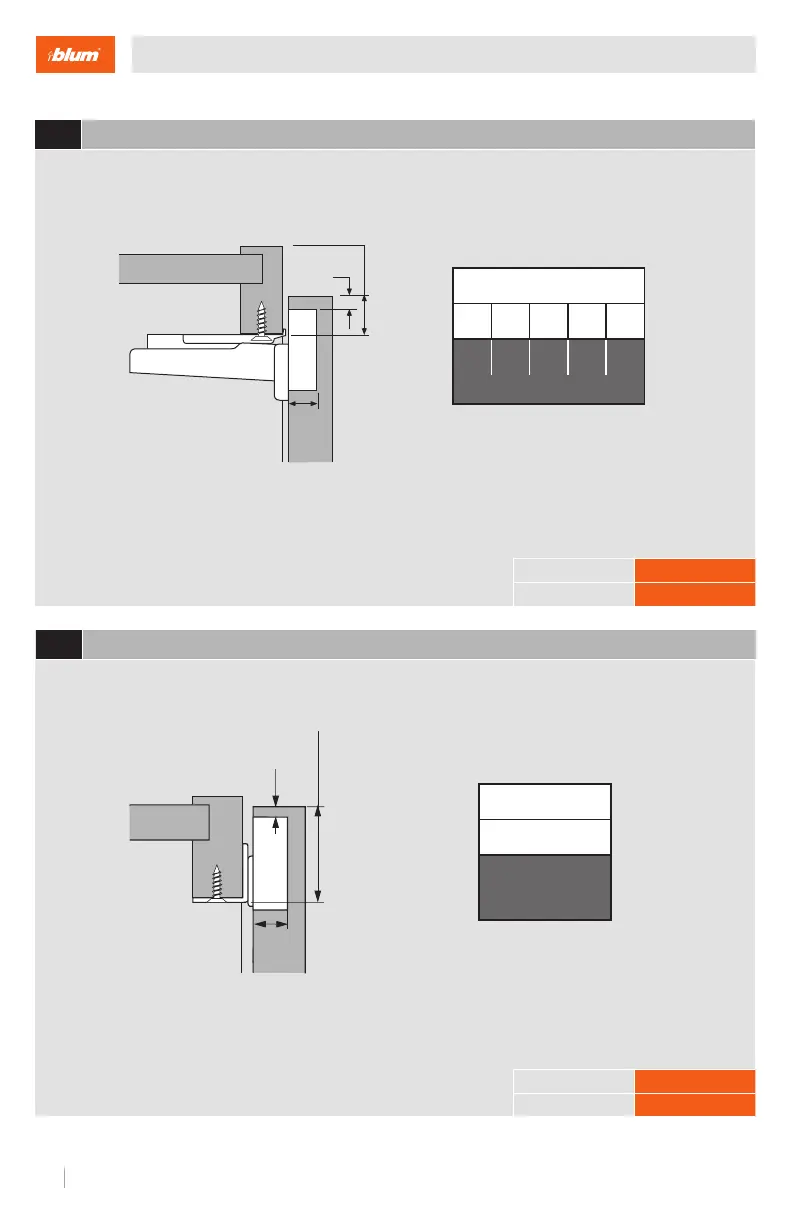

Small overlay top door hinge planning CLIP top hinges
5
Large overlay top door hinge planning COMPACT hinges
B
overlay
12.7
overlay
B
1/2"
Part no.
CLIP top hinge
70T558 0.TL
Mounting plate
175H6000
Part no.
COMPACT hinge
32.4630
Mounting plate
130.1130.02
Overlay table
13 * 14 15 16 17
3 3 4 5 6
B Bore distance
* Bore at 3 then adjust 1
Overlay table
1-1/4”
3
Bore distance
Assembly
