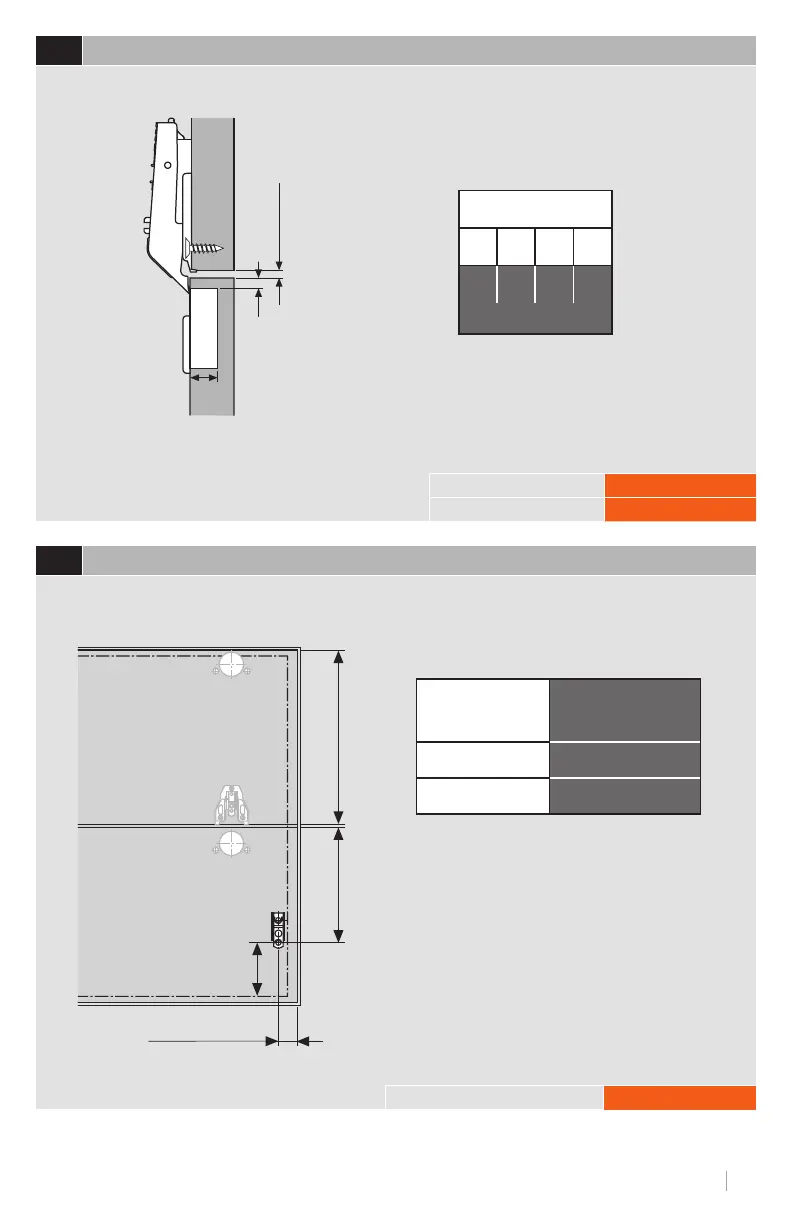

5
Subject to technical modifications without notice. © 2018
reveal
B
12.7
Reveal table
6 5 4 3
3 4 5 6
B Bore distance
Part no.
CLIP top hinge
78Z5530T
Mounting plate
175H6000
6
Bottom door hinge planning
7a
NOTE: For five-piece door mounting
specifications, see page 6
Attaching the telescopic arm mounting plates
12.5
+
Overlay
X
TDH
17
min.
Top door
height (TDH)
X
231 to 271
TDH x .5 + 70
272 to 531
TDH x .5 + 47
Part no.
175H3100
Telescopic arm mounting plate
