BLUM AVENTOS HF User Manual

Subject to technical modifications without notice. © 2018
8
11

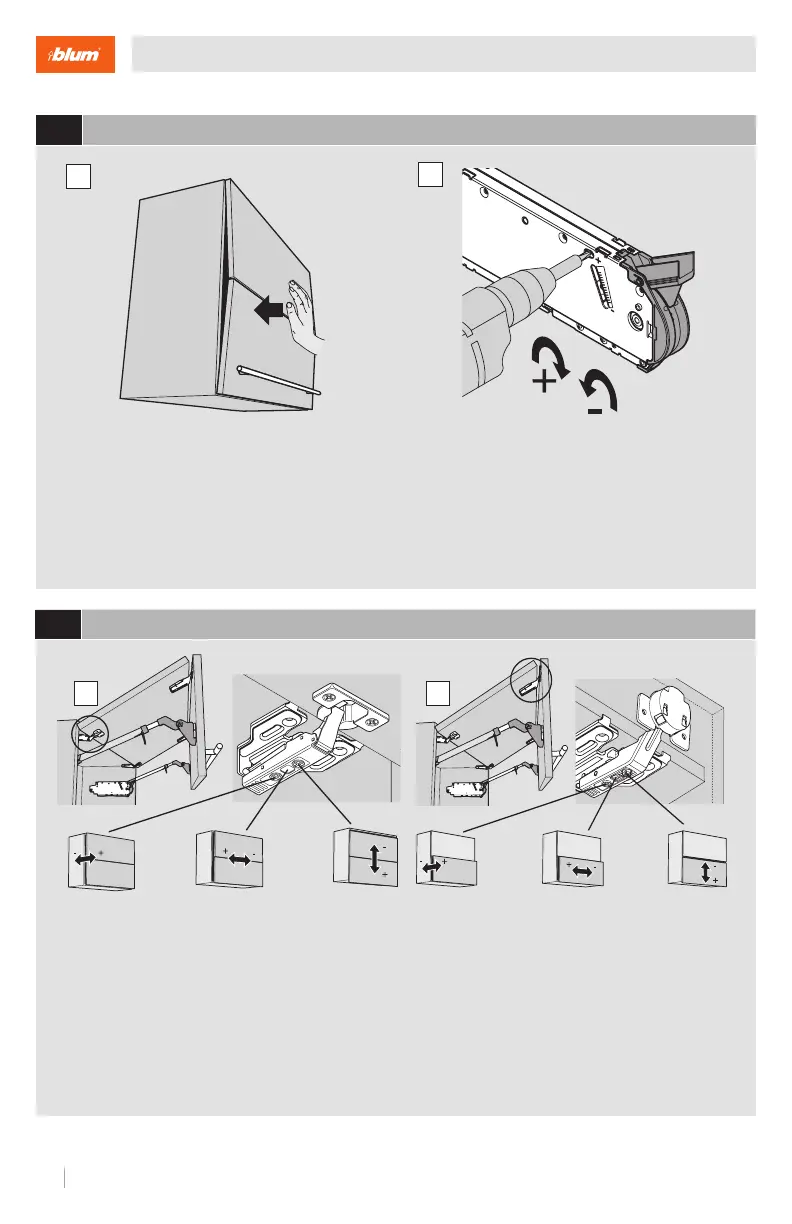

Finalizing the door adjustments
1. Adjust each top door hinge and mounting plate
to properly align the top door to the cabinet.
2. Adjust each bottom door hinge and mounting
plate to properly align doors to the cabinet and
to the top door.
± 2 mm± 2.5 mm ± 2 mm± 2 mm± 3 mm + 3/- 2 mm
1 2
Adjust tension of the mechanism
10
Close and flush doors to cabinet. Open and close door to test closing force. Use a screw gun and the #2x2 POZI
driver bit to adjust the lift mechanism to the desired tension. Test door again and repeat until
desired function is achieved.
Tension adjustment should be the same on both lift mechanisms.
2
1
Although not illustrated here, telescopic arm mounting plates can also be adjusted horizontally ± 2 mm if ne e ded.
Assembly

BLUM AVENTOS HF Specifications

General

Type	Bi-fold lift system
Cabinet Width	Up to 1800 mm
Soft Close	Yes
Adjustment	3-dimensional front adjustment
Application	Wall cabinet
Motion Technology	BLUMOTION, TIP-ON, SERVO-DRIVE
Material	Steel
Assembly	Tool-free assembly
Cabinet Height	480 mm to 1040 mm
Opening Angle	90°
