BLUM MINIPRESS M User Manual

10 BA-100/1EN M52.XXXX

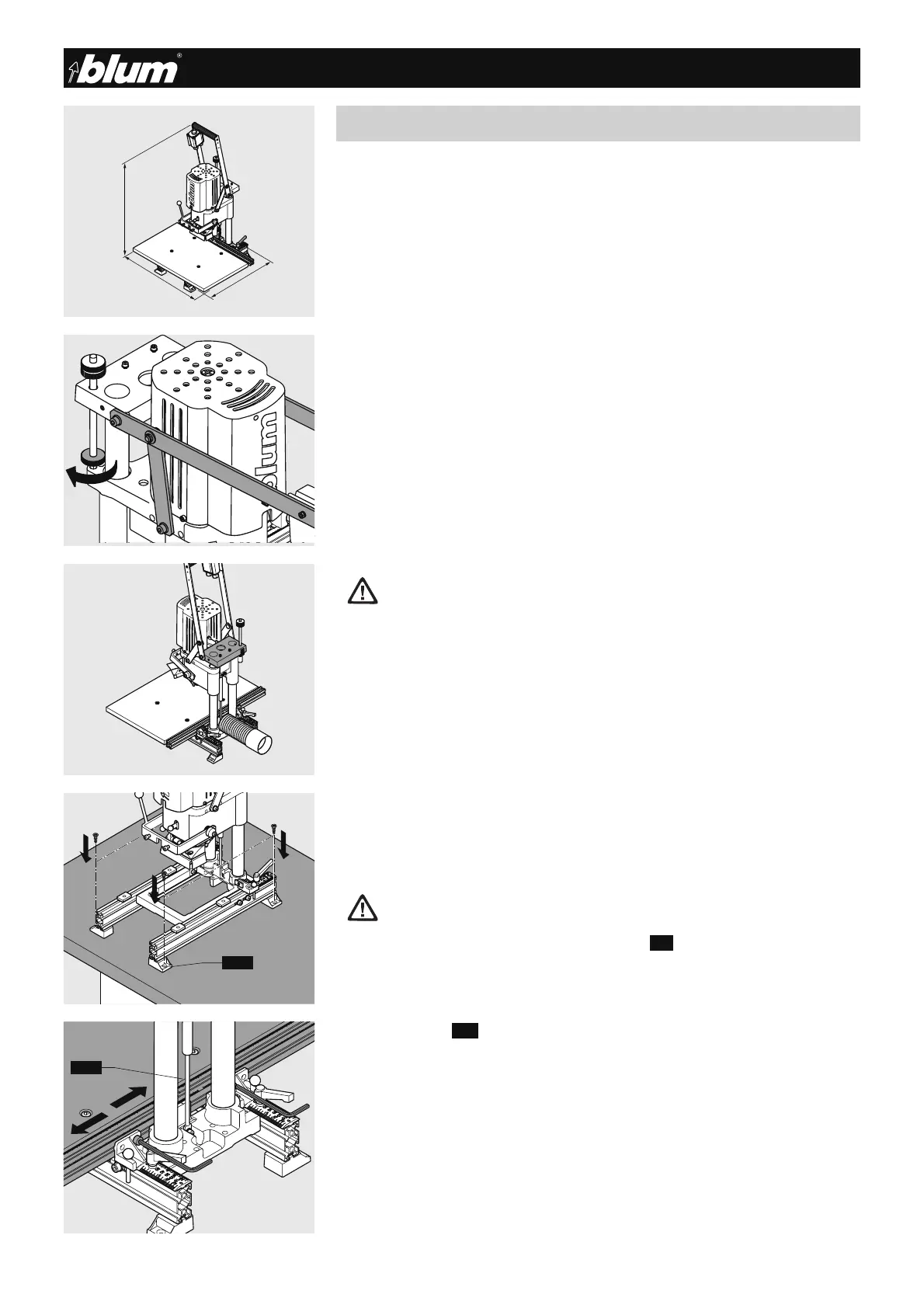

1.1 - Unpacking and assembly
1 - Assembly machine setup
1.1.1) Assembly machine space requirement
H= 966 mm
B= 600 mm
T= 531 mm
1.1.2) Unpacking assembly machine and attaching to a suitable
table
• Open box
• Use two people to lift the assembly machine onto the work table
1.1.3) Positioning (1.2) base ruler
• Place ruler on fixing
• Centre ruler drilling with the drilling of the runner plate
• Clamp ruler
• Pre-drill holes and then attach assembly machine (1.1) using the proper screws.
• The assembly machine should not be set up in a moist environment. The area must
be dry.
ATTENTION:
The assembly machine weighs approx. 37 kg.
The table must be of sufficient stability to accommodate this
• Completely loosen bottom knurled screw
ATTENTION:
To lift assembly machine only use hitch and load pick up device!
H
B
T


