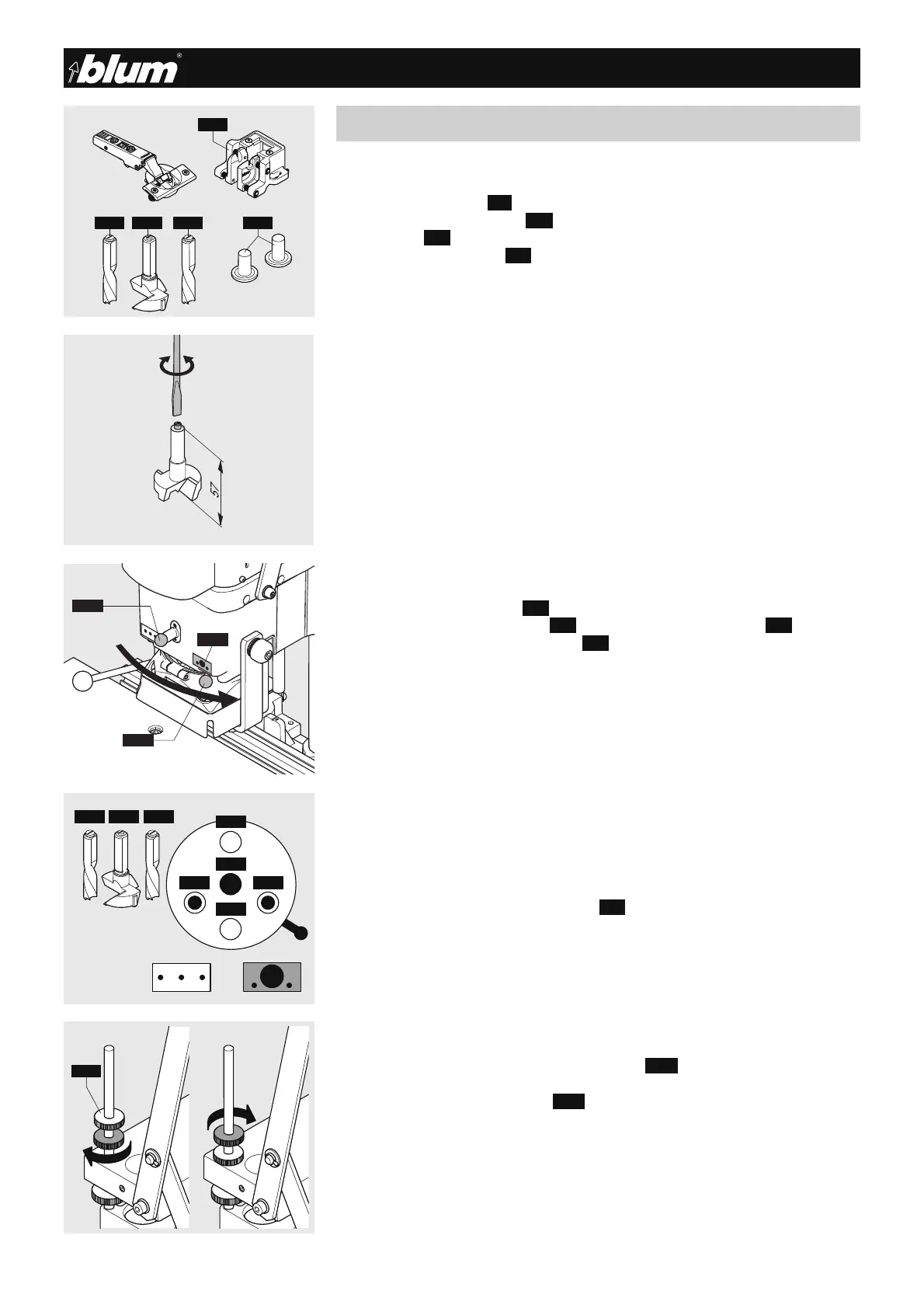

12 BA-100/1EN M52.XXXX
2.1 - Furniture hinge assembly
2 - Assembly
2.1.1) Required parts
• Drill bits:
1x ø 35 mm clockwise (2.1) (marked in black)
2x ø 8 mm counterclockwise (2.2) (marked in red)
• Cover caps (2.3)
• Insertion ram MZM.00XX (2.4) (see catalogue to determine the proper insertion ram
for the respective furniture hinge)
• Furniture hinge
Important:
All drill bits must be the same length
2.1.2) Setting drill bit length
• The total length of the drill bits (from bit-tip to adjustment screw)
should be 57 mm
• To correct drill bit length, adjust screw accordingly using a screwdriver
2.1.3) Setting drilling pattern
• Pull sprung loaded knob out (2.5)
• At the same time, move the lever (2.6) to the “Furniture hinge” symbol (2.7)
• Release knob back to original position (2.5)
2.1.4) Inserting drill bits
• Disconnect assembly machine from the power supply
• Push drill bits all the way into the chuck (The flat on the drill shank must be aligned
with the fixing screw)
• Use a hex wrench to tighten the fixing screws
• Insert cover caps into the unused chucks (2.3). This will keep the chucks clean and
prevent the fixing screws from shaking loose..
2.1.5) Setting drilling depth
• Set drilling depth using the bottom knurled screw (2.10)
(One turn equals 1.5 mm)
• Secure the bottom knurled screw (2.10) (lock)
!
