13 BA-100/1EN M52.XXXX
2 - Assembly

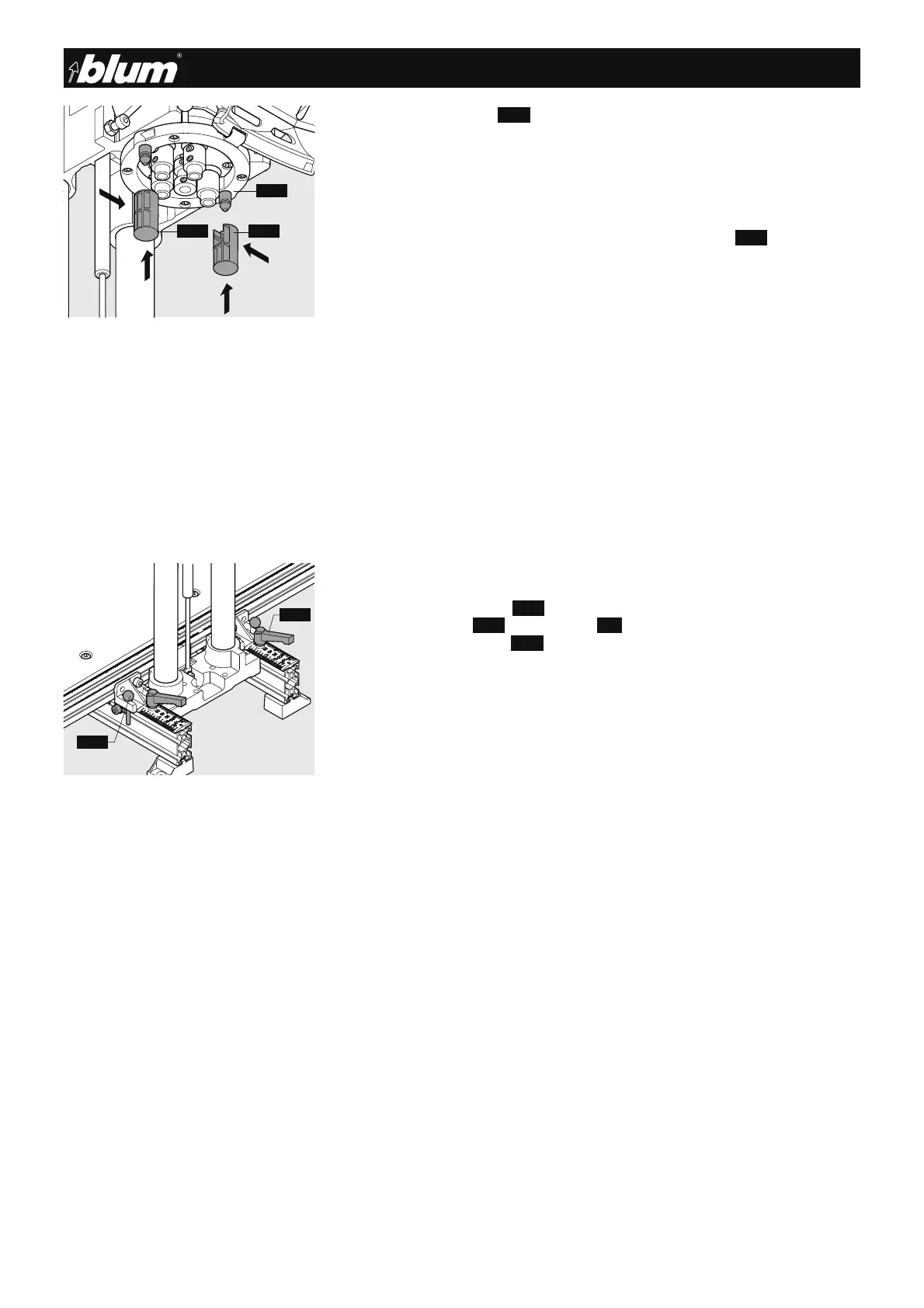

2.1.6) Drilling depth stop (2.11)
Another option to maintain a constant drilling depth is to install the drilling depth stop.
When the drilling depth stop is installed, the drilling depth is always 13 mm regardless
of the thickness of the work piece.
Installing the drilling depth stop:
• Disconnect assembly machine from the power supply
• Remove drill
• Push drilling depth stop into the locking holes of the retainer ring (2.12) until it enga-
ges and turn 90 degrees with force.
• Attach drill bit
IMPORTANT:
The drill bit length must be set to 57 mm. (See point 2.1.2). The knurled
screw should not jut out before the drilling depth is reached. (See point
2.1.5)
2.1.7) Setting the stop system
• Loosen the clamping lever (2.15)
• Remove locking pin (2.16) and set gauge (1.4) to the MB.
• Secure the clamping lever (2.15)
This fixed setting provides a drilling distance of 22.5 mm.
!
