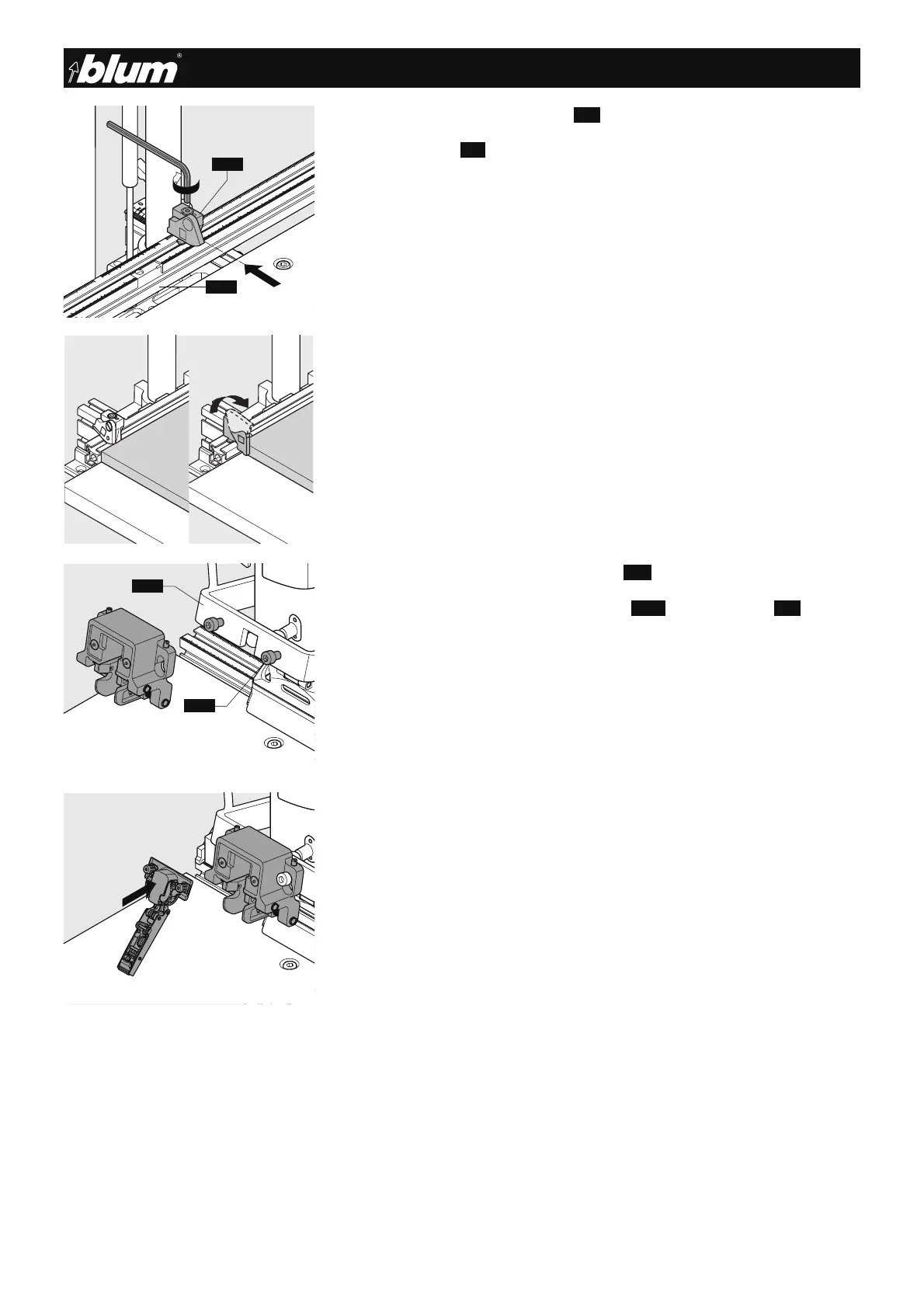

14 BA-100/1EN M52.XXXX
2 - Assembly
2.1.8) Setting swivel stops (optional) (1.7)
Set the swivel stops (1.7) to the desired dimension and clamp.
2.1.9) Placing door on the work table and pushing up against the stop
IMPORTANT:
Indicator edge is on the inside of the swivel part.
IMPORTANT:
The stop surface can be enlarged by swivelling the stop flap forward for
grooved work pieces and work pieces with radii (see picture).
2.1.10) Attaching insertion ram to swing arm (2.8)
• Place insertion ram on to the two fixing screws (2.20) on the swing arm (2.8) .
• Tighten the screws so that the insertion ram is secure.
2.1.11) Clipping furniture hinge on to the insertion ram
L
!
!
