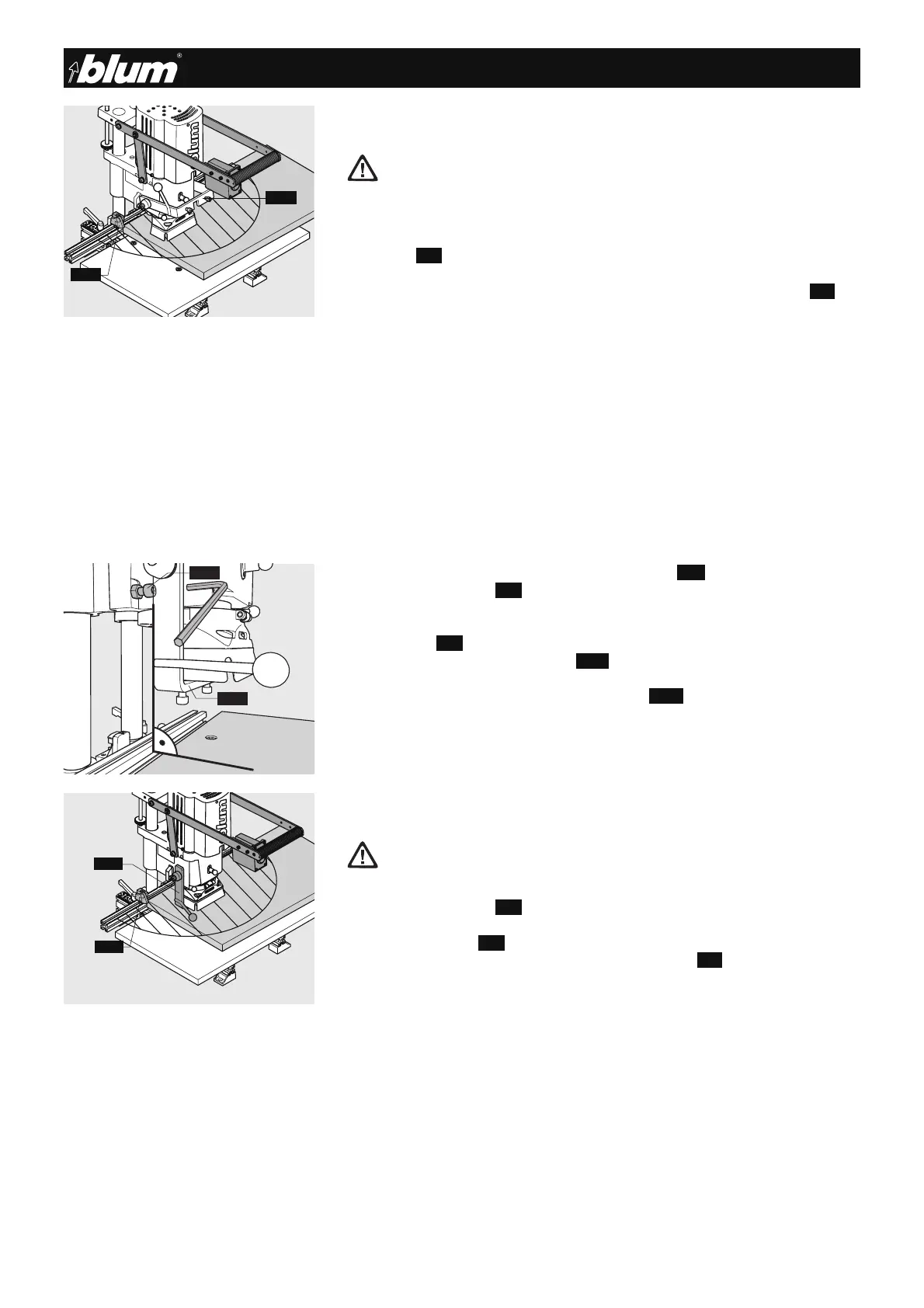

15 BA-100/1EN M52.XXXX
2 - Assembly
• Swing arm(2.8) must be swivelled up.
• Hold down door outside of danger area (A) and press against the swivel stop (1.7) .
• Push handle down
• Press motor button
• Drill until the correct depth is reached
• Release motor button
ATTENTION:
All items except for the work piece should be removed from the work
area of the assembly machine. Keep your hands out of work area (A).
2.1.12) Drilling
2.1.13) Checking the tilt adjustment of the swing arm (2.8)
• Swivel down swing arm (2.8) to the stop.
• Check whether or not the furniture hinge is aligned with the drilling.
• If it is misaligned, this can be caused by two things:
a) Swivel arm (2.8) is not set vertical.
- Use the screw to correct this setting (2.21)
b) Insertion ram is off-centre:
- Correct this setting using the adjustment screws (2.22) on the insertion ram.
2.1.14) Inserting the furniture hinge
ATTENTION:
Keep your hands and other objects away from assembly machine work
area (A)
• Swivel down swing arm (2.8)
• Push handle down to insert hinge into door.
• Swivel up swing arm (2.8) .
• Remove door from the work table or push to the next stop (1.7)
L
L
