5.1 - Maintenance
5 - Maintenance and service

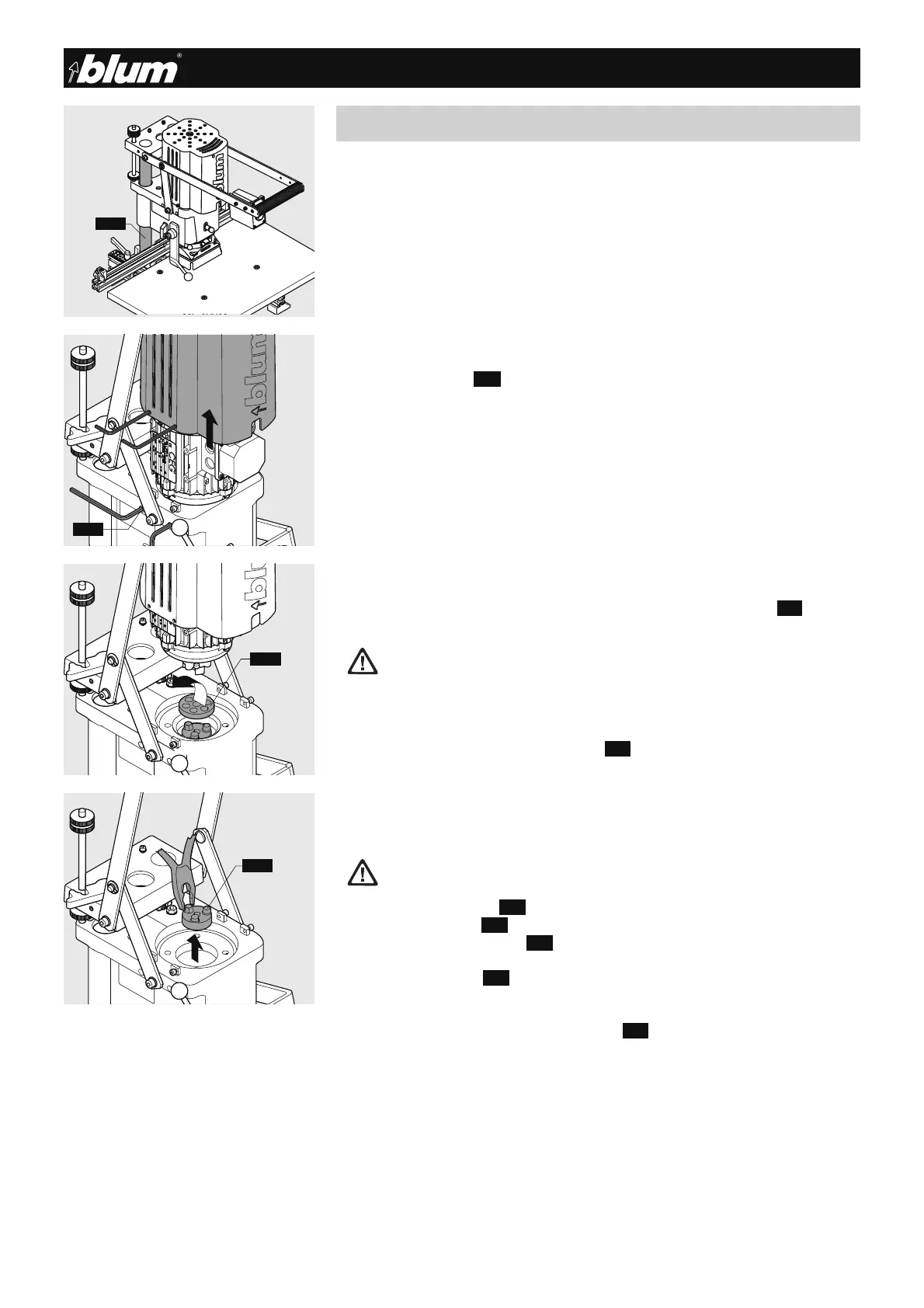

5.1.2) Damaged coupling (clutch)
The coupling is damaged if:
• The drill is jammed in the work piece but the motor fan wheel continues (1.9) to turn.
• Disconnect assembly machine from the power supply
• Remove drill
• Remove motor hood
• Loosen the motor’s four side fixing screws (5.4).
(approx. 4 full turns)
• Lift up motor and place on to the drive
• Remove dampening ring(5.5)
• Remove old coupling (5.6)
• Attach replacement coupling (5.6) on to the spindle. (ensure correct positioning of
coupling and spindle)
• Insert dampening ring(5.5)
• Preposition coupling base for motor attachment
• Attach motor (motor must sit securely on the flange)
• Re-secure the motor’s four side fixing screws (5.4).
• Re-attach motor hood
• The supports are maintenance free and should not be oiled
• The guide elements (5.2) must be cleaned regularly with a dry cloth to remove dust.
(Do not use cleaners or solvents)
5.1.1) Maintenance
• Drilling dust should be removed from the assembly machine on a regular basis
• Electrical lines should always be checked for damage before the machine is used
ATTENTION:
Keep your hands and other objects away from machine work area (A)
ATTENTION:
Secure the motor against falling
