The Blustream range of products include Matrix control via IR.
IMPORTANT: Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers
Infrared solutions. When using third party 12V IR control solutions please use the Blustream IRCAB cable for IR
conversion.

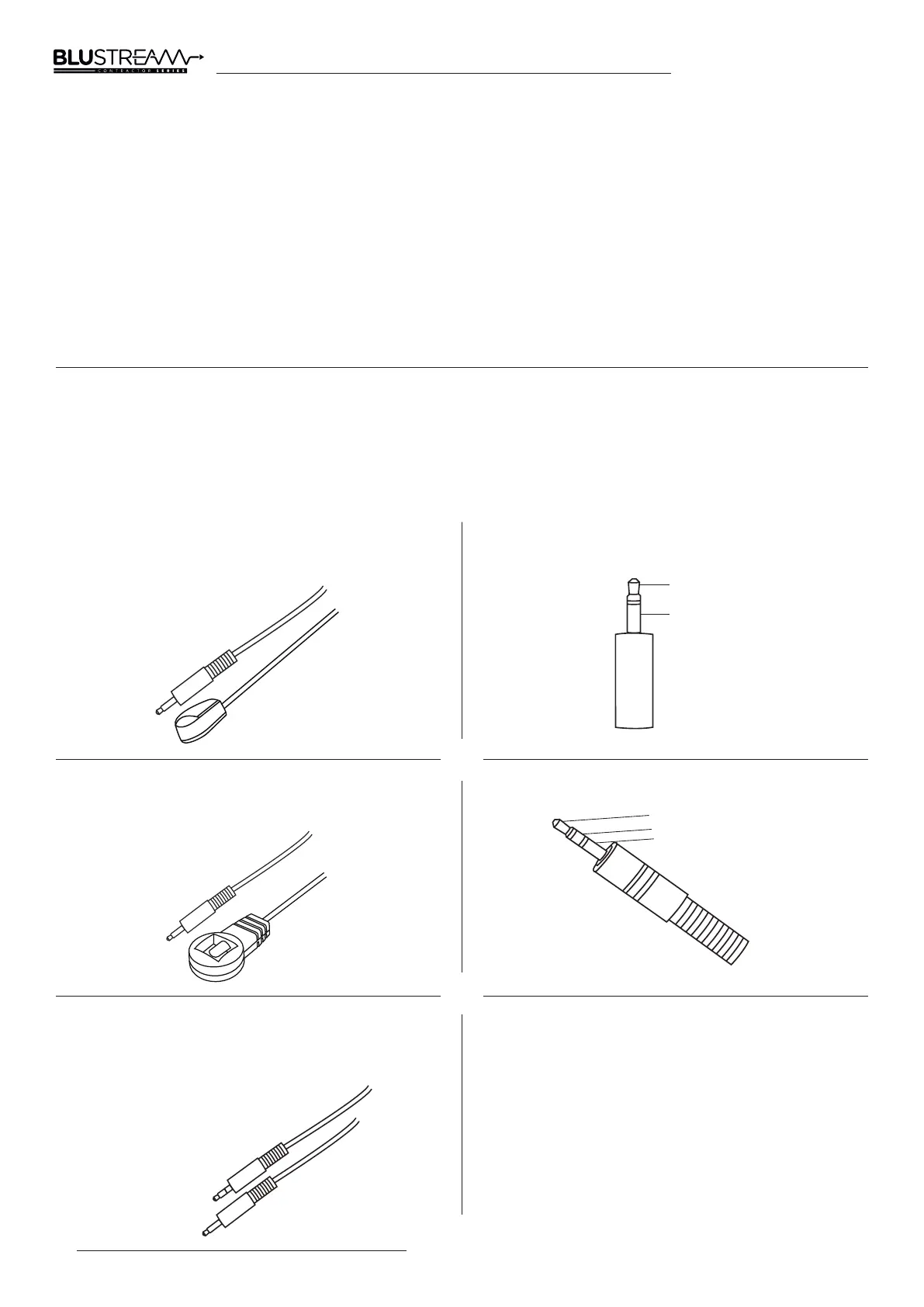

IR Receiver - IRR
Blustream 5V IR receiver to receive
an IR signal for control of the matrix.
IR Control Cable - IRCAB
Blustream IR Control cable 3.5mm Mono to
3.5mm Stereo for linking third party control
solutions to Blustream products.
Compatible with 12V IR 3 party products.
Please Note: cable is directional as
indicated.
IR Receiver - Stereo 3.5mm
Infrared (IR) Control
Signal
5V
Ground
The front panel buttons are used to individually amend the input / output structure of the Matrix. Using the Output
Up / Down buttons, first select the desired output, then using the Input Up / Down buttons, select the source
device to switch to. Clicking the Input Up / Down buttons scrolls through the Input / Output numbers sequentially
from 1 - 4, (or) 6, (or) 8 then back to 1.
The Output Up / Down buttons scroll from 1 - 4, (or) 6, (or) 8 then ‘A’ for All, before returning to output 1. Selecting
‘A’: will switch all outputs to the selected Input.
The front panel buttons can be used for other control features:
• Input Up - press and hold for 3 seconds to power o the matrix (press to power on when in standby mode)
• Output Down - press and hold for 10 seconds to turn on/o front panel button lock
• Output Up - press and hold for 3 seconds to set PTP mode (output 1 = input 1, output 2 = input 2 etc.)
Front Panel Control
The Matrix features CEC control of source devices and displays via the products web GUI and RS-232. It is possible to
send CEC commands such as power on / o, input selection as well as volume volume up or down.
Please see the RS-232 command list at the end of this document for a full list of CEC commands available.
Please note: CEC is subject to the support of the sources, and displays connected to the Matrix.
CEC Control
