C44CS-KIT/C66CS/C88CS USER MANUAL
contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk
09

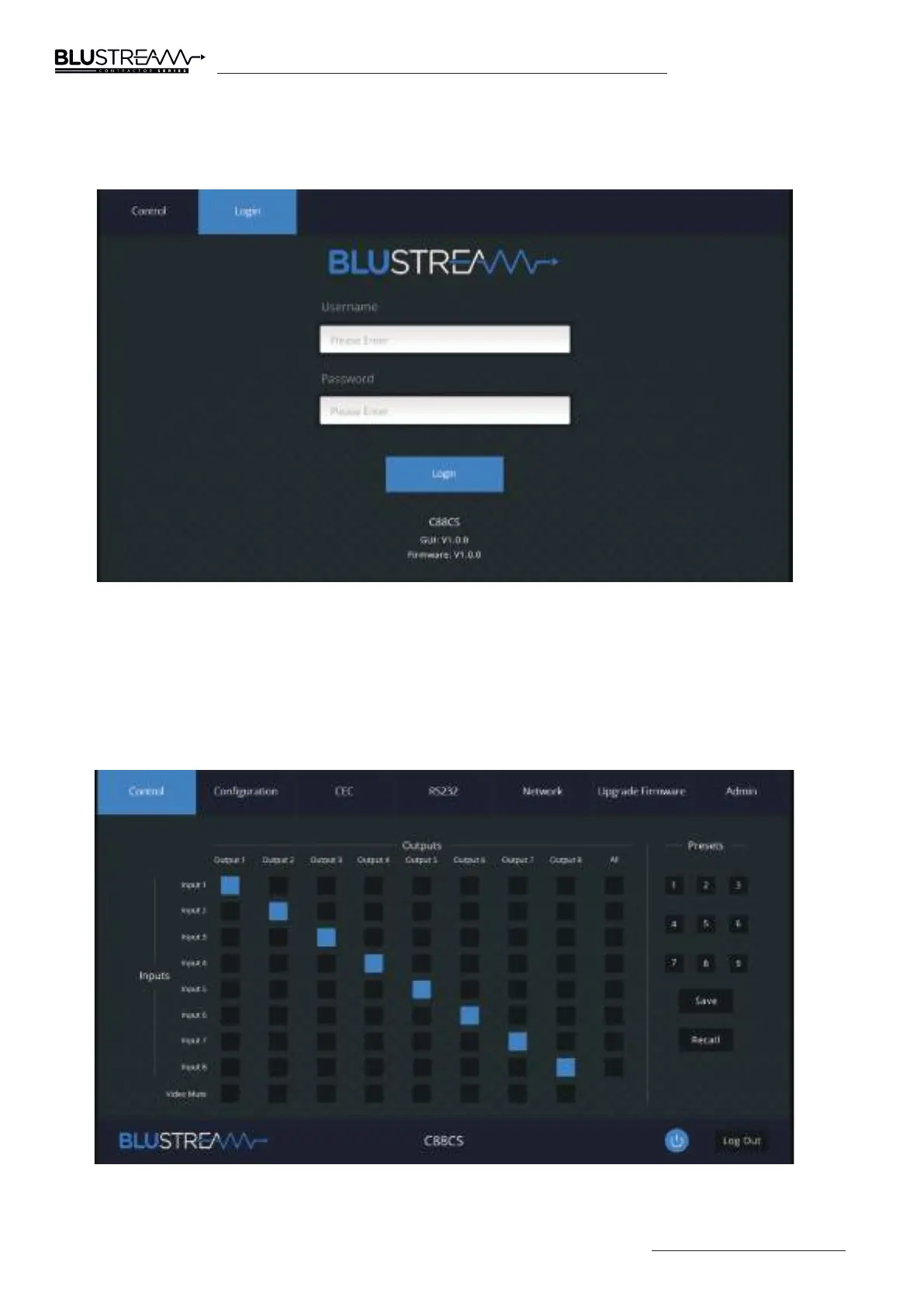

Login Page
The Login Page allows a user or admin to login and access additional functionality.
This page also shows you the current firmware version of both the Matrix and web-GUI.
User Control Page
The Control Page allows a user to change inputs for each zone (output). Simply select the square that corresponds with
the input and zone you wish to change.
A User or Admin also has the ability to Save or Recall pre-configured Presets. A Saved Preset will store the specified
input to output configuration, and allow the configuration to be recalled as required.
There is also a power button on the lower right corner to turn the Matrix on or o.
