CUSTOM PRO MATRIX USER MANUAL
OUT4TCS

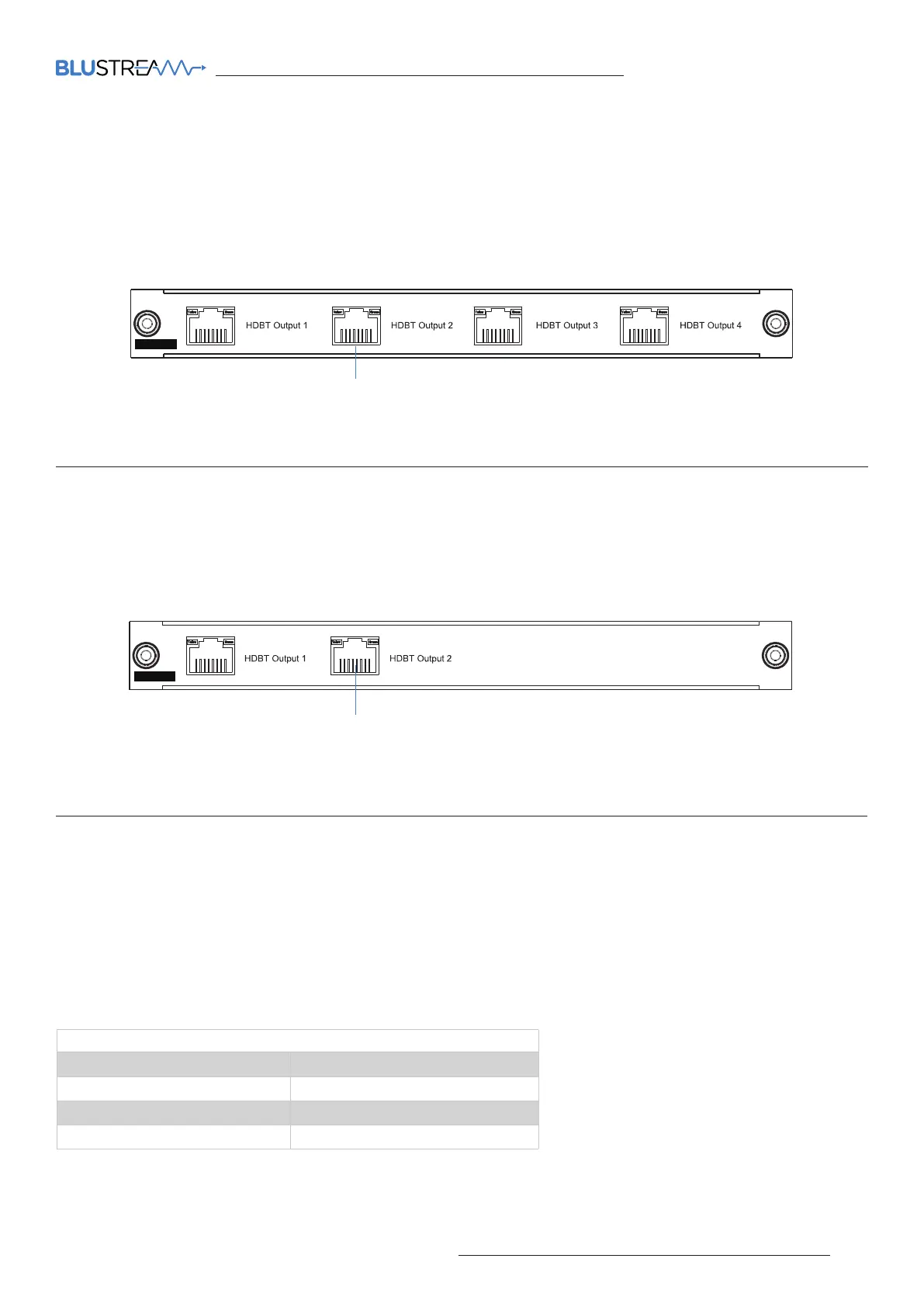

Custom Pro Matrix Output Boards
PRO-OUT4TL-V2 - 4-Way HDBaseT™ CSC Output Board (4K 60Hz 4:4:4 - 18Gbps to 40m)
• 4 x HDBaseT™ CSC, RJ45
• Supports 40m at 4K 60Hz 4:4:4, or 70m at 1080p when used with the HEX70CS-RX
• Supports PoC (Power over Cable) to compatible Blustream HDBaseT™ receivers
PRO-OUT2TL-V2 - 2-Way HDBaseT™ CSC Output Board (4K 60Hz 4:4:4 - 18Gbps to 40m)
• 2 x HDBaseT™ CSC, RJ45
• Supports 40m at 4K 60Hz 4:4:4, or 70m at 1080p when used with the HEX70CS-RX
• Supports PoC (Power over Cable) to compatible Blustream HDBaseT™ receivers
1 HDBaseT™ PoC Outputs (RJ45)
1 HDBaseT™ PoC Outputs (RJ45)
OUT2TCS
OUT4TL-V2
OUT2TL-V2
Automatic Smart Scaling Functionality in CSC
Blustream HDBaseT™ CSC output boards have an in-built automatic smart scaling feature allowing for a 4K video
signal to be independently downscaled per individual HDBaseT™ output connection. The output card will read the
EDID of the display attached to the HDBaseT™ receiver, downscaling the video resolution automatically where the
display cannot accept the native resolution being sent from the source device. CSC will auto-downscale either video
resolution or chroma sampling, it is not able to amend frame rate, colour depth or HDR elements within a signal.
Simultaneous HDMI outputs (where available) will continue to pass the native signal.
Smart Scaling Conversion TableSmart Scaling Conversion Table
Native Source Signal Smart Scaled Output Capability
4K xHz 4:4:4 4K xHz 4:2:0 (or) 1080p xHz
4K xHz 4:2:2 4K xHz 4:2:0 (or) 1080p xHz
4K xHz 4:2:0 1080p xHz
x = frame rate, will be equal from native to converted/scaled
Please Note: smart scaling is automatic based on the EDID of the display and cannot be controlled or adjusted by the
user / integrator. To obtain resolutions lower than 1080p, a separate scaler device must be specified.
