BluStream HMXL66 User Manual

HMXL66 QUICK REFERENCE GUIDE
www.blustream.co.uk
TCP/IP (RJ45) – Connect to LAN for
TCP/IP control of Matrix.
RS-232 port - For control of the Matrix
from from PC or third party control
processor.
IR inputs 1 to 6 – 3.5mm stereo jack
(IR sensor or control processor input).
Sends 5V IR out to corresponding zones
HDBT IR Tx port to control the zones TV/
local hardware.
IR outputs 1 to 6 – 3.5mm stereo jack
for routed IR 5V emitter outputs for
discrete source control, determined by
the source input selected in that zone.
IR extension receiver input – 3.5mm
stereo plug input for connection of
a remote IR 5V sensor or control
processor for remote IR control of the
matrix.
EDID DIP switch – Used for global EDID
settings .
POH power port – Use included 24V/6A
DC adaptor to power the remote
HDBaseT receivers.
Power port – Use included 12V/5A DC
adaptor to power the matrix switcher.
HDMI inputs 1 to 6 – Connect HDMI
sources.
HDMI outputs 1 to 2 – Output for
displays (Outputs linked to HDBaseT
Outputs 1 & 2).
HDBT outputs 1 to 6 – Output for
displays.
Power switch - On/Off control.
TCP/IP
RS232
HDMI Input
Ouput
IR Input
HDBT Ouput
IR Ext. EDID
Power 12V
On/Off
0
1
1 2 3 4 5 6
1 2 3 4 5 6
IR Output
1 2 3 4 5 6
1 2
1 2
3 4 5 6
HMXL66
1Lock 2 3 4 5 6 PTP
1Power
IR
2 3 4 5 6 All
In
Out
Menu Up Esc
Select Down Enter
EDID
6x6 4K HDBaseT™ Matrix
POH 24V
TCP/IP
RS232
HDMI Input
Ouput
IR Input
HDBT Ouput
IR Ext. EDID
Power 12V
On/Off
0
1
1 2 3 4 5 6
1 2 3 4 5 6
IR Output
1 2 3 4 5 6
1 2
1 2
3 4 5 6
HMXL66
1Lock 2 3 4 5 6 PTP
1Power
IR
2 3 4 5 6 All
In
Out
Menu Up Esc
Select Down Enter
EDID
6x6 4K HDBaseT™ Matrix
POH 24V

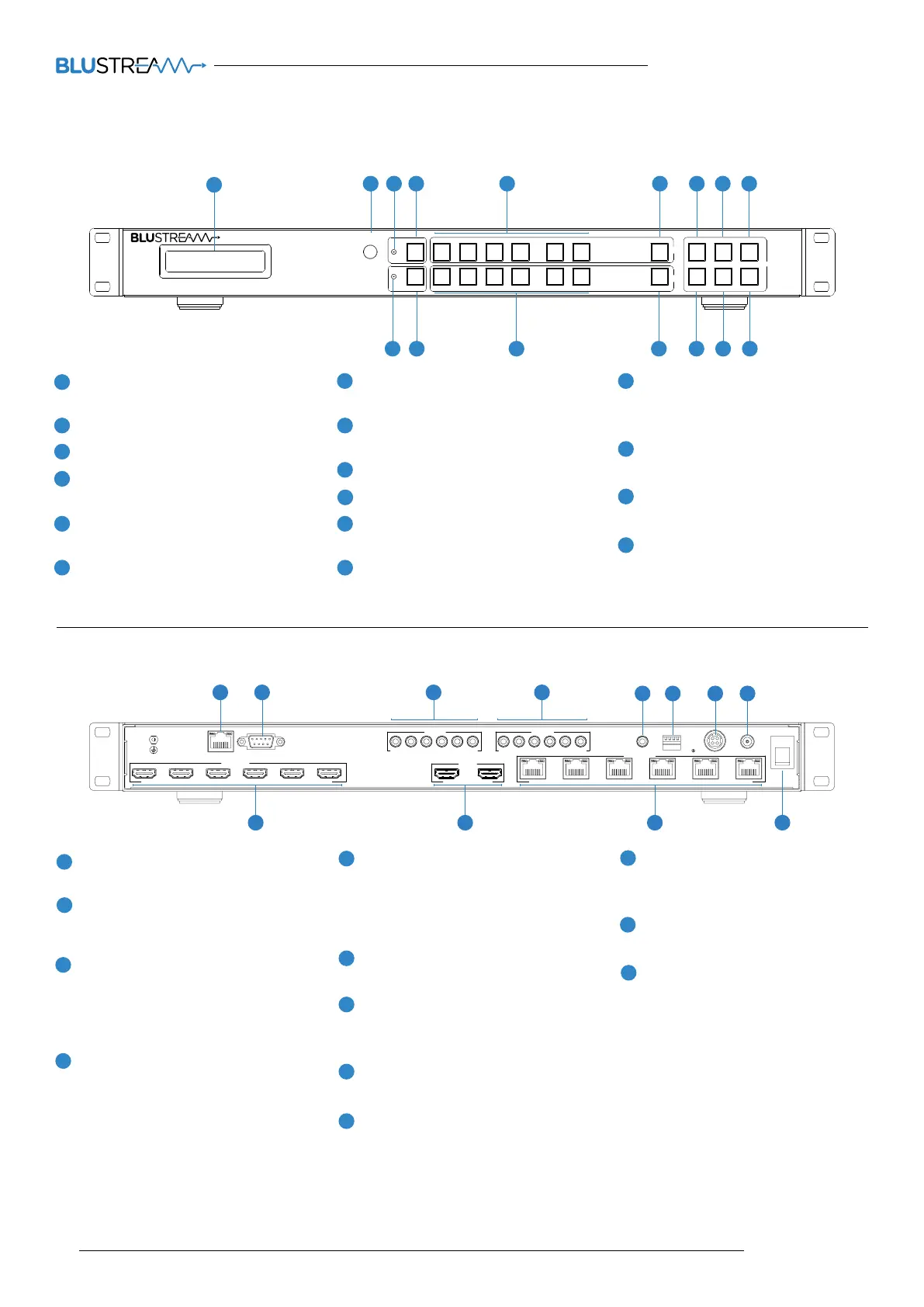

Rear Panel
Front Panel
Panel Descriptions
1
2 3 4 5 6 7 8 9
16151413121110
LCD display – Shows the status of input/
output selection, EDID etc.
IR receiver window.
Power LED indicator.
Power button – Press to power on/off
the Matrix.
HDMI output selection button 1 to 6 –
To select the output from 1 to 6.
All button for HDMI outputs – All outputs
will work as one (Selects all outputs).
Menu button – Press to enter EDID set
mode.
Up selection button - Press to change
segment’s value.
ESC – Press to quit EDID set mode.
Lock indicator.
Lock button – Press to lock the buttons
of the front panel.
HDMI input selection button 1 to 6 –
Press to select the input from 1 to 6.
PTP button – Press to mirror all inputs
and outputs (e.g. output 1 to input 1,
output 2 to input 2).
Selection button – Press to select
current setting.
Down selection button – Press to
change segment’s value.
Enter button – Press to set EDID to
specified INPUT or copy EDID from
specified OUTPUT to specified INPUT.
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
02
1 2 3 4
5 6 7 8
9 1110
12

BluStream HMXL66 Specifications

General

Brand	BluStream
Model	HMXL66
Category	Matrix Switcher
Language	English
