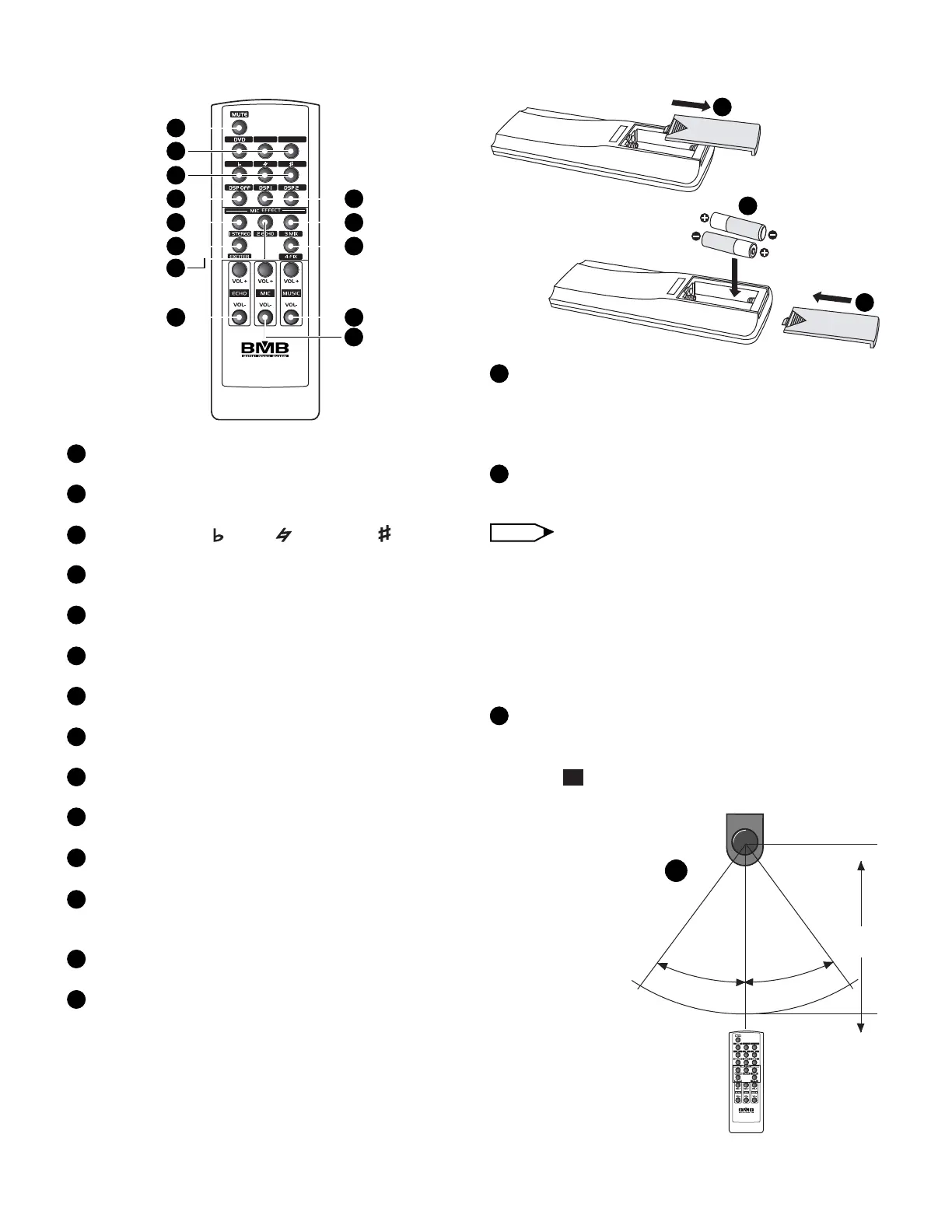

NAMES AND FUNCTIONS OF REMOTE CONTROLLER COMPONENTS
AAA
ALKALINE
BATTERY
AAA
ALKALINE
BATTERY
4
3
1
9
14
15
16
NOTE
2
5 10
8 12
6 11
13
7
17
MUTE BUTTON
INPUT SELECT BUTTON: DVD, CDG, AUX
KEY CONTROL: LOW, NATURAL, HIGH
MUSIC MODULATOR CONTROL BUTTON
1. STEREO KARAOKE EFFECT SELECT
EXCITER KARAOKE EFFECT SELECT
2. ECHO KARAOKE EFFECT SELECT
ECHO VOLUME UP & DOWN BUTTON
DSP EFFECT 1 & 2
3. MIXED KARAOKE EFFECT SELECT
4. FIXED KARAOKE EFFECT SELECT
MUSIC MASTER VOLUME CONTROL UP &
DOWN BUTTON
MICROPHONE VOLUME UP & DOWN BUTTON
OPEN BATTERY COVER
Open the battery compartment cover on the back of the
remote control unit. The cover should open easily if you
press on in with your thumb while sliding it in the direction
of the arrow.
INSERTING BATTERIES
Insert two size AAA 1.5V (R6) alkaline batteries by
matching the + and
_
on the batteries to the
diagram inside the battery compartment.
CLOSE BATTERY COVER
Close the cover of the battery case.
Remove the batteries to avoid damage from possible
battery leakage whenever you anticipate that the remote
control will not be used for an extended period.
Handle the remote control with care. Avoid dropping it,
getting it wet, or placing it in direct sunlight, near a
heater, or where the humidity is high.
USING REMOTE CONTROL UNIT
When operating the remote control unit, point the unit's
infrared signal transmitter at the remote control remote
sensor R on the front panel of the AV processor. The
remote control
unit can be
used within a
range of about
18 feet (6m)
from the remote
sensor, and
within angles of
up to about 30
degrees.
17
15
DX-222
CDG
AUX
REMOTE
30
o
30
o
18 feet
(6 m)
Remote control sensor
