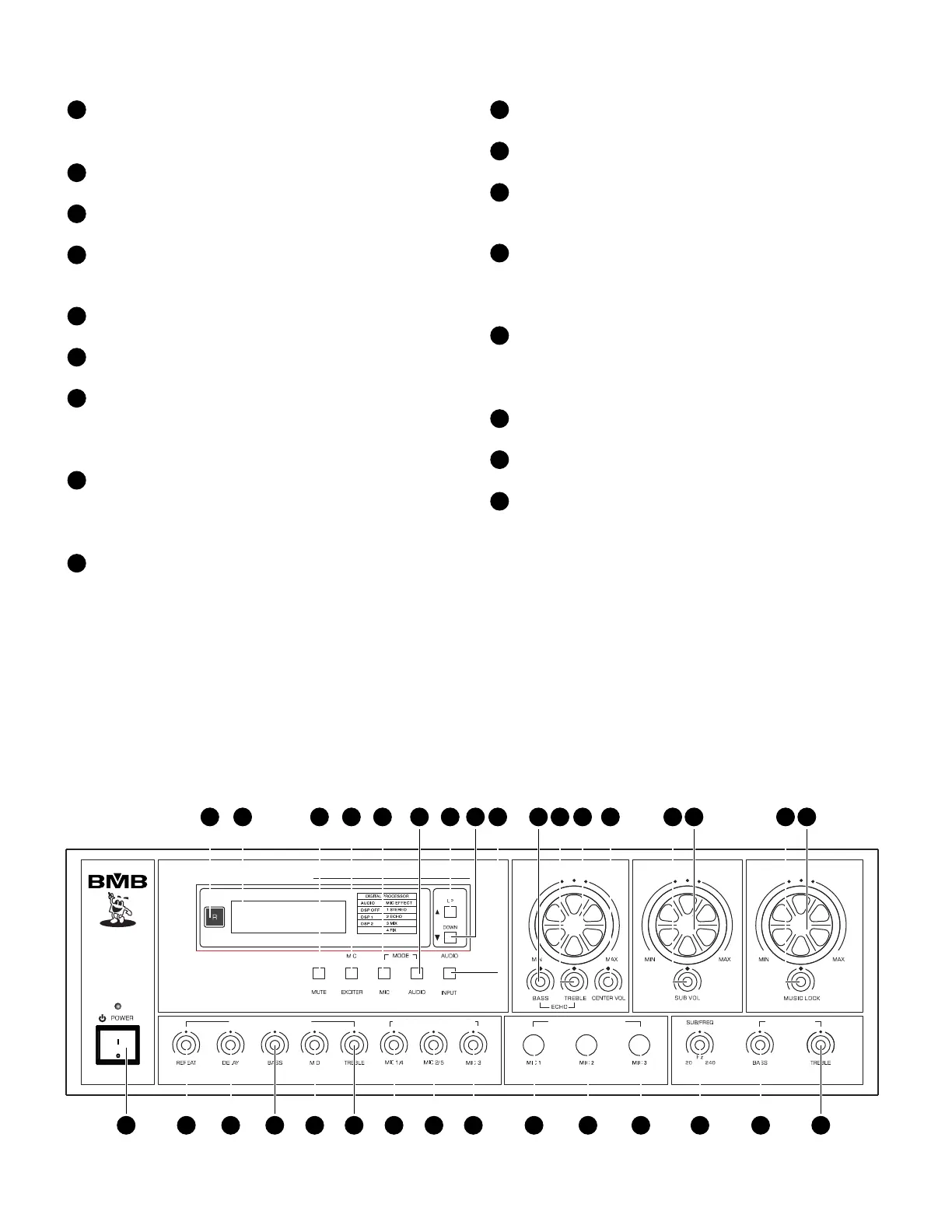

NAMES AND FUNCTIONS OF FRONT PANEL COMPONENTS
1
THE DISPLAY WINDOW FOR RECEIVING SIGNAL
OF REMOTE CONTROL
LCD: CPU display window
MUTE BUTTON
MIC. COMPRESS CONTROL KNOB
Mic. will be more sensitive
MIC. MODE: Mic mode program button
AUDIO MODE: Music mode program button
UP CONTROL BUTTON
Move to up control button, should use it with
MODE ADJUSTABLE program button together.
DOWN CONTROL BUTTON
Move to down control button, should use it with
MODE ADJUSTABLE program button together.
AUDIO INPUT SELECTOR
ECHO BASS ADJUSTING
ECHO TREBLE ADJUSTING
ECHO VOLUME CONTROL
Mic. echo depth effects control potentiometer knob
CENTRE VOLUME
Center speaker level control, connect to powered
center speaker or amplifier.
SUBWOOFER VOLUME
Subwoofer level control, connect to powered
Subwoofer or amplifier.
MIC. MASTER VOLUME CONTROL
MUSIC LOCK: Music output level gain.
MUSIC VOLUME CONTROL
This control allows you to adjust the volume of the
musical source.
11
12
13
14
15
16
17
10
