13. Parameter settings
13.1 Parameter setting steps
13.1.1 Accessing the Main Interface
Connect the power cord and LH2 Heated breathing tube properly. The screen displays the

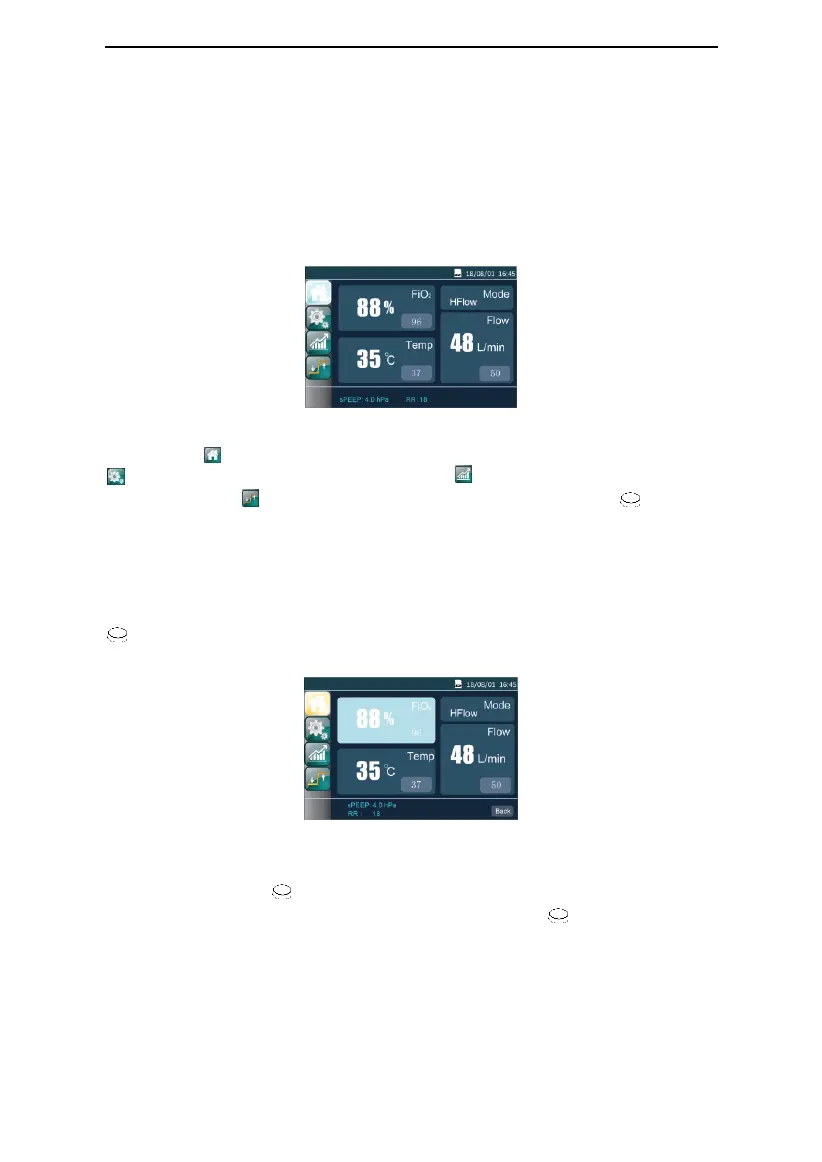

Main Interface shown in Fig. 13-1. The monitored value and set value of FiO
2
, flow and
temperature can be displayed on the interface.
Fig. 13-1
The first icon on the left side of the screen indicates the Main Interface, the second icon
indicates the Setup Interface, and the third icon indicates the Trend Chart Interface,
and the fourth icon indicates the Alarm Interface. As you turn the Knob , the cursor
switches among the four icons, and the interface displayed on the screen changes
accordingly.
13.1.2 Bringing up the parameter settings of the Main Interface
When the page as shown in the Fig. 13-1 is displayed on the display screen, press the Knob
. Enter the parameter settings interface of the Main Interface, and the background color
of the first option of the parameter setting interface becomes blue, as shown in Fig. 13-2.
Fig. 13-2
13.1.3 Selecting Options
As you turn the Knob clockwise, the cursor moves among the FiO
2
, temp and flow
options. When the cursor is on a certain option, press the Knob , and the option value
can now be adjusted and displayed in blue, as shown in Fig. 13-3.
