MOUNT THE LANDING GEAR TO THE FUSELAGE

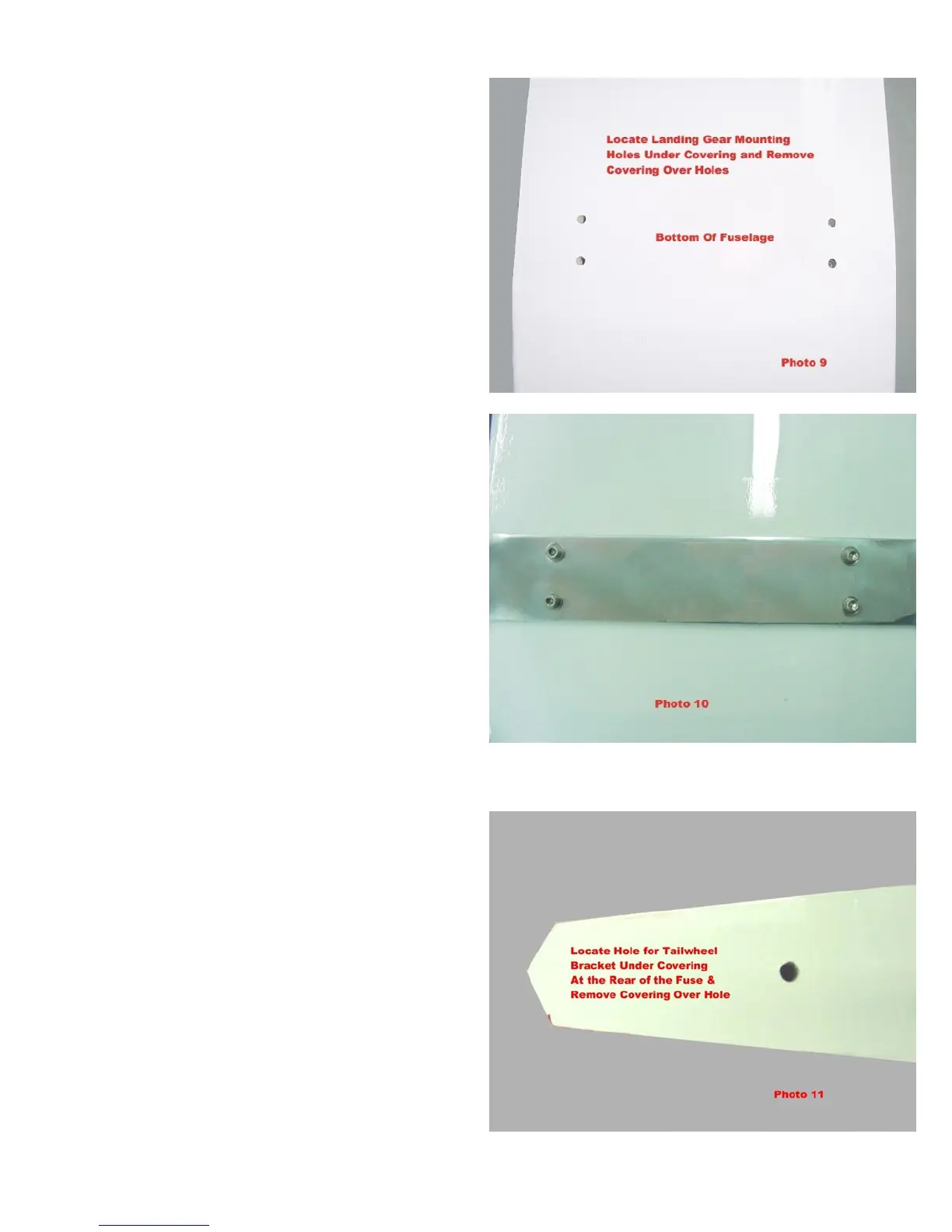

1. Refer to photo 9 and locate the holes for the
landing gear mounting screws underneath
the covering. Pressing firmly with a finger
will allow feeling the holes under the
covering.
2. Using a sharp Exacto blade cut the covering
from each hole.
3. Install the landing gear using 4 socket head
bolts, lock washers and flat washers as
shown in photo 10. The blind nuts have
already been installed at the factory. Thread
locking compound may be used to ensure
that the mounting bolts do not come loose
from vibration.
MOUNT THE TAIL WHEEL BRACKET TO THE FUSELAGE
1. Refer to photo 11 and locate the hole for the
tail wheel bracket underneath the covering
at the rear of the fuse. Pressing firmly with
a finger will allow feeling the hole under the
covering.
2. Using a sharp Exacto blade cut the covering
from the hole.
