3. Test fit the tail wheel bracket into the hole.
It may be necessary to remove the paint
from the bracket and/or to radius the rear of
the hole to accept the bracket.

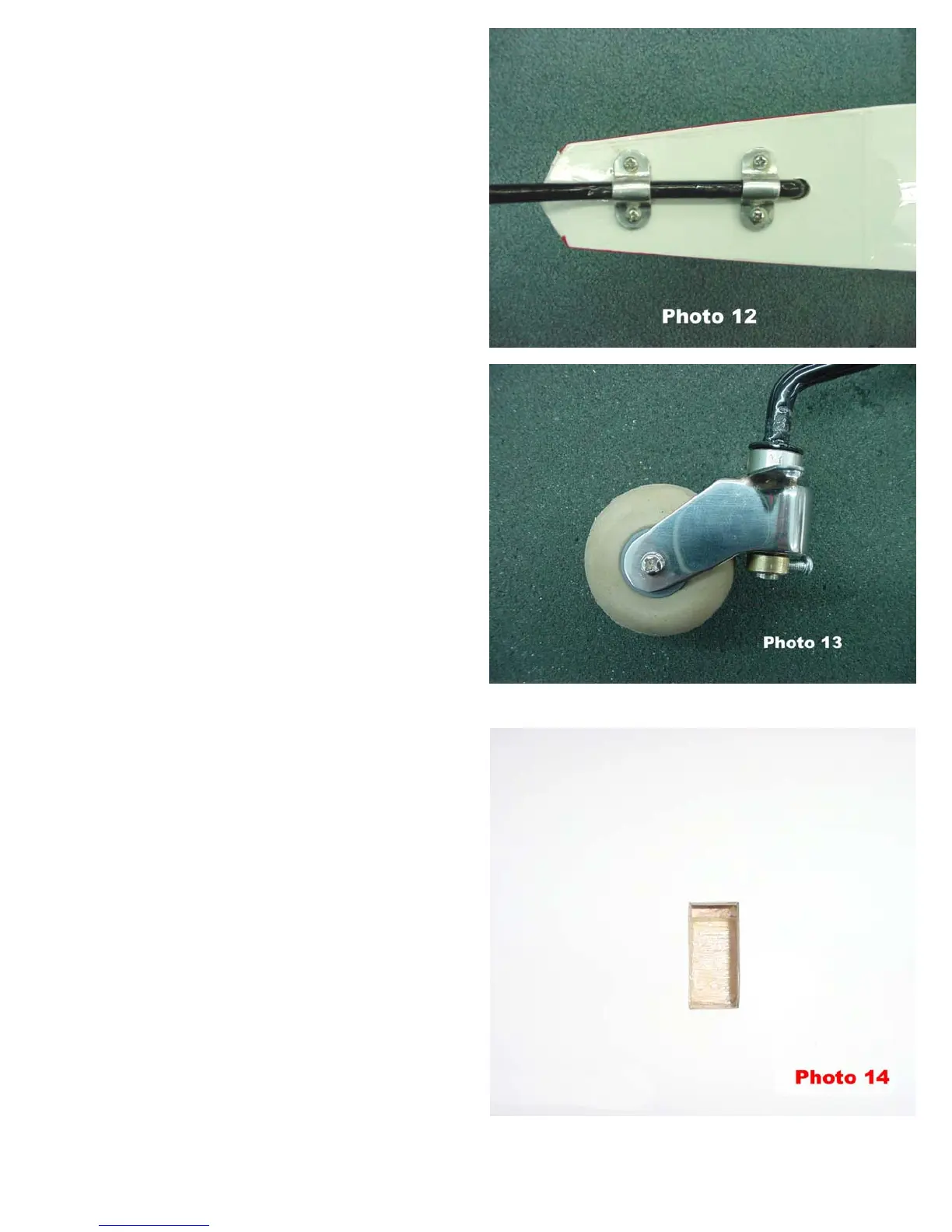

4. Once the bracket fits all the way down into
the hole secure it with the 2 formed straps
and sheet metal screws as shown on photo
12.
5. Install the tail wheel on the tail wheel mount
using the supplied wheel collar as shown in
photo 13.
UNCOVER SERVO CUT OUTS AND SERVO
LEAD EXITS IN WING PANELS AND MOUNT
AILERON SERVOS.
1. Refer to photo 14 and locate the holes for
the Aileron Servos underneath the covering
on the bottom of the bottom wing. Trim the
covering and use a trim iron to tuck the
covering down into the servo holes As
shown in photo 14
BME 37% Ultimate Ver 1.0 3/15/2004 Page 8
