BMP Dynamicroll Frigo 2 - Page 7

BMP EUROPE Srl
Rev. 6
Installation and user manual – Dynamicroll® Frigo 2
7

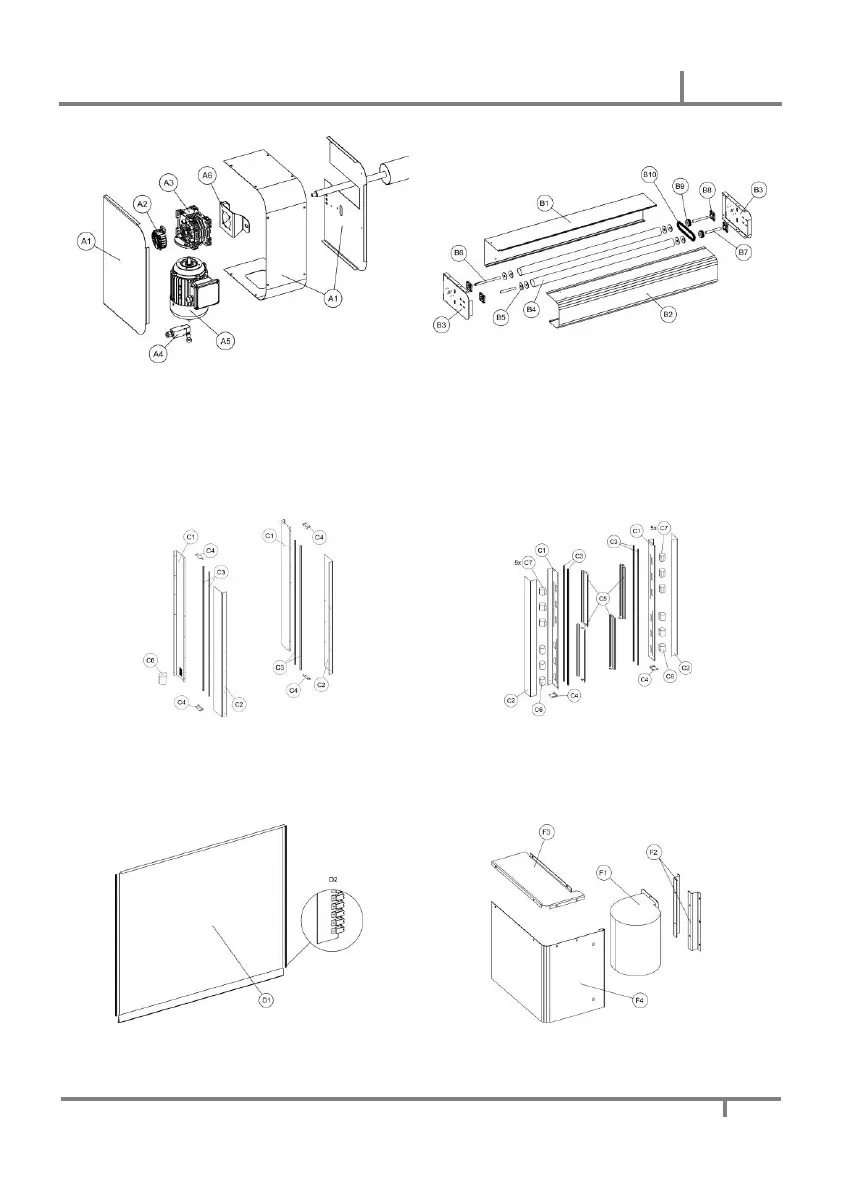

MOTOR UNIT
TOP HEADING
A1
Motor cover
A4
Motor microswitch
A2
Encoder
A5
Motor
A3
Gerabox
A6
Omega plate
B1
Top heading back
B6
Motor shaft
B2
Top heading cover
B7
Shaft
B3
Side plate
B8
Bearing
B4
Head tube
B9
Pinion gear
B5
Disck plate
B10
Chain
COLUMNS
Frigo 2 version
Frigo 2 AIR version
C1
Column back
C3
Polyzen guide
C5
Blower group
C7*
Fan
C2
Column cover
C4
Support
C6
Hot blower
(*) – Number of fans depends on the size of the door
CURTAIN
HOT BLOWER (C6 OPTIONAL)
D1
Curtain
D2
Zip
F1
Fan
F3
Top cover
F2
Fan support
F4
Side cover
