Dashboard
12

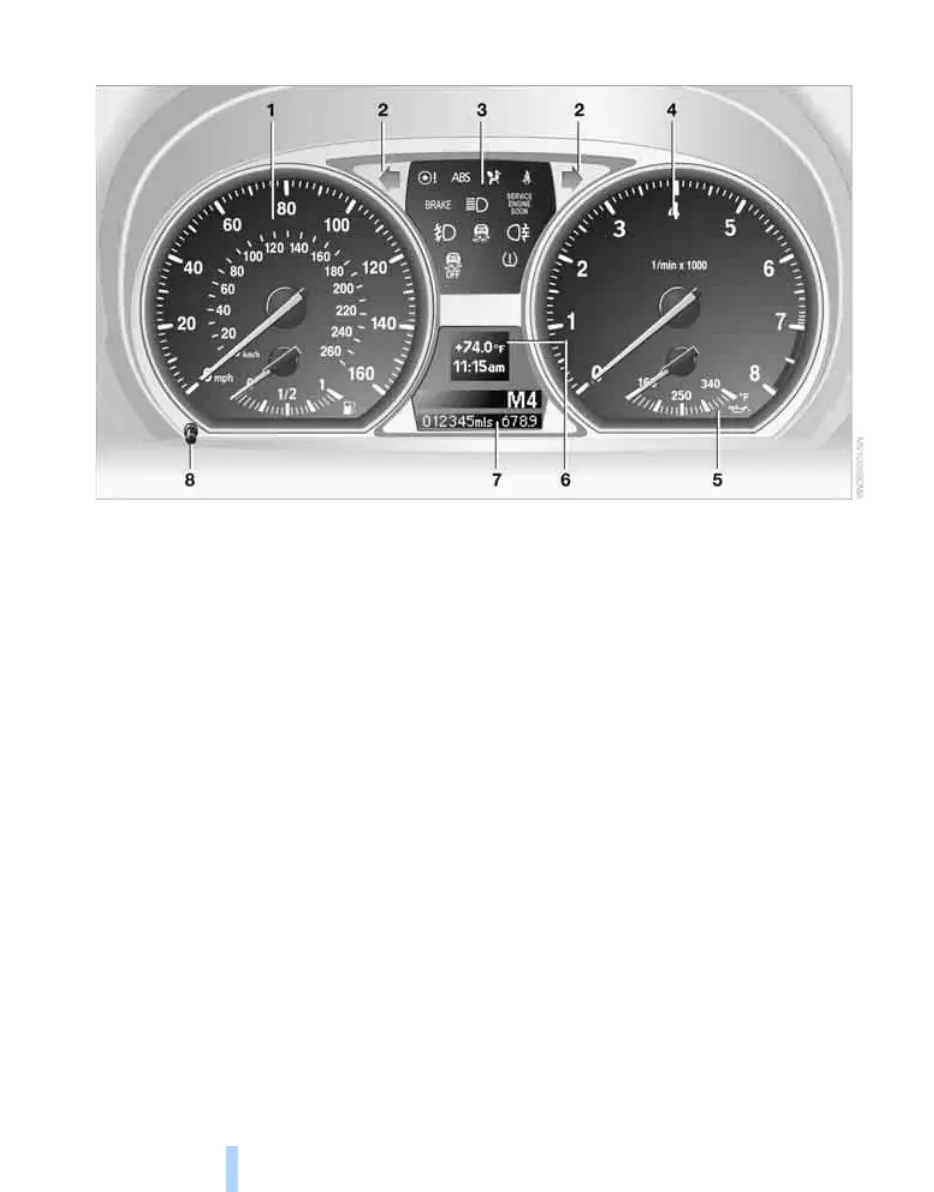

Instrument cluster
1 Speedometer
135i: with fuel gauge
2 Indicator lamps for turn signals
3 Indicator and warning lamps 13
4 Tachometer 70
5 Fuel gauge 71
135i: engine oil temperature 71
6 Display for
> Clock 70
> Outside temperature 70
> Indicator and warning lamps 78
7 Display for
> Position of automatic transmission
* 59
> Gear indicator in 7-gear Sport automatic
transmission with double clutch
* 62
> Computer 71
> Date of next scheduled service, and
remaining distance to be driven 74
> Odometer and trip odometer 70
> High-beam Assistant
* 96
> Checking the oil level 217
> Settings and information 73
8 Resetting the trip odometer 70
Online Edition for Part no. 01 40 2 606 818 - © 03/11 BMW AGOnline Edition for Part no. 01 40 2 606 818 - © 03/11 BMW AG
