BMW 2007 M5 - Climate

Controls
95
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Climate

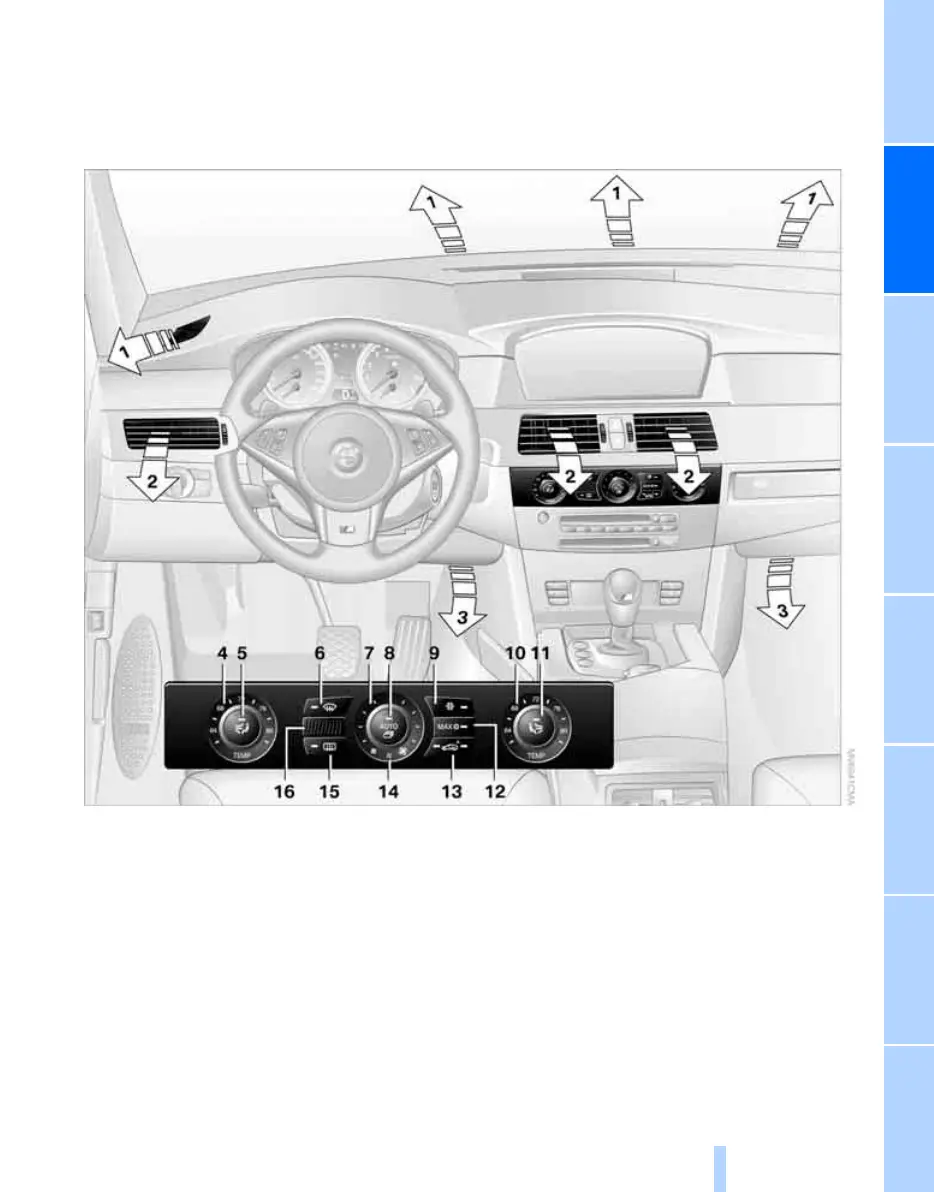

Automatic climate control
1 Air directed toward the windshield and
side windows
2 Air for the upper body region, refer to
Front ventilation on page 99
3 Air to footwell
4 Temperature, left side of passenger
compartment
5 Manual air distribution, driver's side
6 Defrosting windows and removing
condensation
7 Manual air volume, switching off automatic
climate control, residual heat utilization
8 AUTO program
9 Switching cooling function on and off
manually
10 Temperature, right side of passenger
compartment
11 Manual air distribution, front passenger side
12 Maximum cooling
13 AUC Automatic recirculated-air control/
recirculated-air mode
14 LED for residual heat utilization and parked-
car ventilation system
15 Rear window defroster
