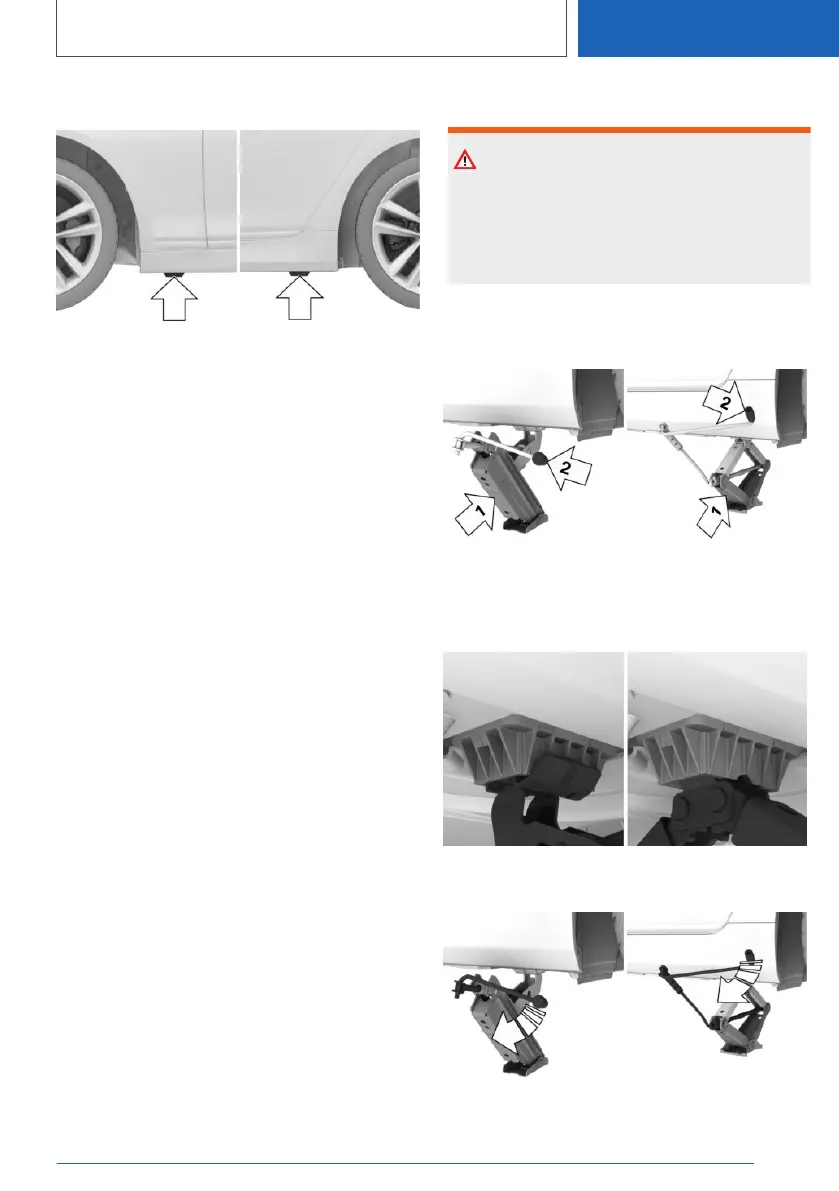

Jacking points
The jacking points are located in the marked po‐
sitions.
Raising vehicle
WARNING
Your hands or fingers could get trapped when
using the jack. There is a risk of injury. Keep
your hands in the described position when us‐
ing the jack, and do not change this position.
1. Hold the jack with one hand, arrow 1, and
grasp the jack crank or lever with your other
hand, arrow 2.
2. Guide the jack into the rectangular recess of
the jacking point closest to the wheel to be
changed.
3. Turn the jack crank or lever clockwise to ex‐
tend the jack.
