Instrument cluster

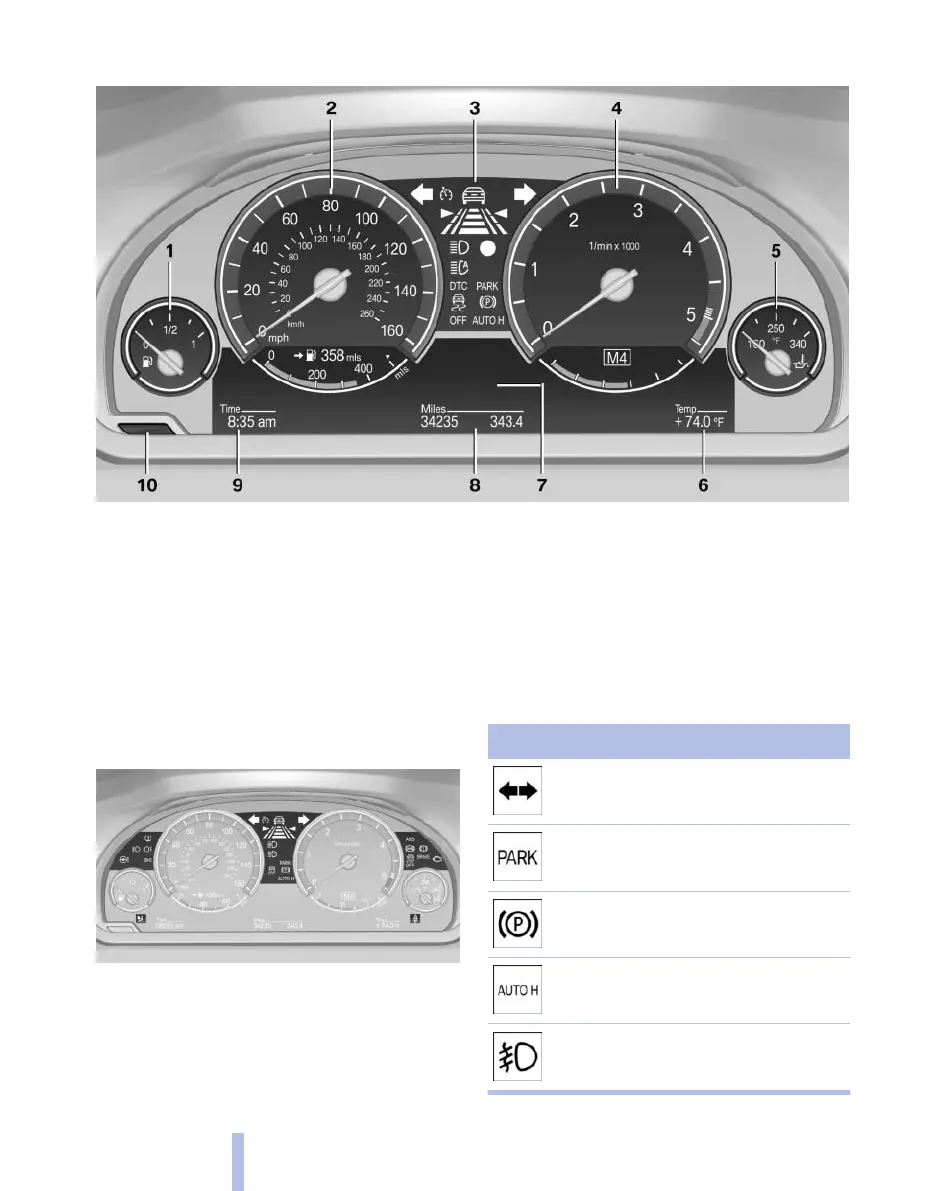

1 Fuel gauge 76
2 Speedometer
3 Indicator/warning lamps 14
4 Tachometer 77
5 Engine oil temperature 77
6 External temperature 77
7 Electronic displays 16
8 Miles, trip miles 78
9 Clock 81
10 Reset miles 78
Indicator/warning lamps
Instrument cluster
The indicator and warning lamps can light up in
a variety of combinations and colors.
Several of the lamps are checked for proper
functioning
when the engine is started or the ig‐
nition is switched on, and light up briefly in the
process.
Overview: indicator/warning lamps
Symbol Function or system
Turn signal
Parking brake
Parking brake in Canadian models
Automatic Hold*
Front fog lamps*
