Sensors and Switches

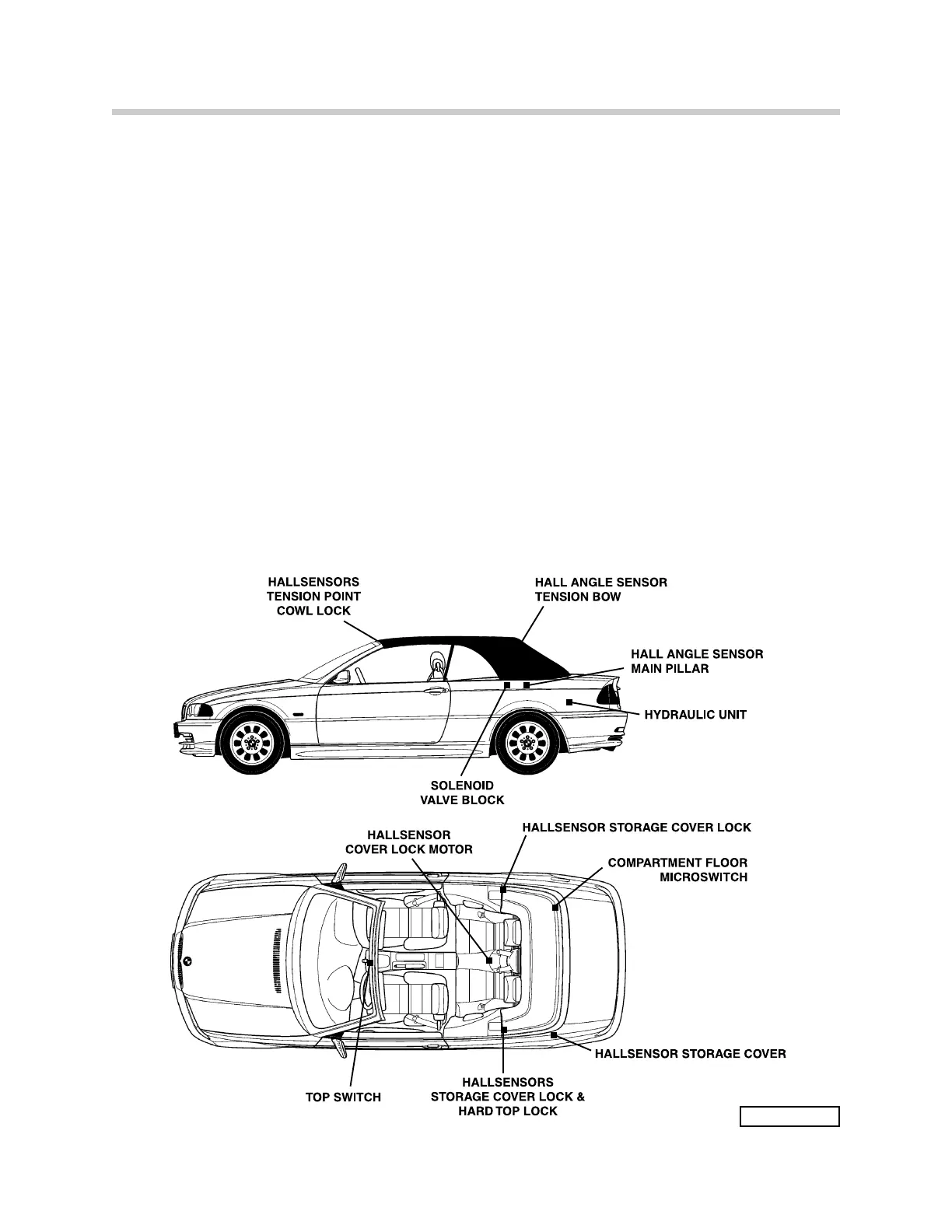

The hall sensors, angle hall sensors and micro switches provide feedback status to the
CVM and GM for soft top positioning and top sequencing during operation.
Hall sensors:
• Cowl Lock hall sensor
• Tension Point hall sensor
• Two Storage Compartment Cover Locks hall sensors
• Storage Compartment Cover hall sensor
• Storage Compartment Cover Motor hall sensor
• Hard Top Lock hall sensor
Angle Hall sensors:
• Tension Bow angle hall sensor - W1
• Main Pillar angle hall sensor - W2
Micro Switch
• Storage Compartment Floor micro switch
