E85 Instrument cluster
- 19 -
- Acoustic generators
Depending on the incident, the acoustic alarms are output once
or intermittently.
The following acoustic alarms are new:
- Seat-belt reminder (for EU)
The seat-belt reminder is issued by the instrument cluster after
a distance of 100 metres has been covered or during driving
(possible through fitting of seat-belt buckles, which were
previously only used in US vehicles)
- Coolant overtemperature
- Fuel-reserve threshold
Seat-belt reminder (for EU)
The seat-belt reminder for EU is output for the first time for the
driver's and passenger sides. Here the SBE seat-occupancy
detector identifies whether the passenger seat is occupied or
not.
An intermittent acoustic alarm is triggered for max. 90 seconds
after a distance of 100 metres has been driven.
The lock information is transmitted via the K bus.

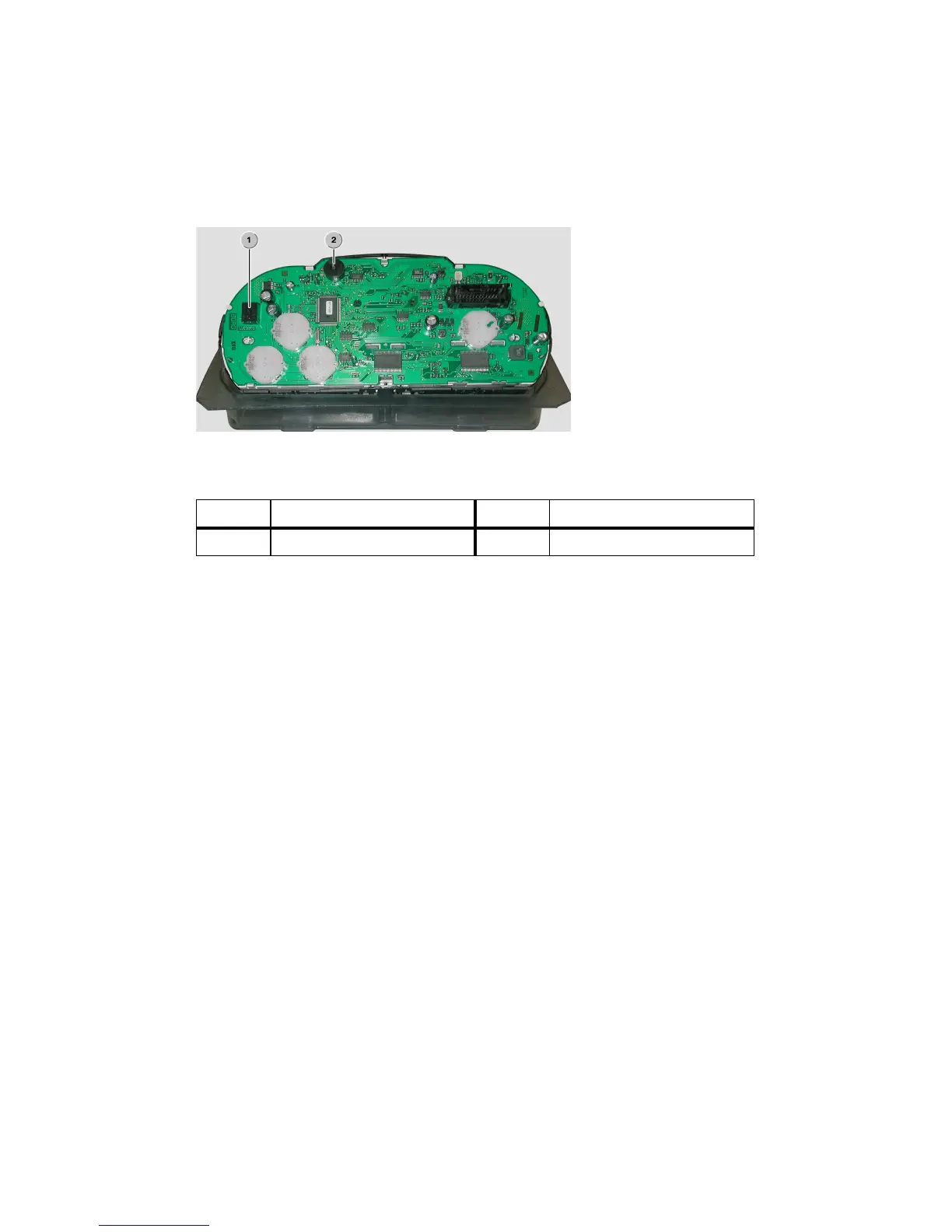

Fig. 8: E85 Acoustic generators
The instrument cluster
incorporates
2 acoustic gener-
ators. The acoustic
relay for the turn-
signal flashers signals
the flasher rate. An
internal speaker
outputs all further
acoustic alarms.
Index Explanation Index Explanation
1 Acoustic relay 2 Internal speaker
KT-10313
