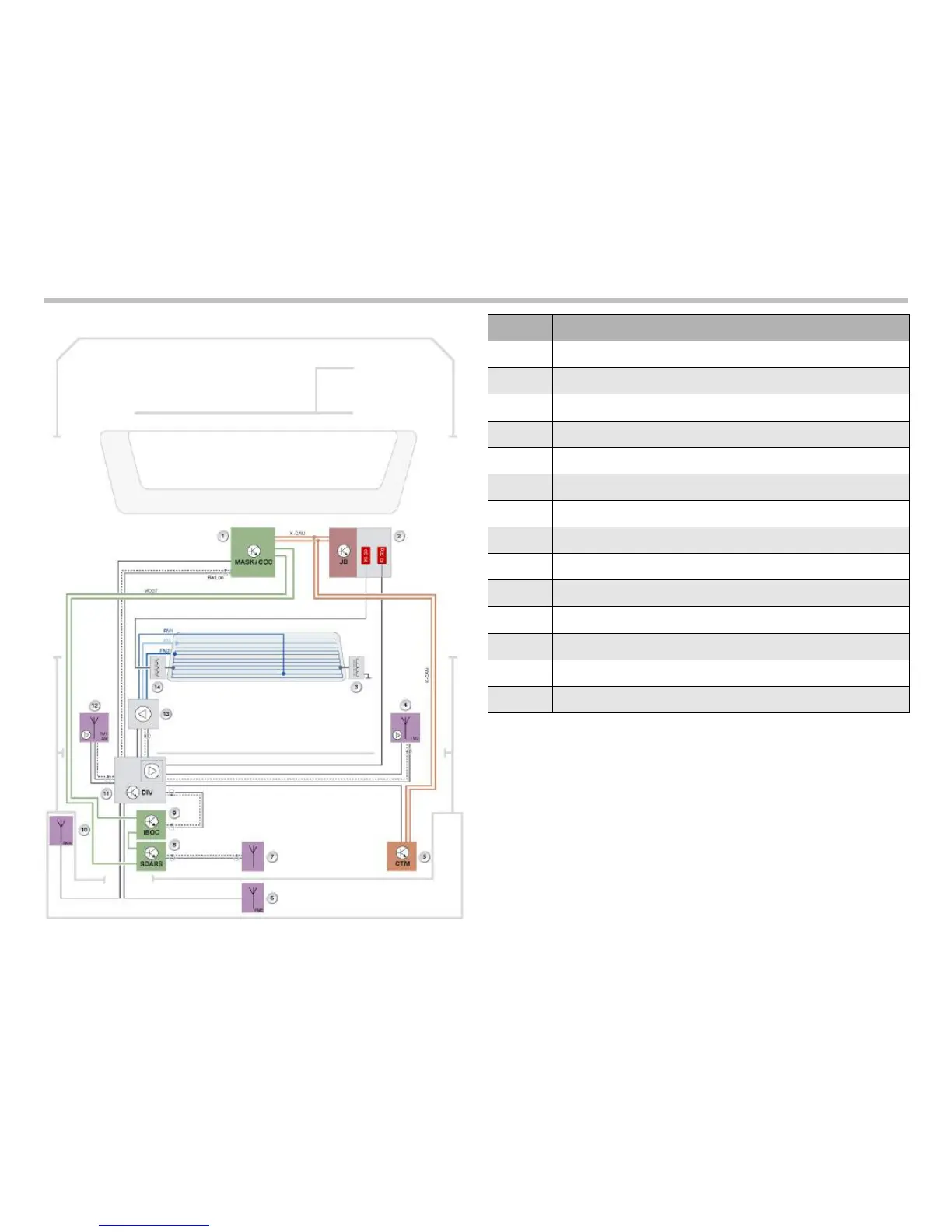

Schematic for SDARS and IBOC
E93 Complete Vehicle Workbook
35
Index Explanation
1
CCC
2
Junction box
3
Rejector circuit, negative
4
FM3 antenna with amplifier in right hand shoulder trim
5
Convertible Top Module
6
FM2 antenna in bumper
7
SDARS antenna on rear lid
8
SDARS receiver (satellite tuner)
9
IBOC receiver (digital radio tuner)
10
FM4 antenna in bumper
11
FM antenna diversity module
12
AM/FM1 antenna with amplifier in left hand shoulder trim
13
AM/FM antenna amplifier in rear window
14
Rejector circuit, positive
