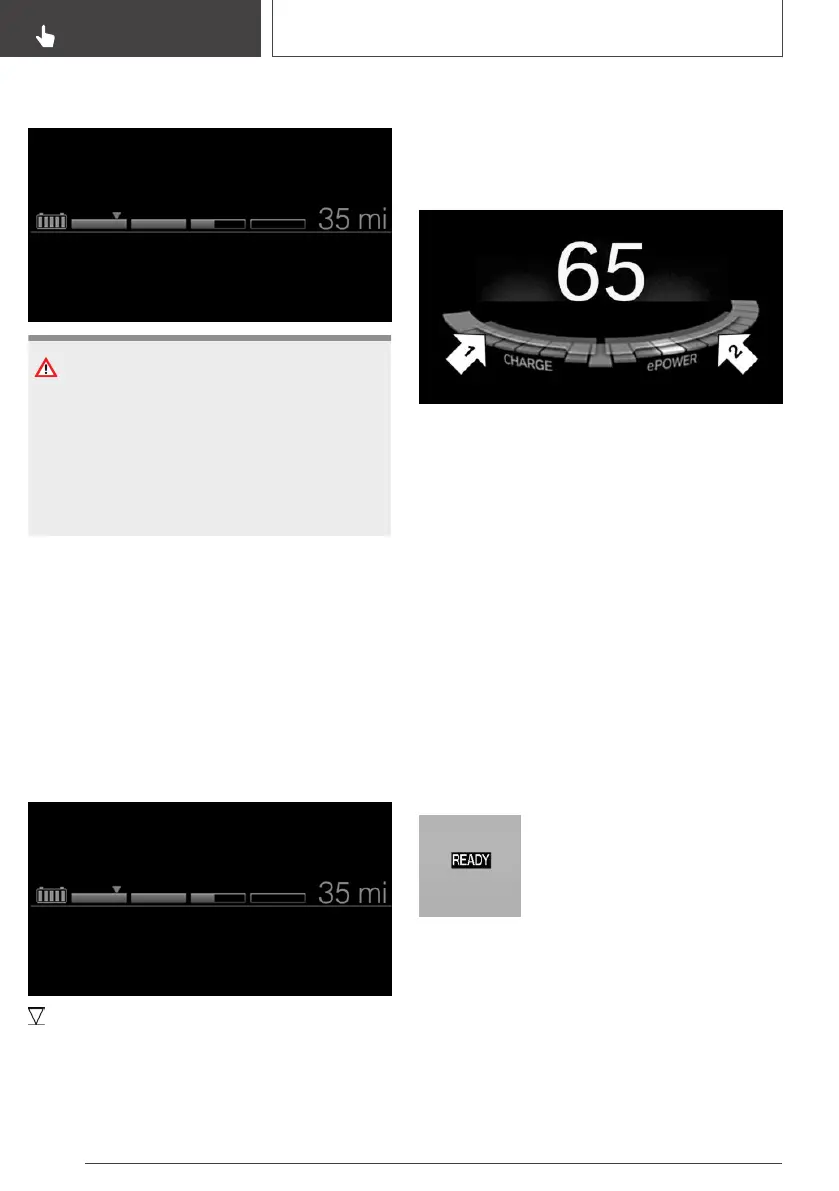

High-voltage battery charge indicator
WARNING
Even when it is indicated that the high-voltage
battery is discharged, the high-voltage system
is always still under high voltage. There is a risk
of fire or a risk of injury. Do not touch or change
live parts, for instance orange high-voltage ca‐
bles, even when the batteries are discharged.
The fill level bars indicate the available charge
state of the high-voltage battery when standby
state and drive-ready state are switched on.
With a low range the color of the charge state in‐
dicator switches from blue to yellow.
In addition, the range for electric driving is dis‐
played.
With Range Extender: maintaining charge
state
The arrow on the charge state indicator des‐
ignates the Range Extender activation time. If
Range Extender is activated, the current charge
state of the high-voltage battery is maintained.
▷ Gray arrow: Range Extender deactivated.
▷ White arrow: Range Extender activated.
Performance display
The accelerator pedal indicator in the perform‐
ance display indicates the current efficiency of
your driving style. The efficient range of the per‐
formance display is colored blue.
Accelerator pedal indicator in the CHARGE
range, arrow 1: display for energy recovered by
coasting or when decelerating.
Accelerator pedal indicator in the ePOWER
range, arrow 2: display when accelerating.
The blue ePOWER range in the display is re‐
duced if the high-voltage battery is heavily dis‐
charged. The available power is automatically ad‐
justed.
Optimizing the driving style, refer to page 198.
Drive-ready state: READY
The READY display indicates that
the vehicle is ready for driving.
Drive-ready state in detail, refer to
page 101.
