12 Range Extender fuel gauge 121
13 Messages, for instance Check Control
14 Display, drive mode 102

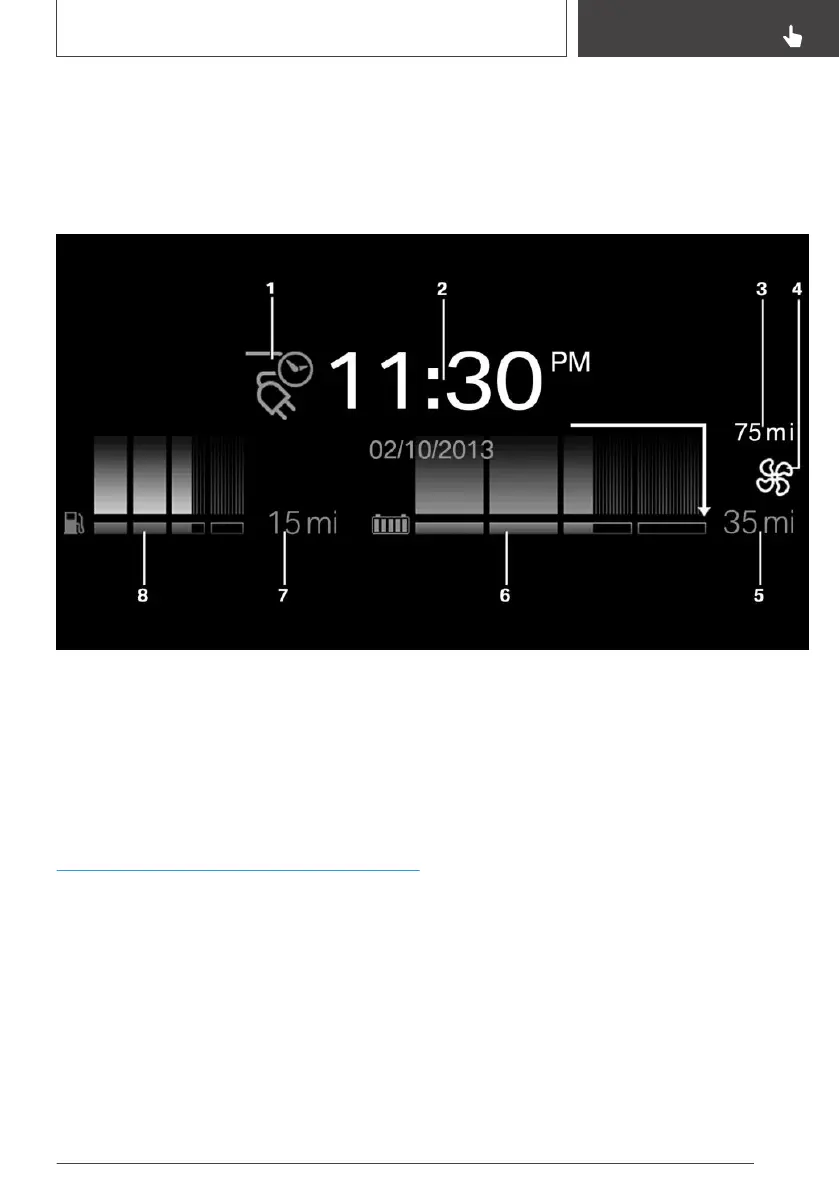

Charging screen
1 Charging status 218
2 End of charging time 218
Departure time with timer 219
3 Maximum electrical range 218
4 Stationary climate control 219
5 Range for electric driving 218
6 Charge state 116
7 Range Extender range 122
8 With Range Extender: fuel gauge 121
Displaying the eDRIVE system
Displays in the instrument cluster
Concept
The display depends on the system's operating
condition. The following functions of the eDRIVE
system are shown in the instrument cluster
▷ High-voltage battery charge indicator.
▷ Electric driving: ePOWER.
▷ Energy recovery: CHARGE.
▷ Drive-ready state: READY.
