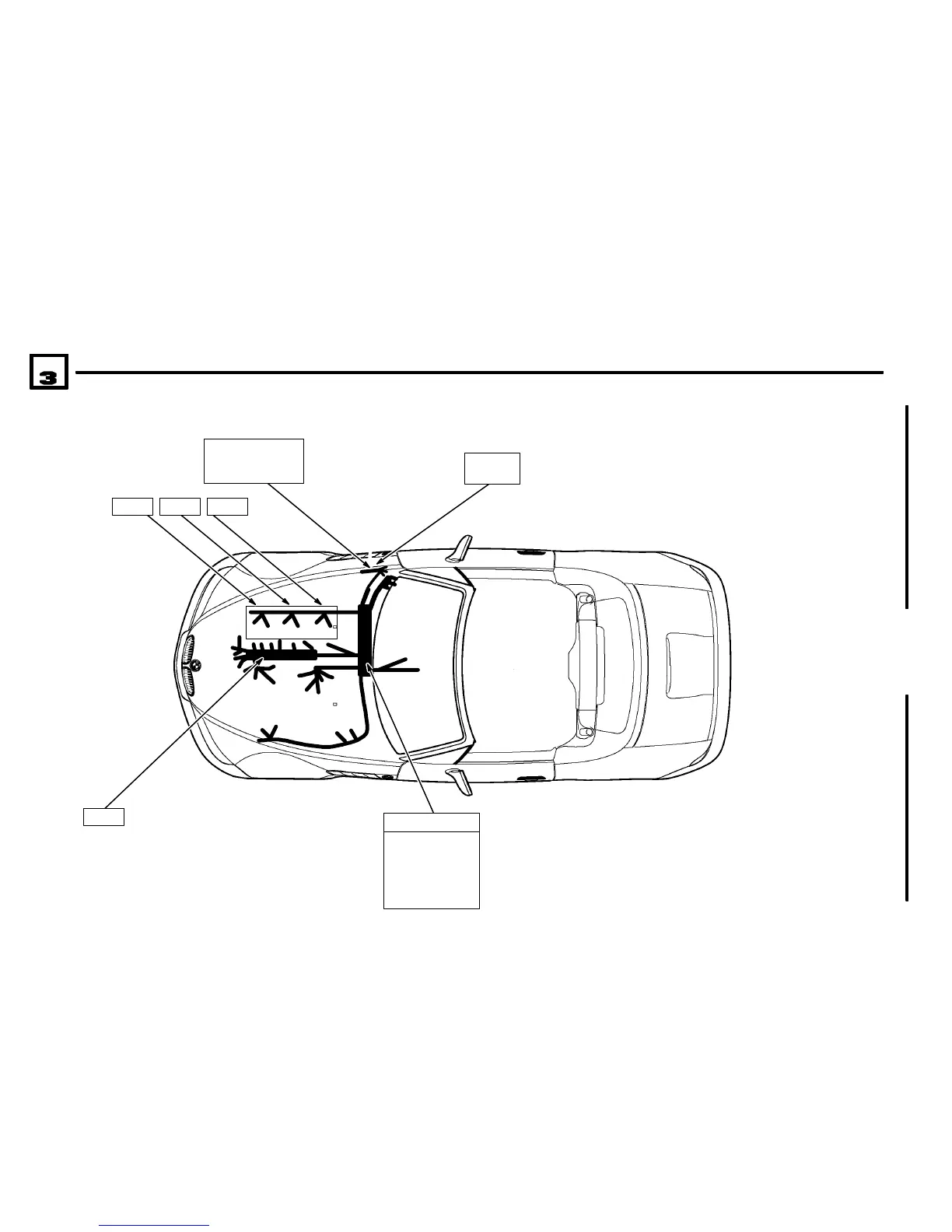

SPLICE LOCATION VIEWS

ENGINE HARNESS S54

01/01

8000.0Ć

2001

X6970

SPLICE PANEL

X6458 D

X6960 D

X6962 D

X6963 D

X64619 D

X5284 D

X5285 D

X5286 D

X6461 D

X6462 D

X6475 D

X6810 D

X6831 D

X6965 D

X6966 D

X6833

X6900

X6491 D

X6495 D

Table of Contents2
Index4
Cellular Telephone4
Analog Clock4
Electro-Hydraulic5
- Convertible Top5
Heated Seats6
Headlight Washer (Sra)6
- Schematics12
- General Conventions13
- Symbols14
- Power Distribution Chart18
- Front Power Distribution Box18
- In E–Box19
- Relay Panel under LH Side of Dashboard20
- B+ Junction Point under LH Side of Dashboard21
- Fuse Chart22
- Fuses 1 to 2922
1290.0 E-Box Fan22
3452.2 Dynamic Stability Control22
- Fuses 30 to 20525
- Power Distribution28
- Z3 Versions Early Production31
- Z3 Versions Late Production32
- M Versions33
- Fuse Details37
- Fuses 1, 2, 3, and 437
- Fuses 5, 6, 7, and 838
- Fuses 9 and 1039
- Fuses 11, 12, and 1340
- Fuses 14, 15, 16, and 1841
- Fuses 19, 20, 21, and 2242
- Fuse 2343
- Fuses 24 and 2544
- Fuse 2645
- Fuses 27, 29, and 3047
- Fuse 3148
- Fuses 32, 33, 34, and 3549
- Fuses 36, 37, 38, and 3950
- Fuses 40 and 4151
- Fuses 43, 44, and 4552
- Fuses 46 and 4853
- Fuses 51, 52, 53, and 5454
- Fuses 51, 52, and 5355
- Fuses 201 and 20256
- Fuses 203, 204, and 20557
- 4 Ground Distribution60
- Ground X16560
- Ground Distribution61
- Ground X16661
- Grounds X170 and X49263
- Grounds X494, X861, X1116, and X144164
- Ground X645465
- Grounds X6455 and X645667
- Ground X645668
- Ground X963369
- (Zke IV)71
  - Ground X1001071
  - Ground X1300472
  - Ground X1300673
- M Roadsterm Coupe74
  - Grounds X13016 and X1303275
  - Ground X1817076
- (6-Cylinder M54)78
  - Block Diagram78
  - Data Link78
- System (Air Bag)78
  - RXD and TXD79
  - Data Link Connector, Pins 1, 7, 14, and 1680
  - Data Link Connector, Pins 2 and 19, and OBD II Connector81
  - Data Link Connector (X6002)82
  - Engine Control System MS43 (6–Cylinder M54)83
  - Z3 Versions83
  - Pin Assignments (Z3 Versions)84
  - X6000184
  - X6000284
  - X6000385
  - X6000487
  - X6000589
  - Engine Control System MS43 (6–Cylinder M54)92
  - Engine Control System MSS54 (6–Cylinder S54 B32)100
  - Pin Assignments (M Versions)101
  - Charging System121
  - Start122
  - E–Box Fan126
  - Electronic Transmission Control (EGS: A5S 360R)127
  - Pin Assignments128
  - X70001128
  - X70003128
  - X70004130
  - Shift Lock, Data Link, Kick–Down Switch134
  - Supplemental Restraint System (Air Bag)137
  - X74138
  - Side Air Bag141
  - Slip Control (ABS/ASC)144
  - X1170145
  - Dynamic Stability Control (DSC III)149
  - Z3 Versions Early Production and M Versions149
  - Pin Assignments (Z3 Versions Early Prod. and M Versions)150
  - X1746150
  - Dynamic Stability Control (DSC MK 60)158
  - Pin Assignments (Z3 Versions Late Production)159
  - X18303159
Tire Inflation System167
- Tire Pressure Warning System (RDW)168
- Power Mirrors169
- Outside Mirror169
- Electrochrome Rear View Mirror171
Power Mirrors171
- Inputs, Drive–Away Protection172
- ZKE Central Locking (ZV)172
- Input Details173
Zke Central Locking (Zv)173
- Output Details174
- ZKE Power Windows (FH)178
Zke Power Windows (Fh)179
- Power Seats181
- Driver’s Seat181
- Passenger’s Seat182
Power Seats182
Heated Seats185
5410.5 Power Tilt Sunroof186
- Electro–Hydraulic Convertible Top187
- Central Body Electronics (ZKE IV)189
- X10182190
- X13252191
- X13253191
- X13254192
Central Body Electronics194
- Horn196
- Drive–Away Protection (EWS III)197
Drive-Away Protection199
- Wiper/Washer Module (WWM)201
- High201
Wiper/Washer Module (Wwm)202
- Wiper/Washer (HIGH)203
- Headlight Washer (SRA)204
- Windshield Washer Jet Heaters205
- Instrument Cluster206
- X16207
- X17208
- X271209
- Indicators210
Instrument Cluster210
Anti-Theft System (Alpine)211
- (Dsc Mk 60)213
Light Switch Details219
- Headlights/Fog Lights222
- Turn/Hazard Lights226
6314.0 Park/Tail/Underhood Lights230
- License Plate/Luggage Compartment Lights234
- Canada234
- Usa236
- Back up Lights238
- Brake Lights239
- Interior Lights240
- Interior Accessories241
- Crash Control Module242
- Rear Window Defogger245
- Integrated Heating–And Climate Control246
- X18349248
- X18350248
- Power, Air Flow Control250
- Compressor Controls252
- Auxiliary Fan253
- Compressor Control and Water Supply256
- Radio/Hifi258
- Coupe258
Radio/Hifi259
- Coupe with Harman Kardon Sound System260
- Coupe with Hifi261
- Roadster with Hifi262
- Roadster with Harman Kardon Sound System265
- Cellular Telephone (Provisions)269
- Cruise Control (Tempomat)270
Cruise Control (Tempomat)271
Anti–Theft System (DWA)273
Anti-Theft System (Dwa)274
Anti–Theft System (Alpine)277
Board Computer (Bc - Low)279
- Remote Control ZV/DWA280
- Component Location Chart281
Component Location Chart282
Component Location Views316
Component Location Views317
Splice Location Views349
Splice Location Views350
- Body Harness352
- Engine Harness M54354
- Engine Harness S54355
- Connector Views356
Connector Views357

Brand	BMW
Model	M COUPE 2002
Category	Automobile
Language	English

BMW M COUPE 2002 Electrical Troubleshooting Manual

Table of Contents
