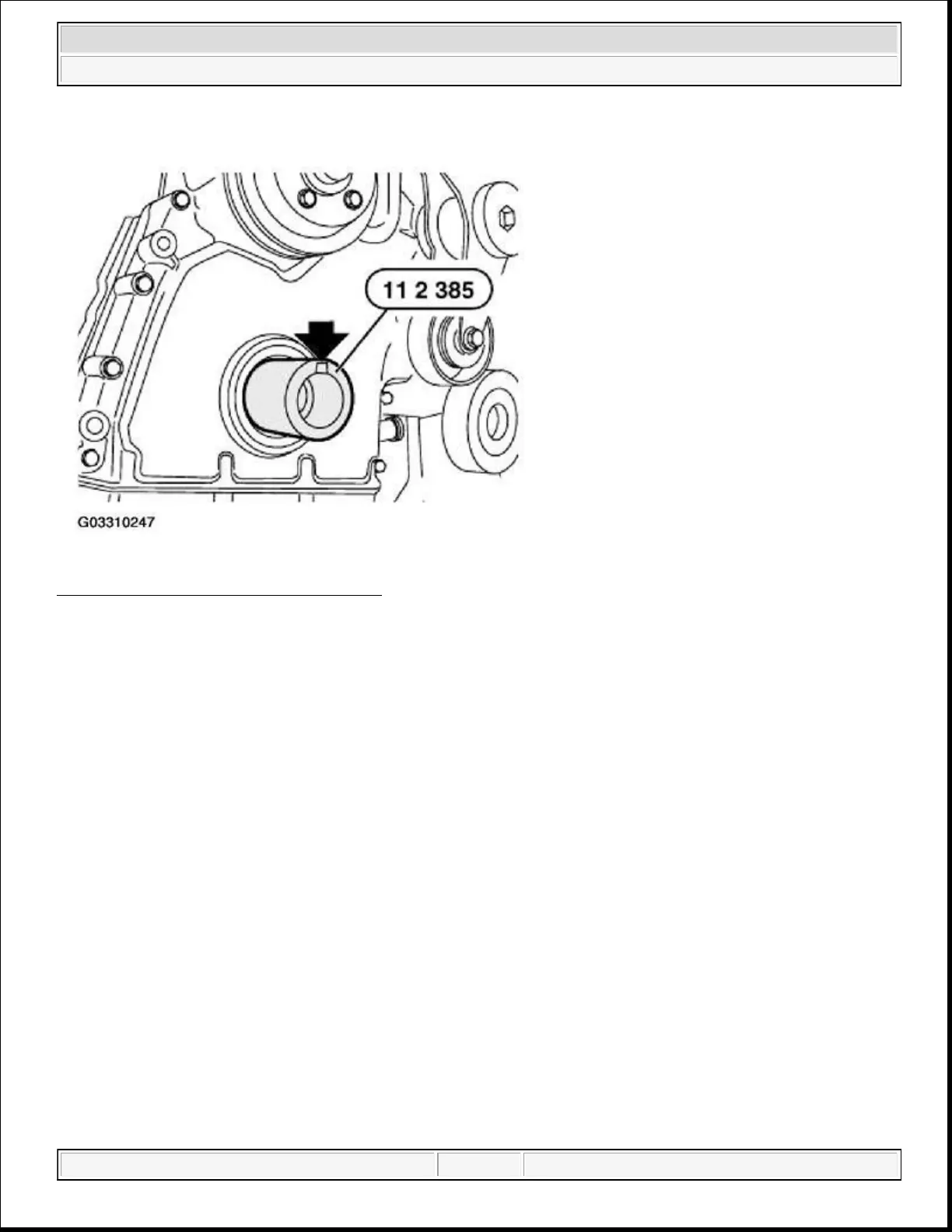

Fig. 80: Aligning Groove Of Special Tool
Courtesy of BMW OF NORTH AMERICA, INC.
Align groove of special tool 11 2 385 to featherkey of crankshaft.
Screw in special tool 11 2 380 until it has made firm contact with radial seal.
NOTE: Special tool 11 2 385 centers special tool 11 2 380.
2006 BMW X5 30i
2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54)
sábado, 2 de octubre de 2021 11:25:51 p. m. Page 85 © 2011 Mitchell Repair Information Company, LLC.
