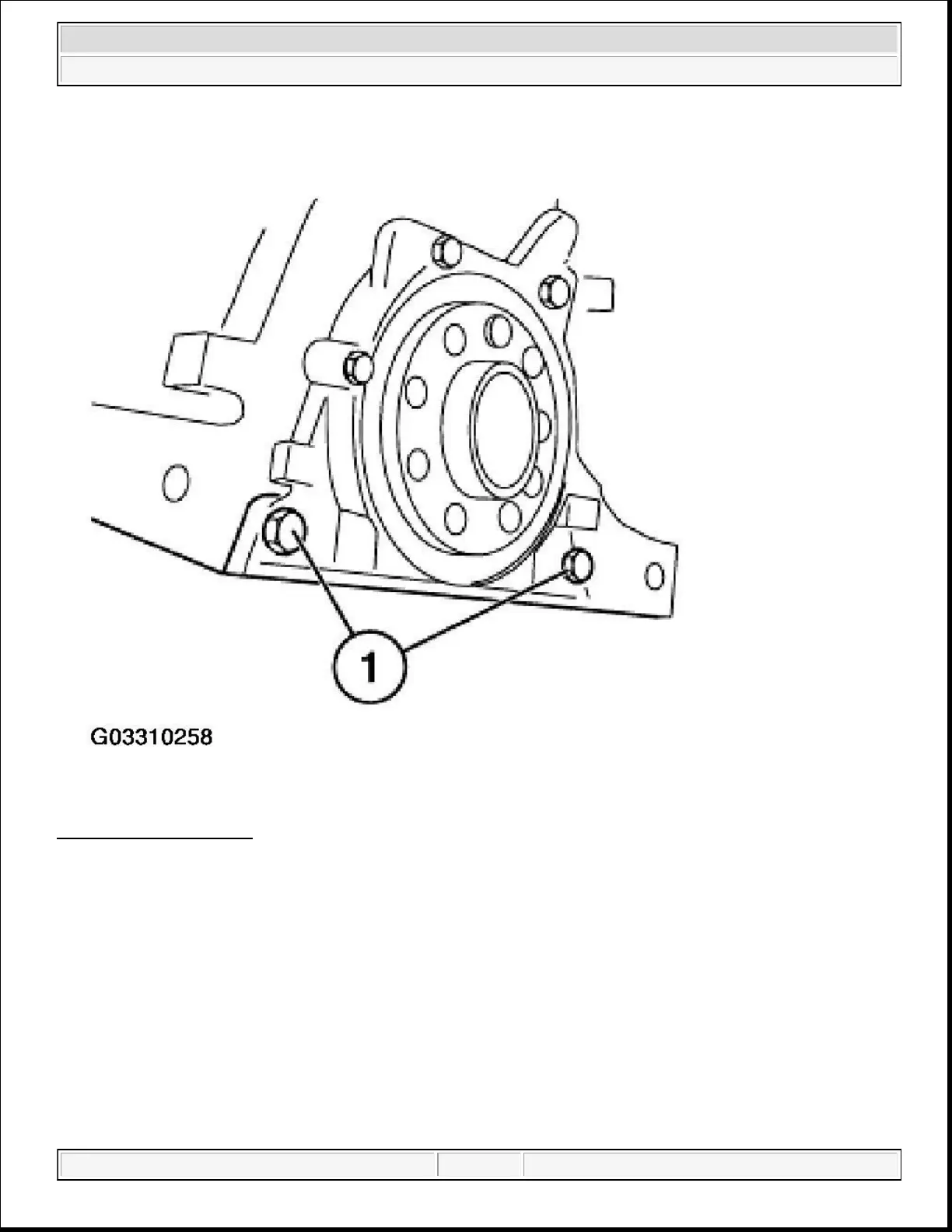

Fig. 91: Locating Screws
Courtesy of BMW OF NORTH AMERICA, INC.
Insert all screws and tighten down end cover.
The old and new radial seal versions can be installed with the support bushing (1).
NOTE: Keep the support bushing (1) of the new radial seal version as a "special tool",
then render the special tool 11 2 213 unusable and dispose of it.
2006 BMW X5 30i
2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54)
sábado, 2 de octubre de 2021 11:25:51 p. m. Page 96 © 2011 Mitchell Repair Information Company, LLC.
