BMW M54 - CRANK SHAFT WITH BEARING; REPLACING CRANKSHAFT (M52; S52; M52 TU; M54; M56)

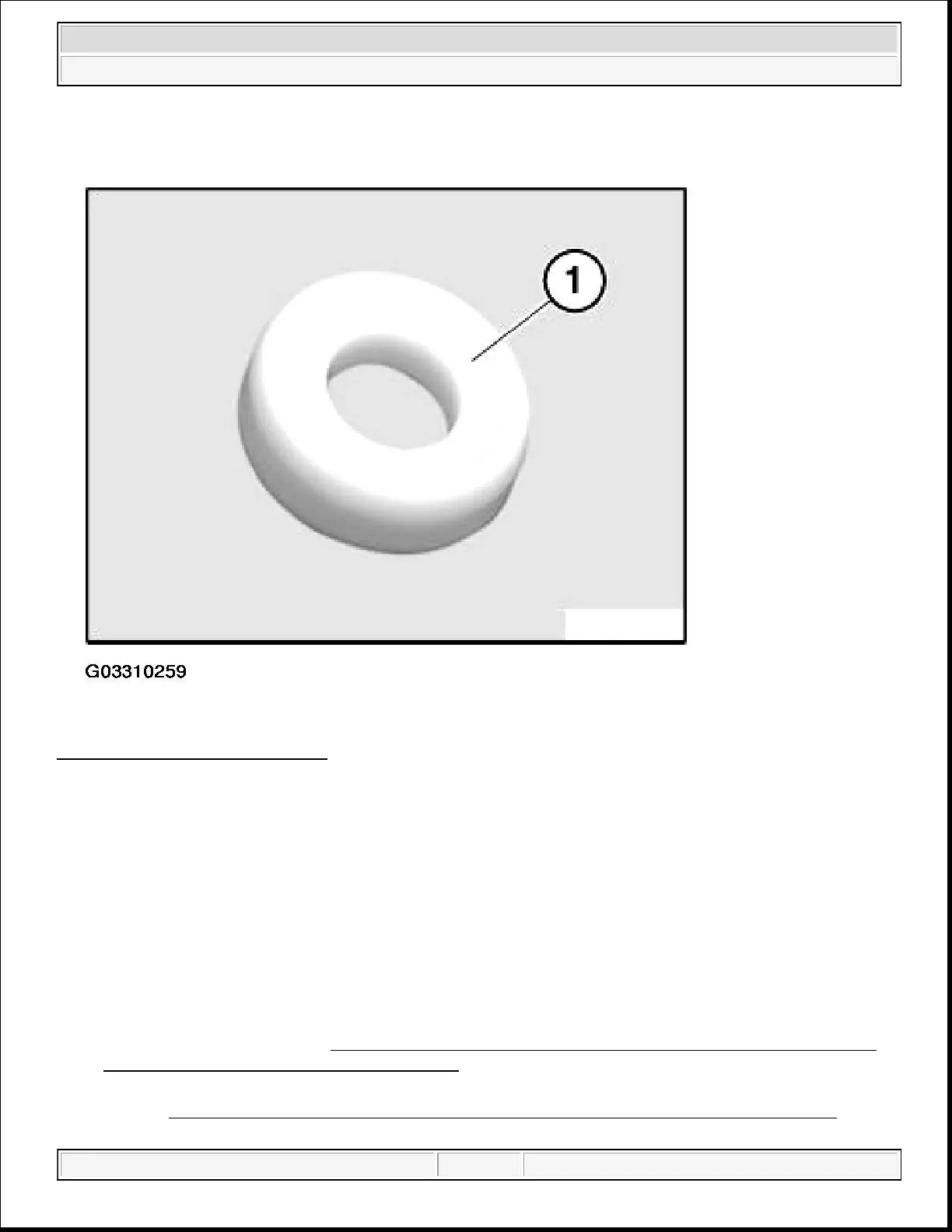

Fig. 92: View Of Support Bushing
Courtesy of BMW OF NORTH AMERICA, INC.
CRANK SHAFT WITH BEARING
11 21 500 REPLACING CRANKSHAFT (M52 / S52 / M52TU / M54 / M56)
(engine removed)
Necessary preliminary tasks:
 Removing cylinder head
 Removing lower timing case cover
 Removing all pistons, refer to 11 25 530 REMOVING AND INSTALLING OR REPLACING ALL
PISTONS (M52 / S52 / M52TU / M54 / M56)
 Remove end cover at rear; this operation is described in the section Replacing crankshaft radial seal.
Refer to 11 14 151 REPLACING CRANKSHAFT RADIAL SEAL (TRANSMISSION SIDE).
