BMW Night Vision
Axial Camera Adjustment

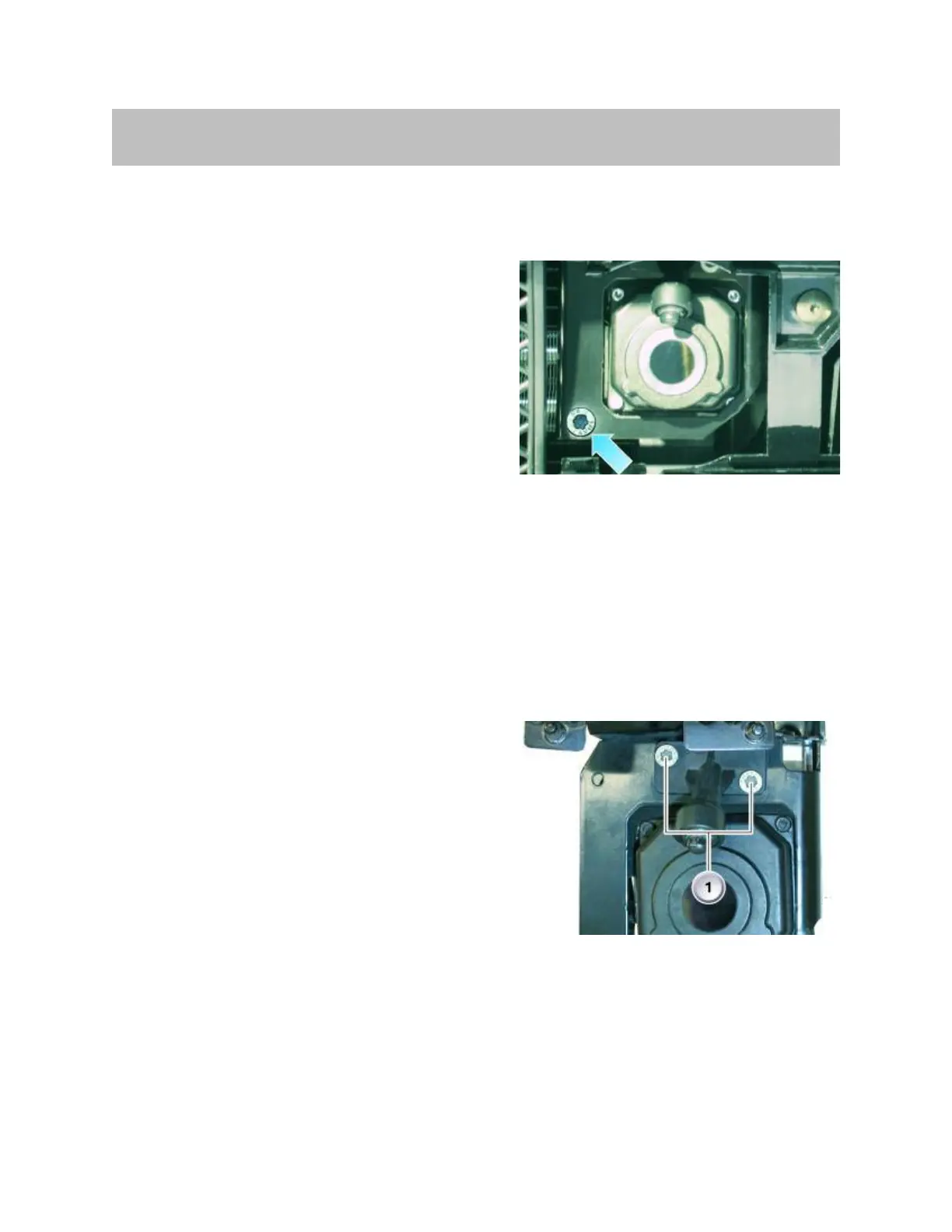

The camera can be axially readjusted by means of an adjusting screw on the housing.
The following procedure must be performed:
• Detach the left ventilation grille from the
front spoiler
• Position the headlight aiming device in
front of the vehicle
• Engage a Torx screwdriver and move the
camera to the desired position
• Reassemble all parts that have been
removed in reverse order
Vertical Camera Adjustment
Vertical camera adjustment should be adjusted until the horizontal plane is centered on
the CD/CID. This adjustment is only possible through a test plan in the BMW tester.
Replacing Camera Washer Jet
A washer jet with a direct connection to the headlight washer system for cleaning the
lens is mounted on the camera.
Follow the procedure below to replace the
washer jet:
• Detach the left ventilation grille from the
front spoiler
• Release the two Torx screws (1)
• Release the hose clamp on the connecting
hose to the headlight washer system and
det
ach
the washer
jet towards the front
• Reinstall all parts that have been removed
in reverse order
Note: Please refer to the repair instructions for more detailed information on
removing the camera and washer jet.
