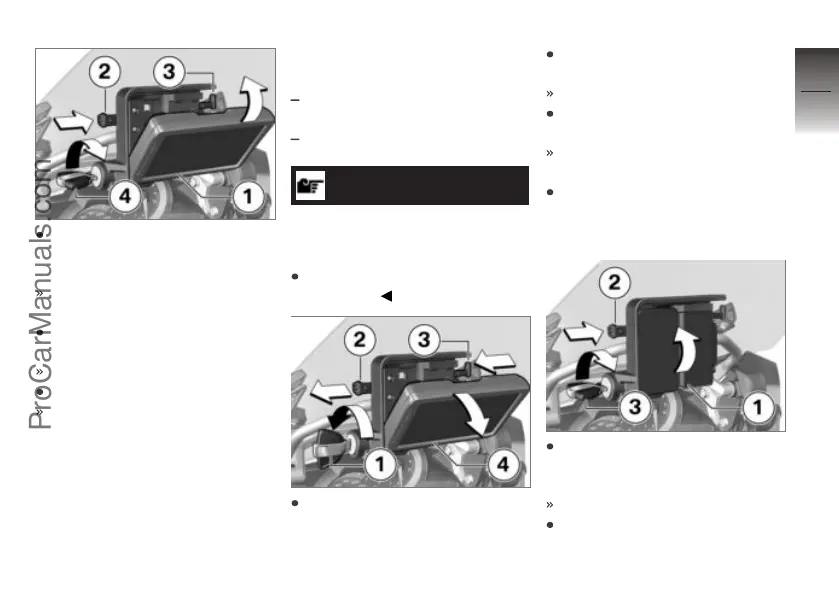

Mount navigation system 1 in
lower area and swing toward
rear with a rotating movement.
Navigation system audibly en-
gages.
Slide shut-off lock 2 com-
pletely to right.
Locking device 3 is locked.
Turn ignition key 4 clockwise.
Navigation system is locked
and ignition key can be re-
moved.
Remove navigation
system and install cover
with preparation for navigation
system
OE
with navigation system
OA
ATTENTION
Dust and dirt on the contacts
of the Mount Cradle
Damage to the contacts
Reinstall the cover after end of
each drive.
Turn ignition key 1 counter-
clockwise.
Pull shut-off lock 2 completely
to left.
Locking device 3 is unlocked.
Slide locking device 3 com-
pletely to left.
Navigation system 4 is un-
locked.
Remove navigation system 4
downward with a tilting move-
ment.
Mount cover 1 in lower area
and swing upward with a rotat-
ing movement.
Cover audibly engages.
Slide shut-off lock 2 to right.
9
157
z Accessories
ProCarManuals.com

BMW R 1200RS 2016 Specifications

General

Displacement	1170 cc
Bore x Stroke	101 mm x 73 mm
Max Torque	125 Nm at 6, 500 rpm
Compression Ratio	12.5:1
Fuel System	Electronic intake pipe injection
Final Drive	Shaft drive
ABS	BMW Motorrad ABS
Top Speed	Over 200 km/h
Traction Control	Standard
Tires Front	120/70 ZR17
Tires Rear	180/55 ZR17
Max Power	125 hp (92 kW) @ 7750 rpm
Transmission	6-speed
Frame	Two-section frame, front- and bolted-on rear frame
Rear Suspension	Cast aluminium single-sided swing arm with BMW Motorrad Paralever
Front Brakes	Dual disc brake, diameter 320 mm, 4-piston calipers
Rear Brakes	Single disc brake, diameter 276 mm, 2-piston caliper
Seat Height	820 mm
Fuel Capacity	18 liters
Dry Weight	231 kg
Wheelbase	1530 mm
Engine Type	Air/liquid-cooled four-stroke flat twin engine, double overhead camshaft, one balance shaft
