202 MAINTENANCE

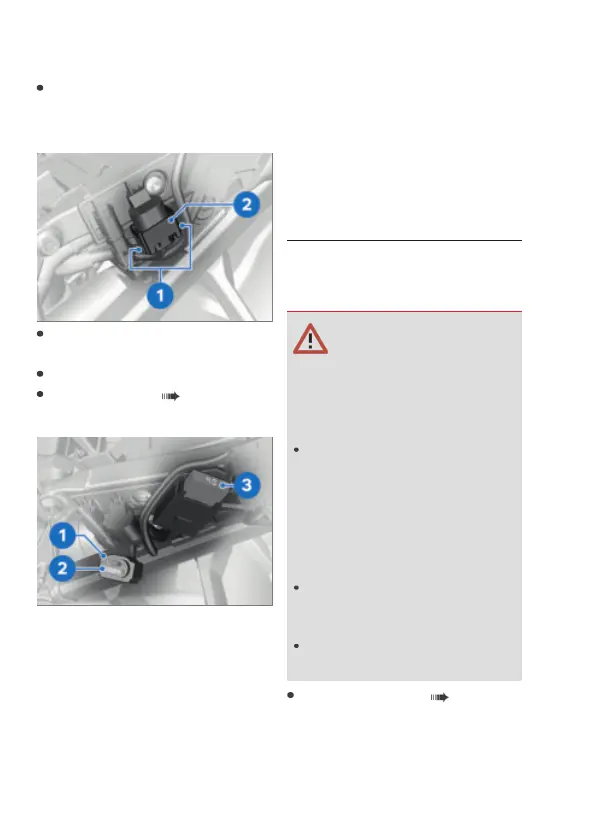

Re-insert fuse box 2. Make
sure that locks 1 engage on
both sides.
Install side cover 2 in holding
clips 3.
Install screw 1.
Install the seat ( 97).
Fuse assignment
1 15 A
Instrument cluster
Anti-theft alarm (DWA)
Ignition switch
Diagnostic socket
2 7.5 A
Multifunction switch, left
Tyre pressure monitoring
(RDC)
Sensor box
3 40 A
Alternator regulator
DIAGNOSTIC CONNECTOR
Disengaging diagnostic
socket
CAUTION
Incorrect disconnection of
the diagnostic socket for on-
board diagnosis
Malfunctions of the vehicle
Do not disconnect the
diagnostic socket or allow
it to be disconnected
except in the course of a
BMW Motorrad service by
a specialist workshop or by
other authorised persons.
Have the work carried out
by appropriately trained per-
sonnel.
Comply with the stipulations
of the vehicle manufacturer.
Remove the seat ( 97).
