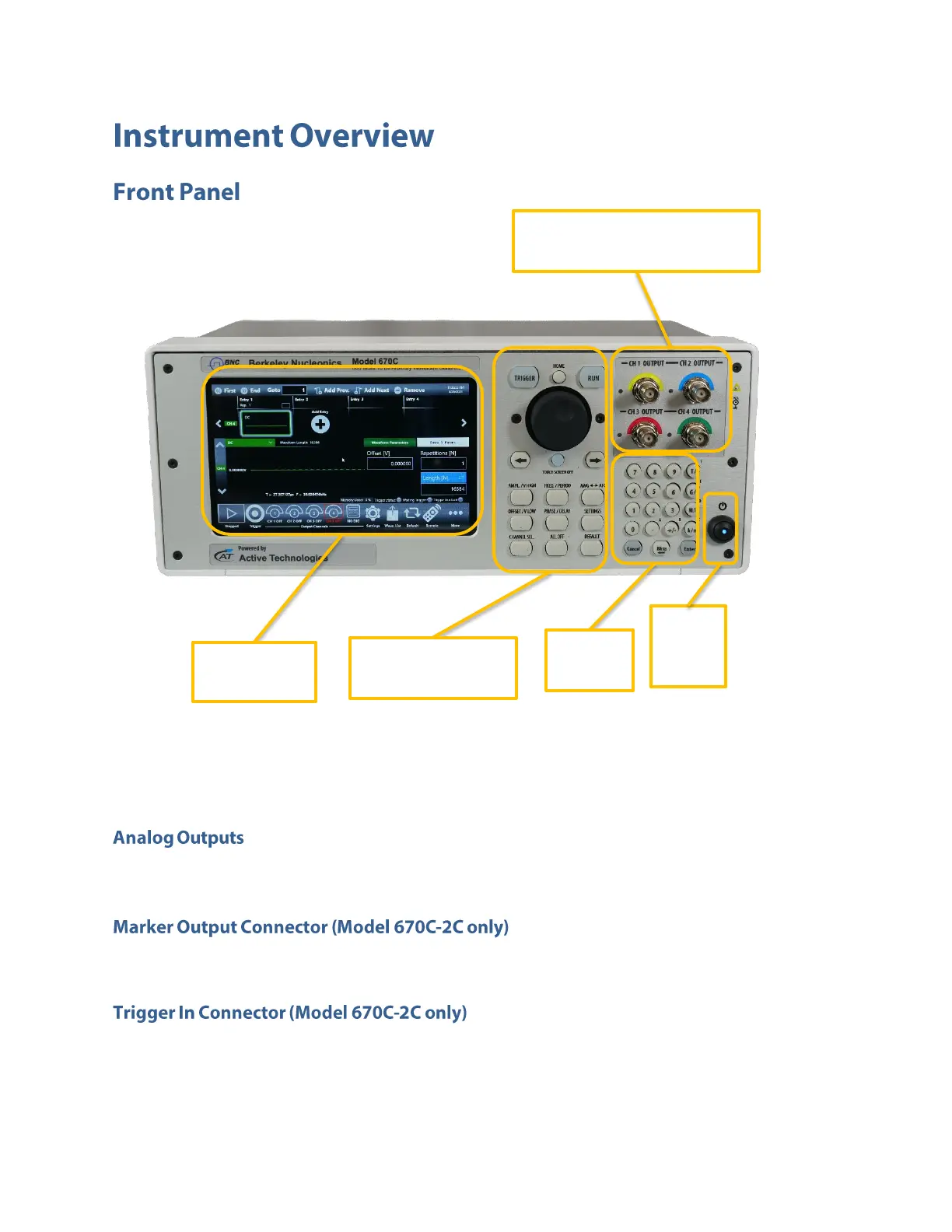

BNC 670C - Instrument Overview; Front Panel

Model 670C Berkeley Nucleonics Corp. 20 of 96
Single ended analog outputs /
Marker Out - Trigger In
Power
on/off
button
7” Capacitive
Touch Screen
Soft Keyboard and
Rotary Knob
Numeric
Keypad
The Touch screen functionalities and features are described in the Simple TrueArb Application
paragraph.
The Model 670C Series instrument has two or four analog output channels, each one is single- ended
and the connector type is a standard BNC.
The Marker Out BNC connector is located on the front panel in the Model 670C-2C models. See “Auxiliary
Channels” section form more information.
The Trigger In BNC connector is located on the front panel in the Model 670C-2C models. See “Auxiliary
Channels” section form more information.
