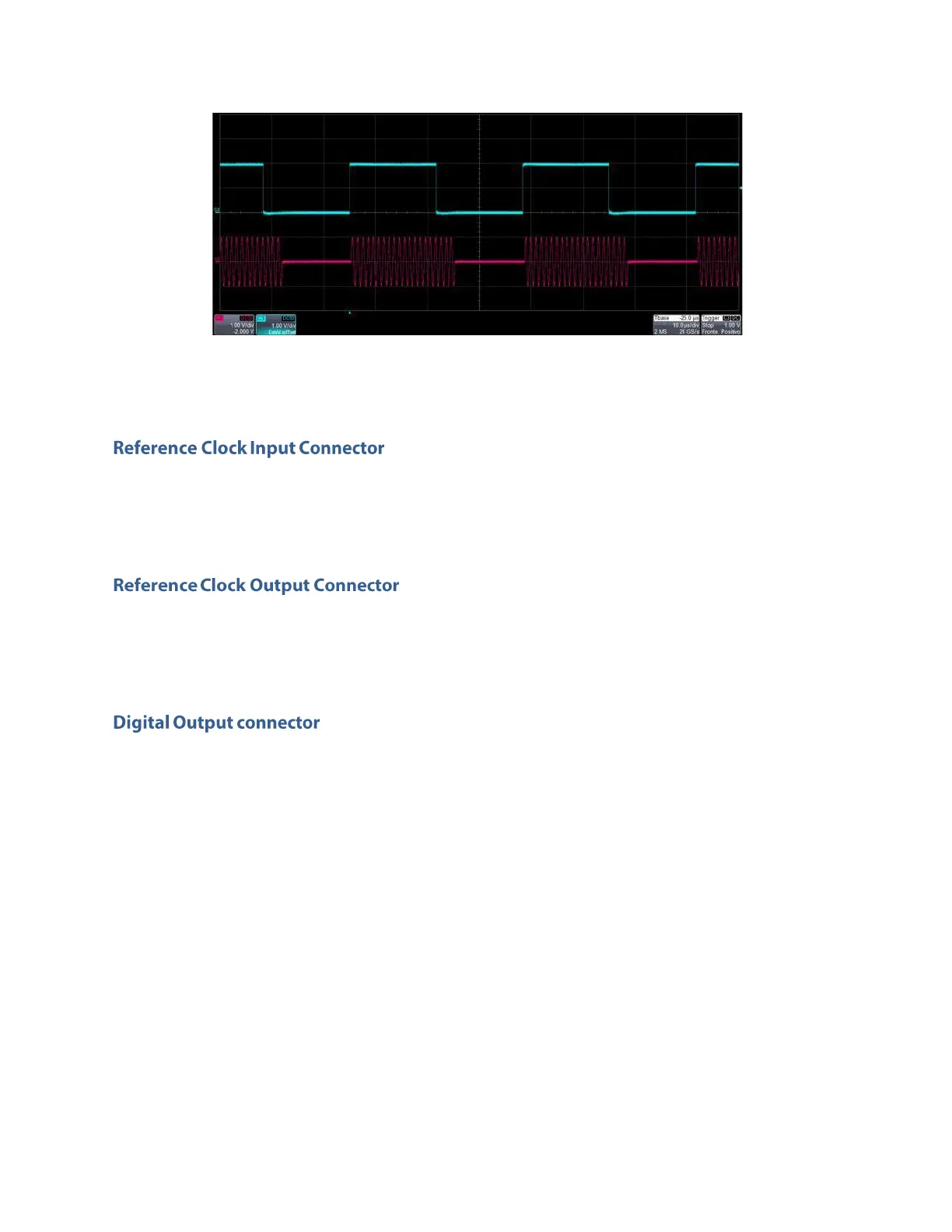

Trigger In signal (blue, top) that starts a burst of sine waveform (red, bottom)
The Model 670C can use an external clock source to generate the sampling clock frequency. This feature
allows to synchronize the generator with an external clock.
The connector type is a SMA.
This connector outputs the internal 10MHz reference clock used to synthesize the DAC sampling clock. If
the clock source is internal it produces a signal at 10MHz, if the source is external it is disabled.
The connector type is a SMA.
The Model 670C series instrument has optional 8-bit digital outputs, synchronized with the analog
channels.
The digital output pins are native LVDS standard and the maximum update rate is 600 Mbps.
The output connector is a customized version of the Mini-SAS HD standard connector. An optional
adapter cable to convert from Mini-SAS HD to SMA is available.
The mixed signal generation is a great solution for digital designs and validation, system synchronization
and DAC/ADC tests.
The digital output connector and the digital cable should be connected as shown in the picture below.
