Waveform warnings

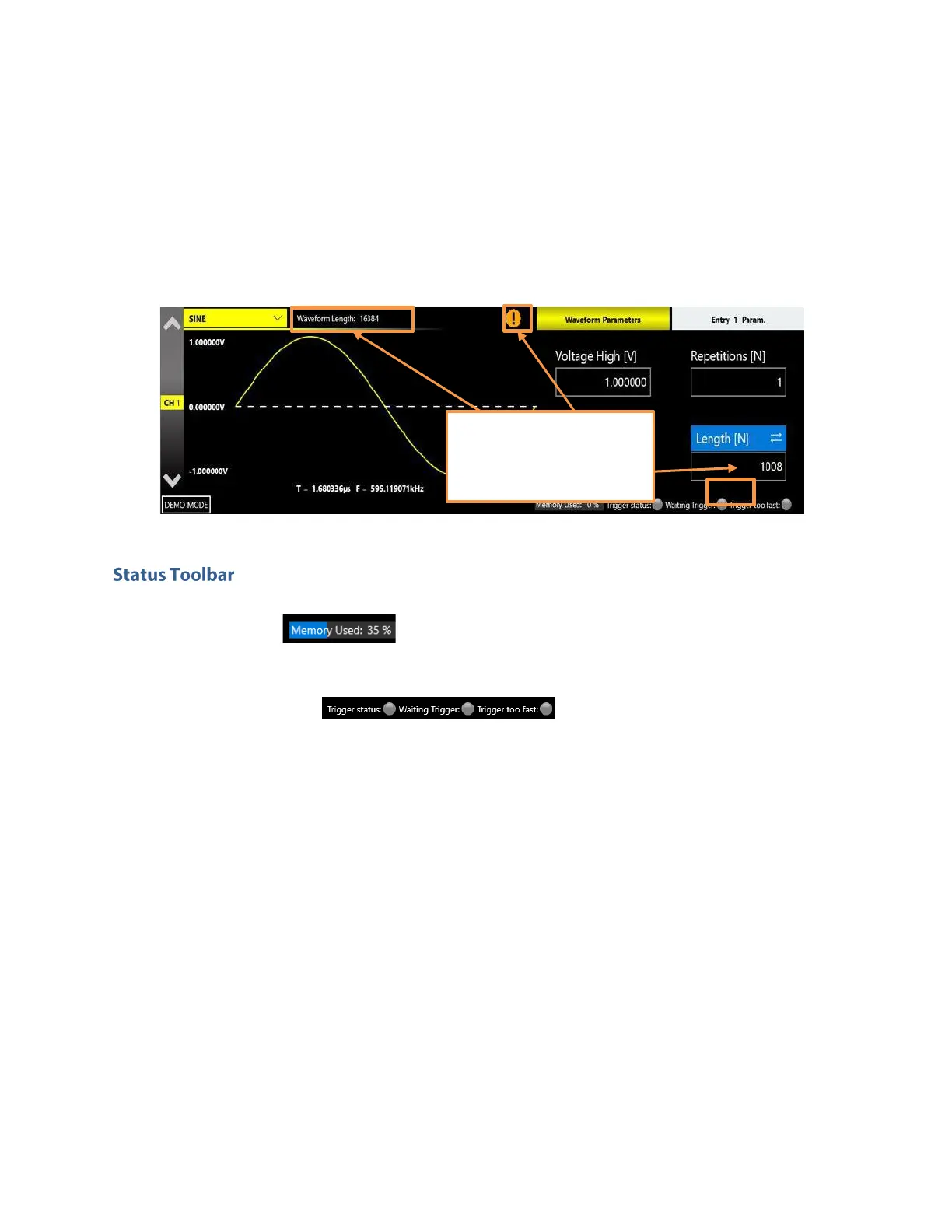

A warning is shown in the waveform graph in case the channel waveforms length is different from the
entry length. The upper warning gives is general warning that notifies this condition. Additional
warnings are displayed inside the entries where the warning condition is detected.
In presence of warnings the application will modify the mismatching waveforms during the execution to
match the entry length using the strategy specified in the Sample increasing/decreasing strategy
parameter (Device Settings -> General page)
Memory Used indicator : shows the percentage of memory used to store the
waveforms placed in the sequencer.
Trigger Information indicator: provides information on the trigger
signal condition.
o The Trigger status led notifies you that the instrument has received a trigger signal
o The Waiting Trigger led notifies you when the instrument is waiting for a trigger signal.
o The Trigger too fast led notifies you that the trigger event has been latched, but the
trigger frequency is too high and the instrument cannot be rearmed before the
completion of the previous trigger event. In this situation some trigger events may be
lost.
