Run Mode
The Run Mode defines the sequencer execution flow:

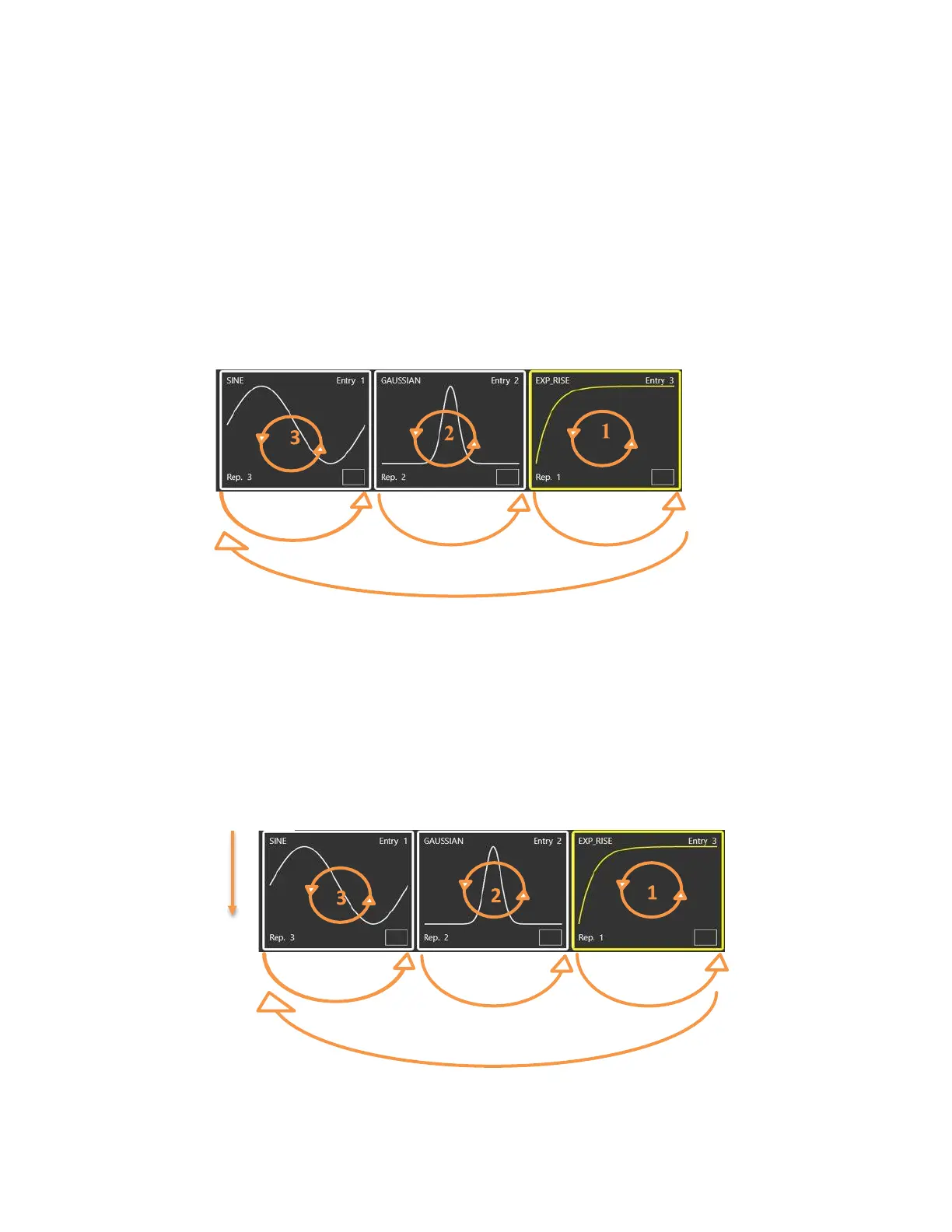

• Continuous: when the RUN/STOP button is pressed each waveform will loop as written in the
entry repetition parameter and the entire sequence is repeated circularly until the user presses
the RUN/STOP button as shown in the picture below:
• Single/Burst: when the RUN/STOP button is pressed the instrument waits for a trigger event.
When the trigger event occurs, each waveform will loop as written in the entry repetition
parameter and the entire sequence will be repeated circularly many times as written in the
Burst Count[N] parameter. If you set Burst Count[N]=1 the instrument is in Single mode and the
sequence will be repeated only once.
