Model 670C Berkeley Nucleonics Corp. 57 of 96
Repetitions Complete,
Go To Entry 3
Repeat
10 times
Output Waveform
Jump If Timer
event
occurs:
Jump to Next
Entry
(Entry 2)

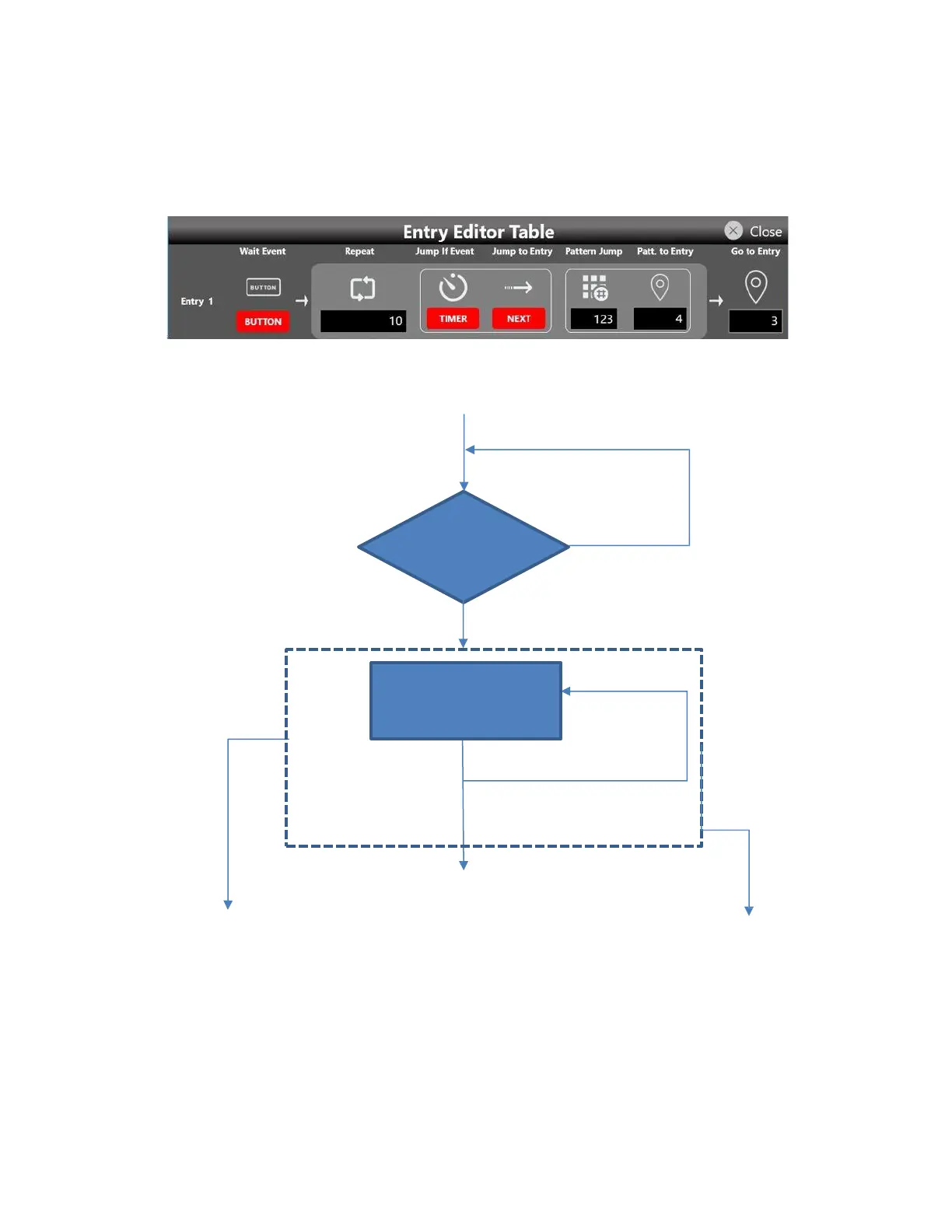

As example this table entry can be represented by a flow chart in the following way:
Entry 1 .
Wait Event = Button,
Repeat = 10,
Jump If Event = Timer, Jump to Entry = Next
Pattern Jump = 123, Patt.To Entry = 4,
Go To Entry = 3.
Entry 1.
Wait Event
Happened
No
Yes
If Pattern Jump
(123) occurs:
Jump to Entry 4
Entry 4.
Entry 3.
Entry 2.
