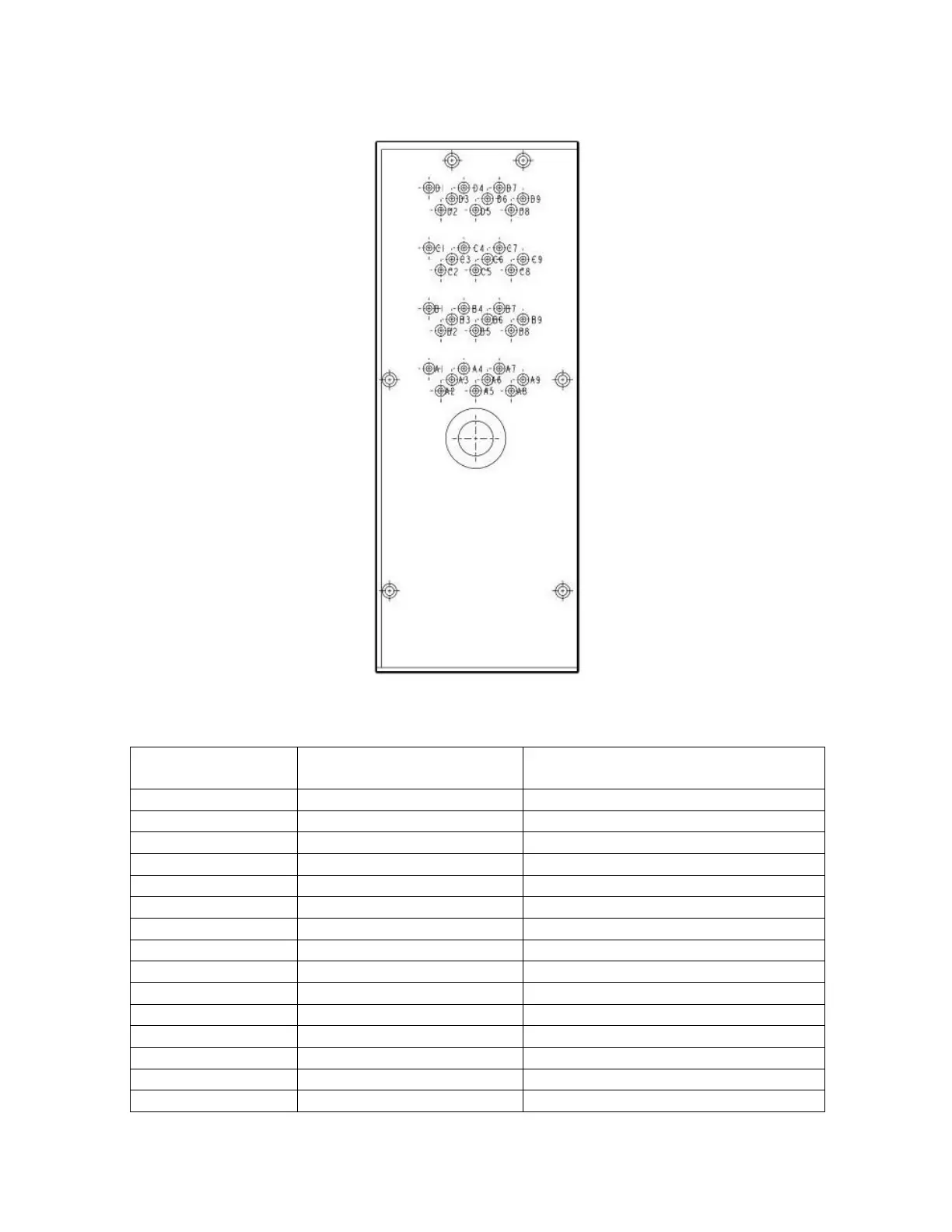

Mini-SAS HD connector pinout
Mini-SAS HD connector
Assigned signal
AT-LVDS-SMA8
Mini SAS HD to 16 SMA cable (8 LVDS output)
A1
+12Vcc
NA
A2
+12Vcc
NA
A3
GND
SMA Ground
A4
DO7_P
DO 7_P
A5
DO7_N
DO 7_P
A6
GND
NA
A7
DO0_P
DO 0_P
A8
DO0_N
DO 0_N
A9
GND
SMA Ground
B1
CS1 (RESERVED). Do not connect.
NA
B2
+12Vcc
NA
B3
GND
SMA Ground
B4
DO6_P
DO 6_P
B5
DO6_N
DO 6_N
B6
GND
SMA Ground
