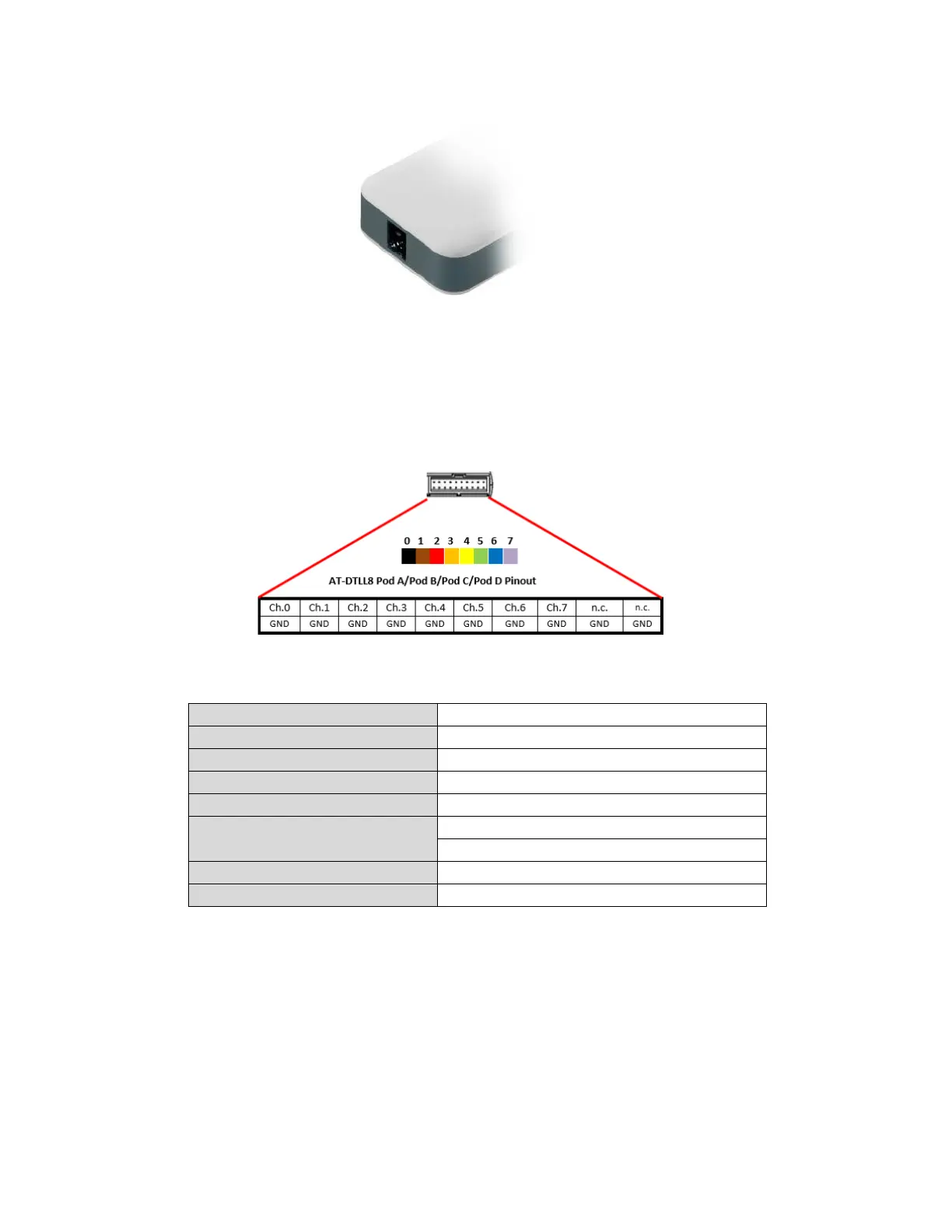

Important Note: the Model 670C does not include the AT-DTLL that must be bought separately. Below
the description of the TTL signal connector is provided.
Output connector
20 position 2.54 mm 2 Row IDC Header
Output electrical standard
LVTTL
Output impedance
50Ω nominal
Output voltage
0.8V to 3.8V programmable (same for all channels)
Maximum Update Rate
125Mbps@0.8V and 400Mbps@3.6V
Dimensions
Input Connector
W 52 mm – H 22 mm – D 76 mm
Proprietary standard
Cable Length
1 meter
Cable Type
Proprietary
